Installation Procedure

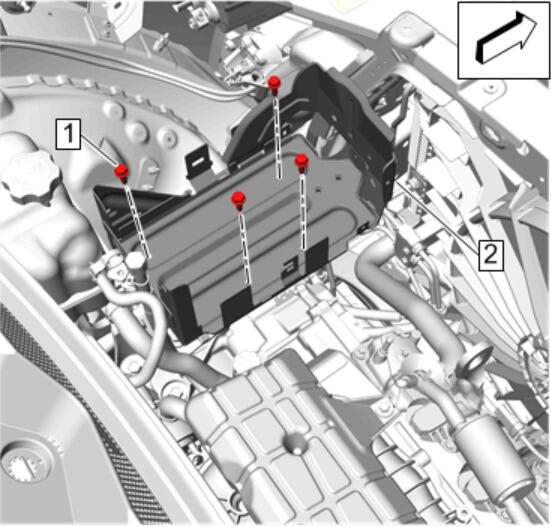

  1. GM4733671Courtesy of GENERAL MOTORS COMPANY

    Battery Tray (2) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Tray Mounting Bolt (1) - Install and tighten [4x] 22 N.m (16 lb ft)

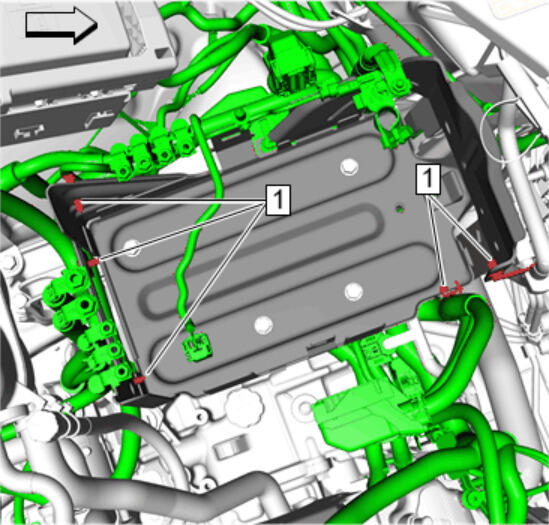

  3. GM4733654Courtesy of GENERAL MOTORS COMPANY

    Retainer (1)@Battery Tray - Engage [5x]

  4. GM4733231Courtesy of GENERAL MOTORS COMPANY

    Battery (1) - Install - Battery Replacement

  5. GM4704723Courtesy of GENERAL MOTORS COMPANY

    Transmission Control Module Bracket (1) - Install - Transmission Control Module Bracket Replacement
