Removal Procedure

  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection (KL9)
  2. Remove the engine control module bracket. Engine Control Module Bracket Replacement

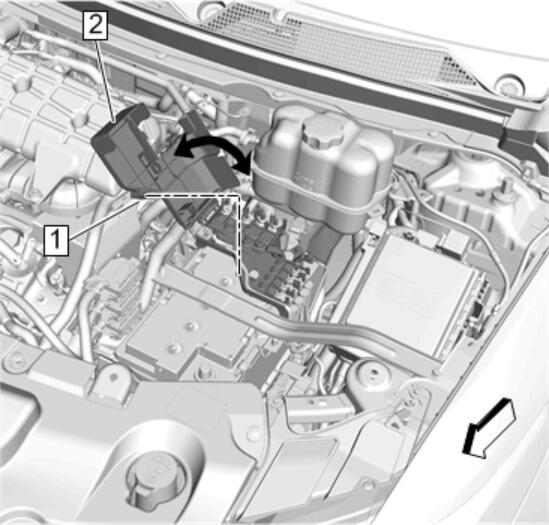

  3. GM4733188Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Disengage

  4. Fuse Block Cover (2) - Open

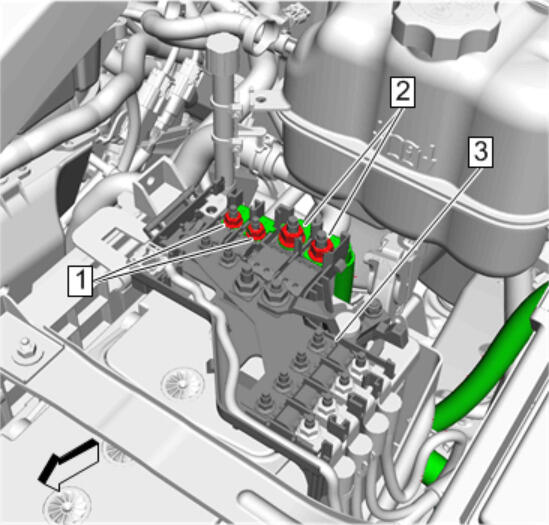

  5. GM4729044Courtesy of GENERAL MOTORS COMPANY

    Fuse Block Nut (1)@Battery Fuse Block (3) - Remove [2x]

  6. Fuse Block Nut (2)@Battery Fuse Block (3) - Remove [2x]

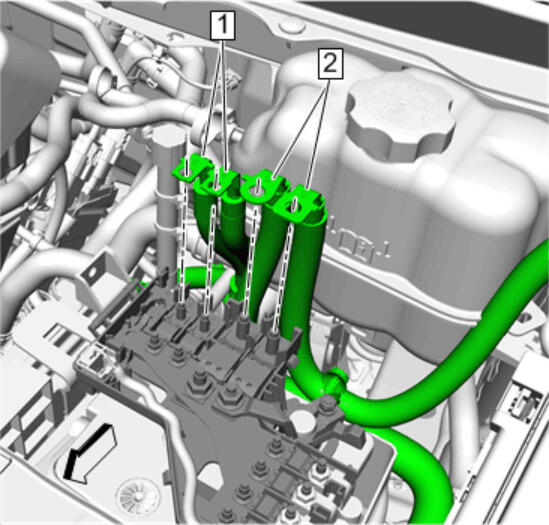

  7. GM4728733Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable (1) - Remove [2x]

  8. Battery Positive Cable (2) - Remove [2x]

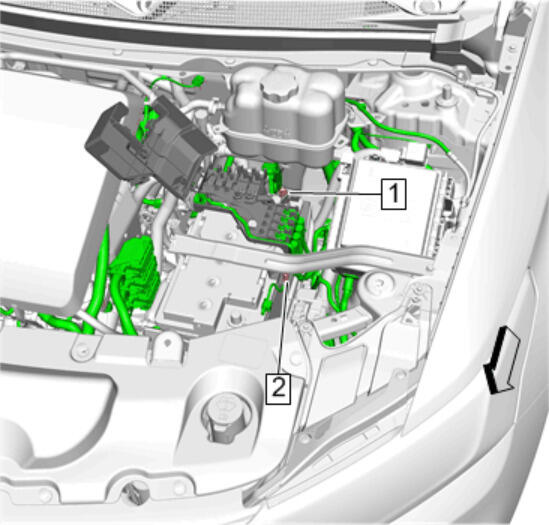

  9. GM4733193Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Post Clamp Nut (1) - Loosen

  10. Retainer (2) - Disengage

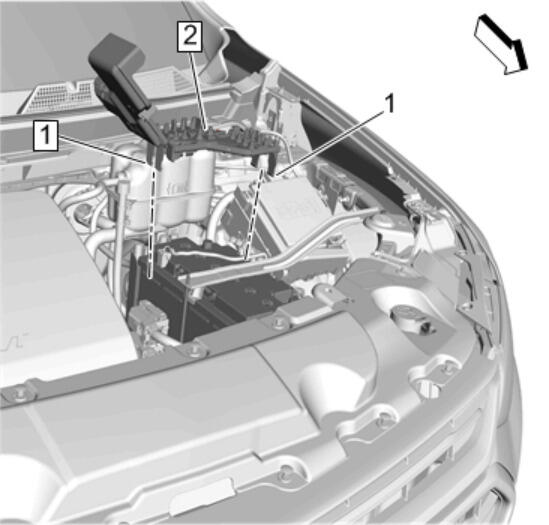

  11. GM4733206Courtesy of GENERAL MOTORS COMPANY

    Retaining Tab (1) - Disengage [2x]

  12. Fuse Block (2) - Reposition away

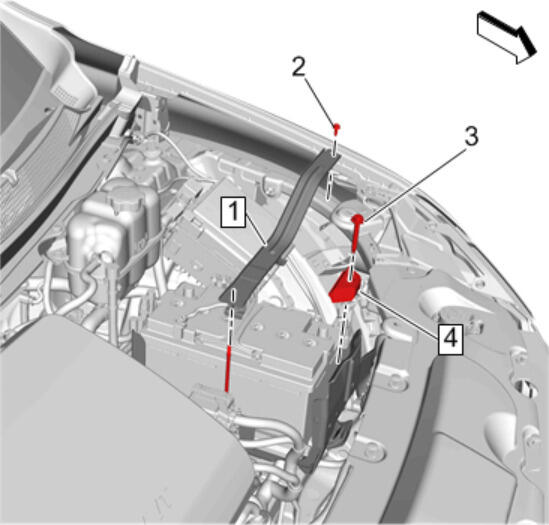

  13. GM4733223Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Retainer Bolt (2) - Remove

  14. Battery Hold Down Retainer (1) - Remove
  15. Battery Hold Down Bolt (3) - Remove
  16. Battery Hold Down Retainer (4) - Remove

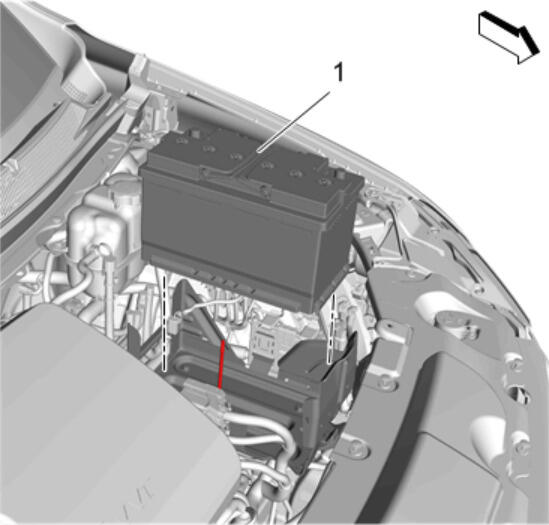

  17. GM4733231Courtesy of GENERAL MOTORS COMPANY

    Battery (1) - Remove
