Installation Procedure

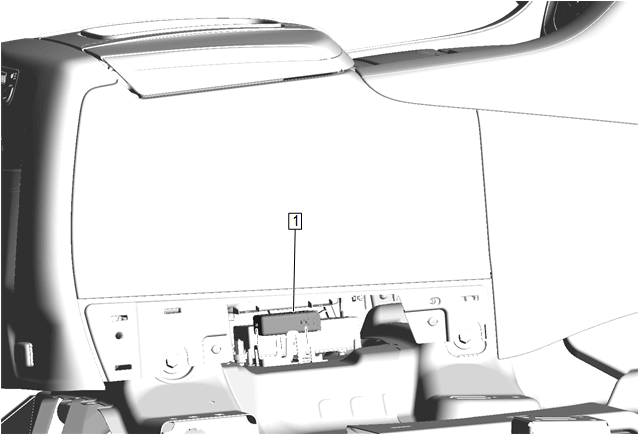

  1. GM5207624Courtesy of GENERAL MOTORS COMPANY

    UHF Short Range Low Energy Remote Control Access Transceiver (1) - Install

  2. Connect and position the wiring harness.

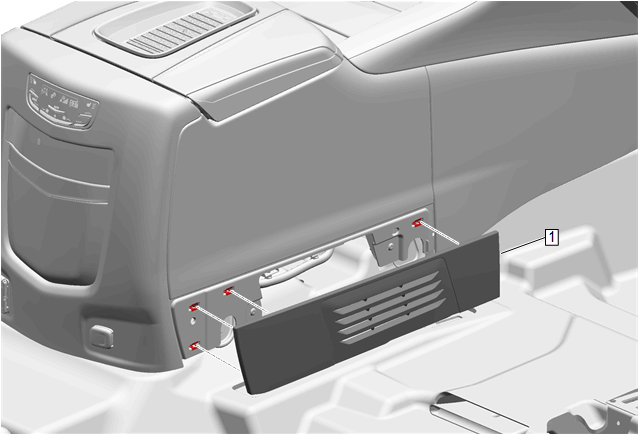

  3. GM5207623Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Side Trim Panel Vent (1) - Install

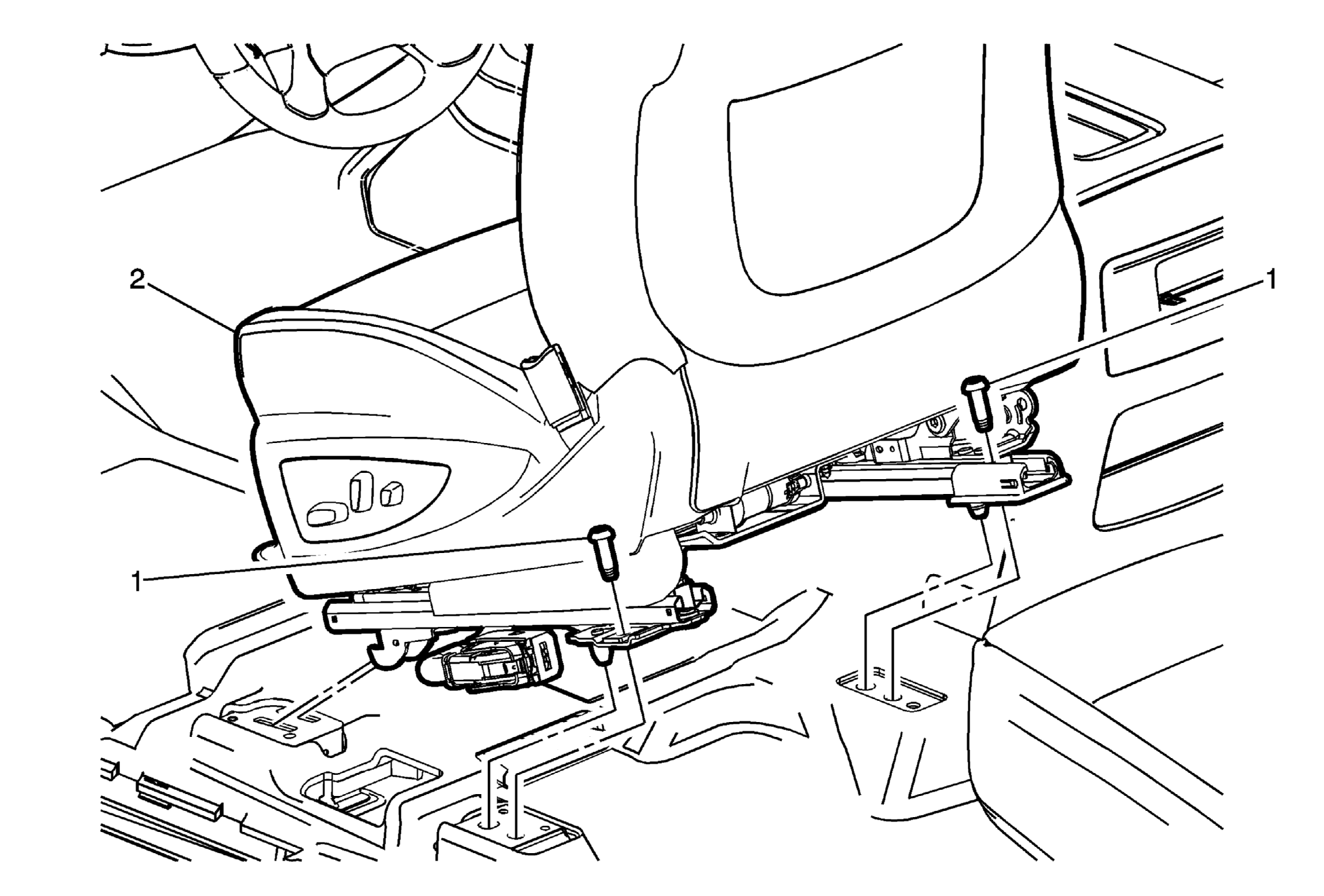

  4. GM3257023Courtesy of GENERAL MOTORS COMPANY

    Passenger Seat (2) - Install - Front Seat Removal and Installation
