Steering Wheel Replacement

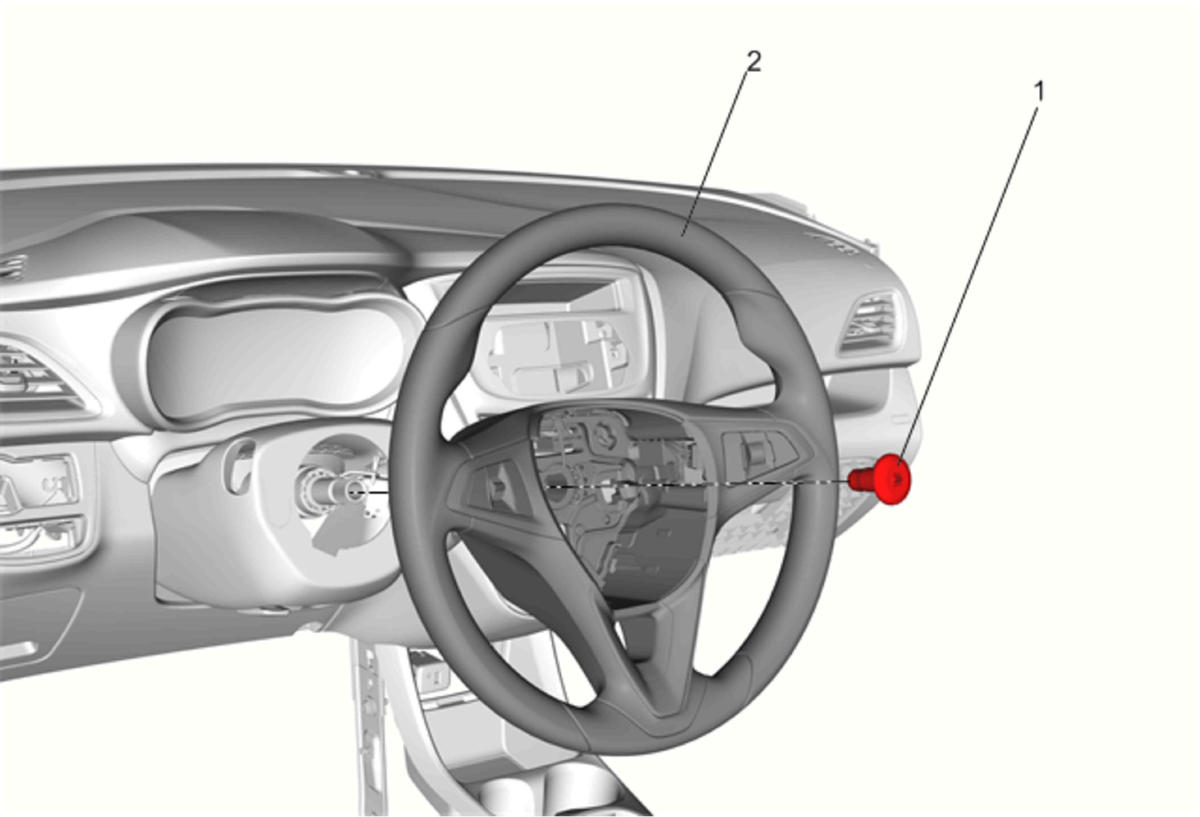

GM4055603Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

When performing service on or near the SIR components or the SIR wiring, the SIR system must be disabled. Failure to observe the correct procedure could cause deployment of the SIR components. Serious injury can occur. Failure to observe the correct procedure could also result in unnecessary SIR system repairs.

WARNING:

When replacing either a steering wheel or driver airbag, it is mandatory that both components are sourced from the same country. Parts from different countries are not interchangeable and may cause a malfunction of the air bag system causing personal injury.

NOTE:

Refer to Safety Regulations for Steering Systems .

Preliminary Procedure Remove the steering wheel inflatable restraint module. Refer to Airbag Steering Wheel Module Replacement .
1 Steering Wheel Bolt
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Discard the bolt.
  2. Clean the adjacent bolt threads.
  3. Ensure the new bolt has locking agent applied to the threads. If locking agent is not present, apply locking agent to the bolt threads. Refer to Adhesives, Fluids, Lubricants, and Sealers .
  4. Install new bolt.

Tighten
45 N. m (33 lb ft)
2 Steering Wheel

Procedure

  1. Disconnect any electrical connectors as necessary.
  2. Loosen the steering wheel bolt until 2 to 3 threads are left engaged.
  3. Wiggle the steering wheel until the steering wheel disengages completely.
  4. Remove the steering wheel.
  5. Transfer any parts as necessary.
