Driver Information Display Replacement (BYOM)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

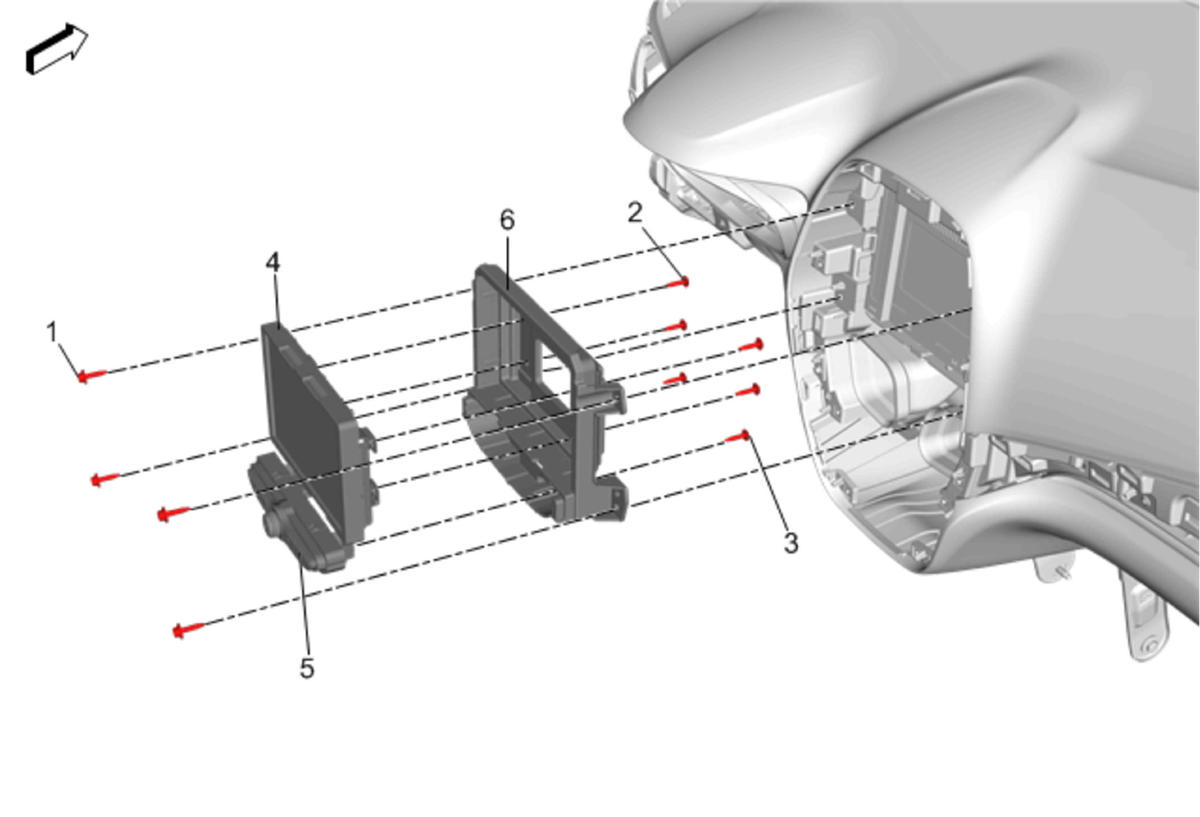

Fig 1: Driver Information Display (BYOM)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower trim plate applique. Refer to Instrument Panel Lower Trim Plate Applique Replacement .
1	Driver Information Display Assembly Bolt (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Display Screw (Qty: 4)
3	Control Screw (Qty: 2)
4	BYOM Display Procedure Disconnect the electrical connections. Refer to Control Module References for programming and setup information.
5	BYOM Control Procedure Disconnect the electrical connections. Refer to Control Module References for programming and setup information.
6	BYOM Bracket
