Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Caliper, Piston, Piston Dust Boot Seal And Piston Seal Components
Courtesy of GENERAL MOTORS COMPANY

Lubricate the new piston seal (3) with the brake fluid from a clean, sealed brake fluid container. Refer to Brake System Specifications for the recommended brake fluid.
Install the lubricated, new piston seal (3) into the caliper bore.
Apply a thin coat of brake fluid from a clean, sealed brake fluid container onto the outer surface area of the caliper piston (2). Refer to Brake System Specifications for the recommended brake fluid
Install the bottom half of the caliper piston (2) into the caliper bore.

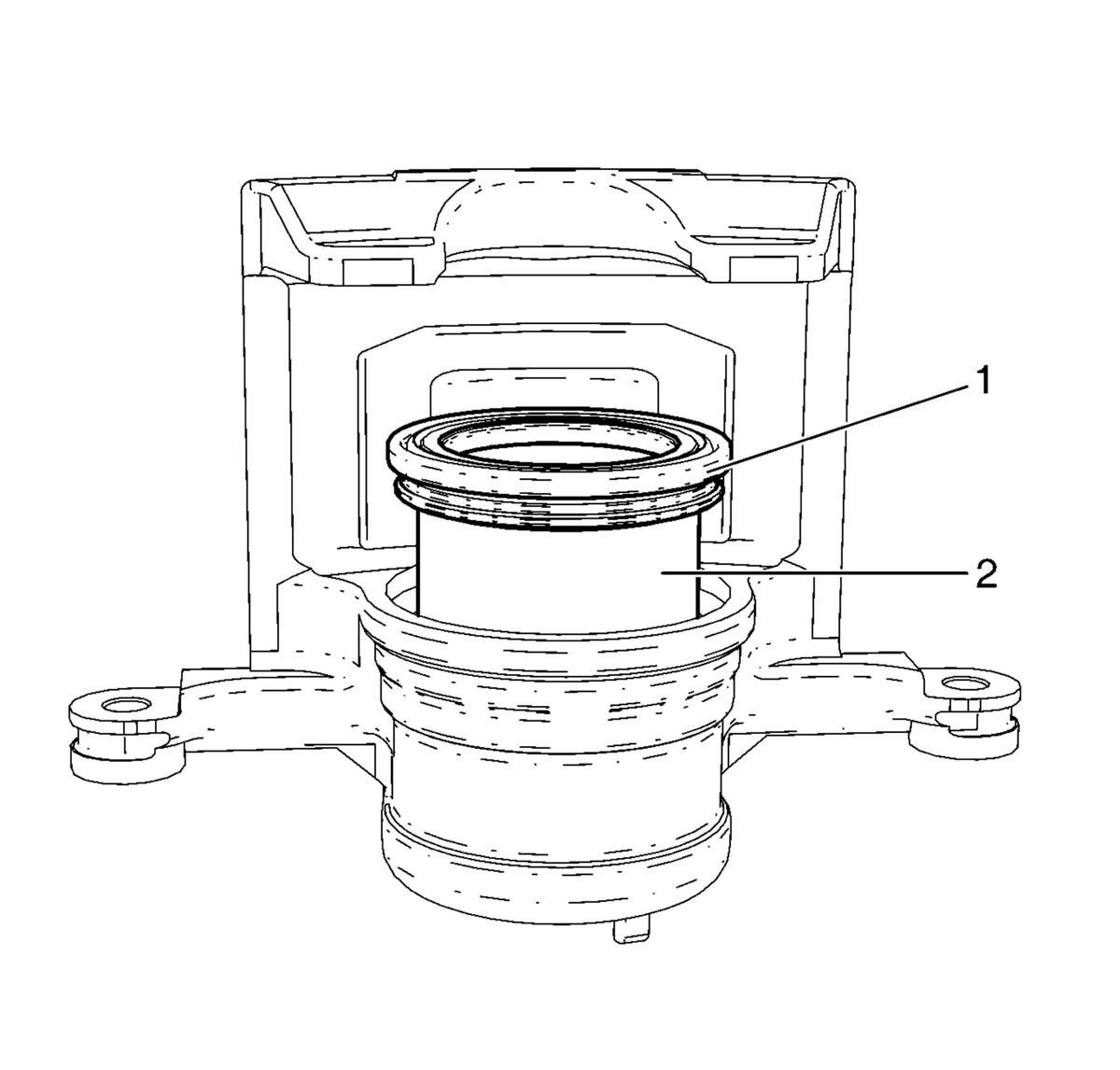

Courtesy of GENERAL MOTORS COMPANY

Install the new piston dust boot seal (1) over the caliper piston (2).
Compress the caliper piston (2) to the bottom of the caliper bore.
Fully seat the piston dust boot seal (1) into caliper counter-bore.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Install the brake bleeder valve (1) to the caliper and tighten to 8.5 N.m (75 lb in).
Install the brake bleeder valve cap (1).
Install the brake caliper to the vehicle. Refer to Front Brake Caliper Replacement .
