B18 Battery Current Sensor
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
|
|

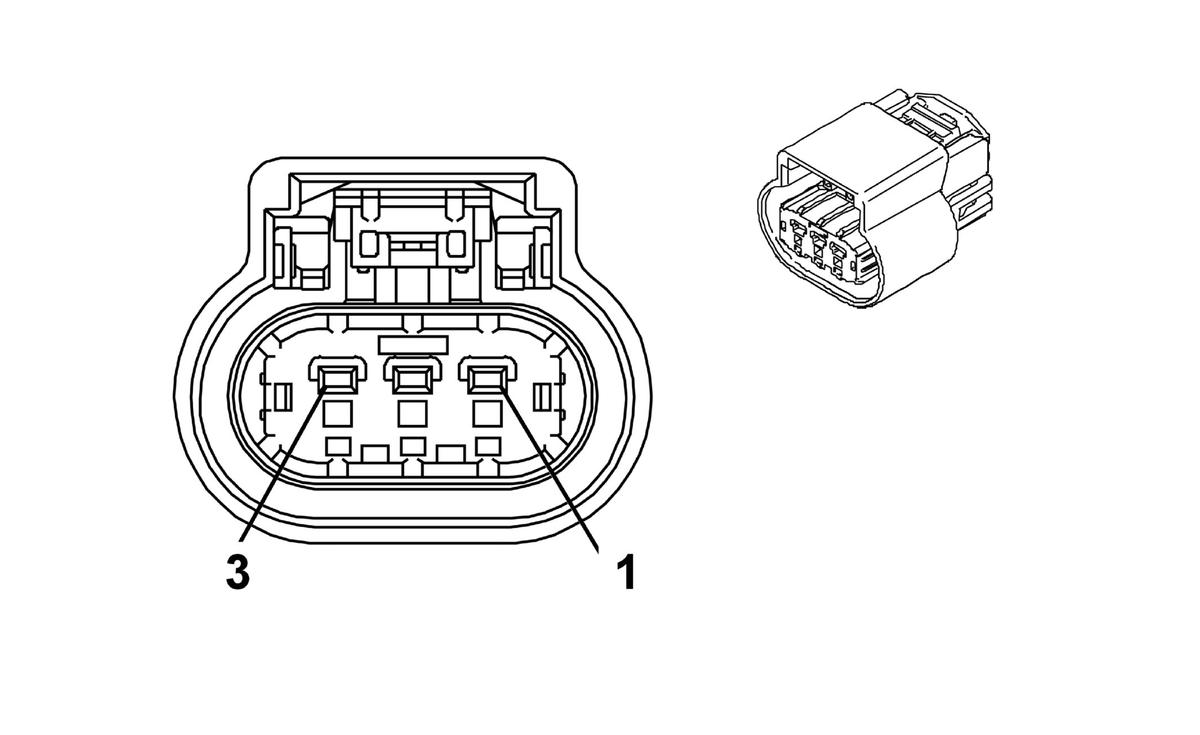

Connector Part Information
- Harness Type: Body
- OEM Connector: MG644167-5
- Service Connector: 19331327
- Description: 3-Way F 150 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BU/VT |
5076 |
Current Sensor Control |
I |
- |
| 2 |
0.35 |
BK/VT |
5077 |
Current Sensor Low Reference |
I |
- |
| 3 |
0.35 |
WH/YE |
5075 |
Current Sensor Signal |
I |
- |
