B14A Transmission Output Shaft Speed Sensor
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
|
|

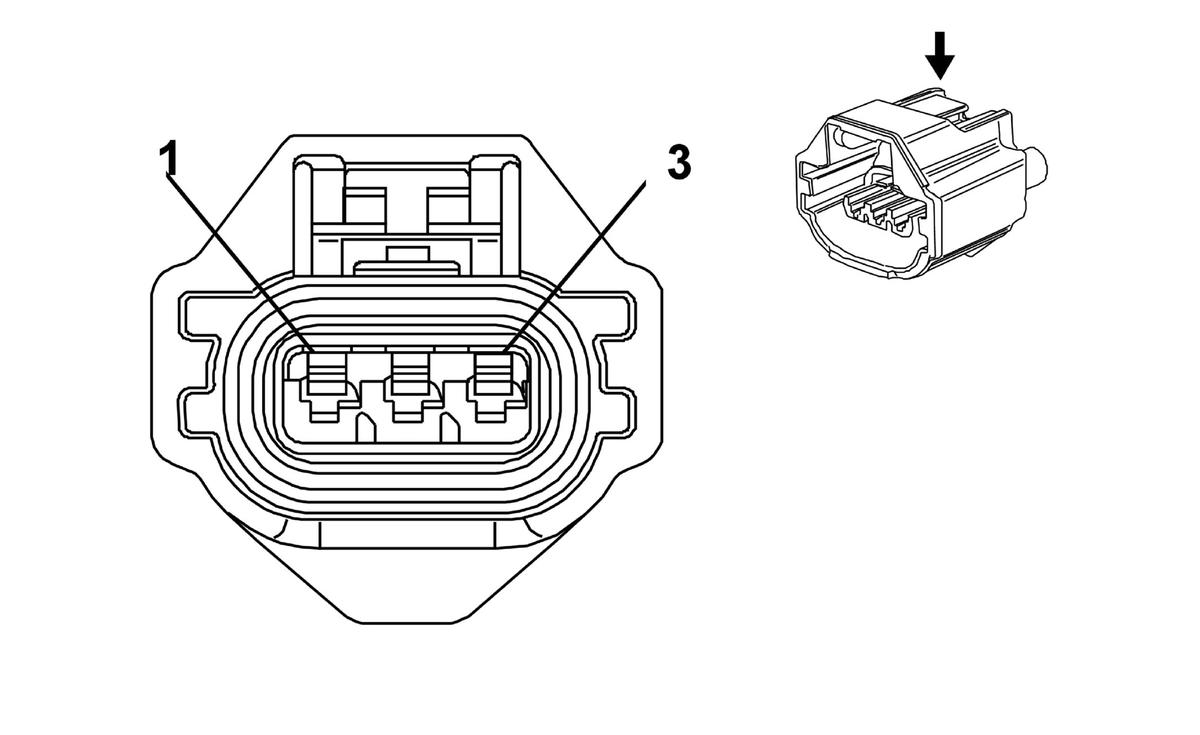

Connector Part Information
- Harness Type: Engine
- OEM Connector: 7183-7874-30
- Service Connector: 19329939
- Description: 3-Way F 090 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK/YE |
407 |
Sensor Low Reference |
I |
- |
| 2 |
0.5 |
VT/WH |
821 |
Vehicle Speed Sensor Signal |
I |
- |
| 3 |
0.5 |
GY/BK |
3096 |
Output Speed (Digital) Sensor 5V Reference |
I |
- |
