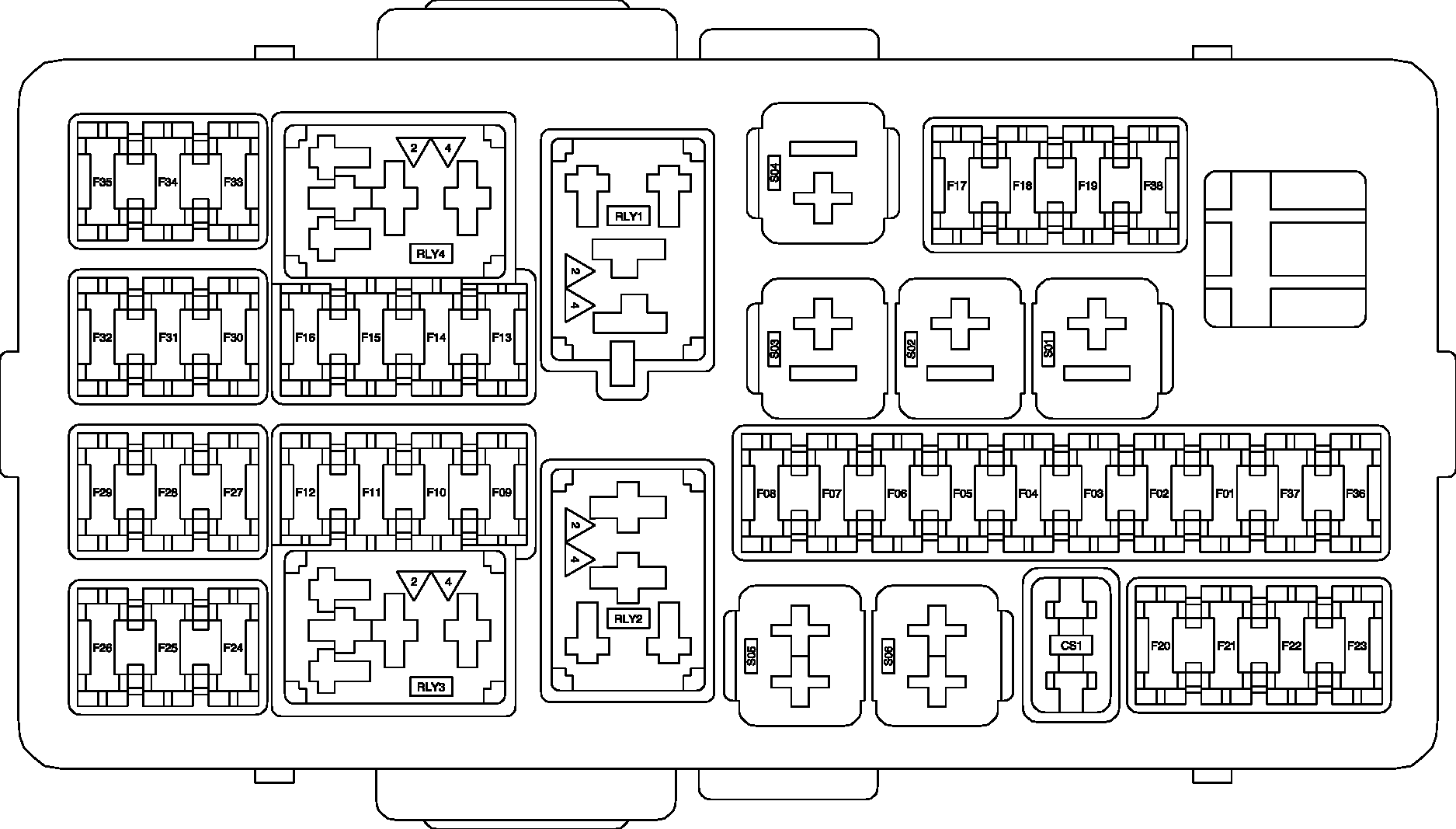

X51A Fuse Block - Instrument Panel Top View

Courtesy of GENERAL MOTORS COMPANY

Usage Table

No.	Device Label Name	Device Assigned Name	Rating	Description
Fuses
1	-	F1DA	15A	K9 Body Control Module: E6 Center High Mounted Stop Lamp E7L License Plate Lamp - Left E7R License Plate Lamp - Right S48A Multifunction Switch - Instrument Panel K5 Rear Defogger Relay (C41/C60) K20 Engine Control Module K33 HVAC Control Module
2	-	F2DA	15A	K9 Body Control Module: KR42L Daytime Running Lamp Relay - Left KR42R Daytime Running Lamp Relay - Right KR74 Ignition Run Relay M93 Key Capture Solenoid Actuator
3	-	F3DA	15A	K9 Body Control Module: E2RF Side Marker Lamp - Right Front E2RR Side Marker Lamp - Right Rear E4AD Daytime Running Lamp - Right E4K Park Lamp - Right Front E5AB Tail/Stop Lamp - Right E29LR Fog Lamp - Left Rear (T79)
4	-	F4DA	15A	K9 Body Control Module: E2LF Side Marker Lamp - Left Front E4AC Park/Daytime Running Lamp - Left E4J Park Lamp - Left Front E5AB Tail/Stop Lamp - Right
5	-	F5DA	15A	K9 Body Control Module: A9A Outside Rearview Mirror - Driver (DL2) A9B Outside Rearview Mirror - Passenger (DL2) E2LR Side Marker Lamp - Left Rear E4P Park/Turn Signal Lamp - Right E4Y Turn Signal Repeater Lamp - Left (SBV) E4Z Turn Signal Repeater Lamp - Right (SBV) E4AD Park/Daytime Running Lamp - Right (SBW) E4RF Turn Signal Lamp - Right Front E5AA Tail/Stop Lamp - Left KR6 Rear Window Washer Pump Relay KR7 Rear Wiper Relay KR11 Windshield Washer Pump Relay KR76A Retained Accessory Power Relay 1 KR95A Liftgate Unlatch Relay KR104A Battery Saver Relay 1 S38 Ignition Mode Switch
6	-	F6DA	15A	K9 Body Control Module: B87 Rearview Camera E37F Dome/Reading Lamps - Front E5A Backup Lamp - Left E5B Backup Lamp - Right K20 Engine Control Module K33 HVAC Control Module K71 Transmission Control Module (MR8) KR42L Daytime Running Lamp Relay - Left (SBV) KR42R Daytime Running Lamp Relay - Right (SBV) KR73 Ignition Main Relay S26 Hazard Warning Switch S48A Multifunction Switch - Instrument Panel
7	-	F7DA	15A	K9 Body Control Module: A9A Outside Rearview Mirror - Driver (DL2) A9B Outside Rearview Mirror - Passenger (DL2) E4AC Park/Daytime Running Lamp - Left (SBW) E4Y Turn Signal Repeater Lamp - Left E4LF Turn Signal Lamp - Left Front E4N Park/Turn Signal Lamp - Left E4LR Turn Signal Lamp - Left Rear KR42L Daytime Running Lamp Relay - Left (SBM/SBW) KR42R Daytime Running Lamp Relay - Right (SBM/SBW)
8	-	F8DA	30A	K9 Body Control Module: M14D Door Lock Actuator - Driver M14P Door Lock Actuator - Passenger M14LR Door Lock Actuator - Left Rear M14RR Door Lock Actuator - Right Rear
9	-	F9DA	10A	K36 Inflatable Restraint Sensing and Diagnostic Module
10	-	F10DA	15A	K60 Steering Column Lock Module (N06)
11	-	F11DA	7.5A	X84 Data Link Connector
12	-	F12DA	7.5A	K182 Parking Assist Control Module
13	-	F13DA	10A	B174W Frontview Camera - Windshield (UFL)
14	-	F14DA	2 A	S39 Ignition Switch (-AVJ)
15	-	F15DA	7.5A	K84 Keyless Entry Control Module (AVJ)
16	-	F16DA	30A	K8 Blower Motor Control Module (C68)
17	-	F17DA	15A	S32 Seat Heating Switch (KA1)
18	-	F18DA	10A	K33 HVAC Control Module
19	-	F19DA	7.5A	Not Used
20	-	F20DA	5A	Not Used
21	-	F21DA	20A	E32 Cigarette Lighter Receptacle
22	-	F22DA	5A	K61 Sunroof Control Module (CF5)
23	-	F23DA	10A	K56 Serial Data Gateway Module
24	-	F24DA	5A	P16 Instrument Cluster
25	-	F25DA	15A	K33 HVAC Control Module A26 HVAC Controls (C68)
26	-	F26DA	10A	K73 Telematics Communication Interface Control Module (UE1)
27	-	F27DA	15A	Not Used
28	-	F28DA	15A	A11 Radio (IP0 IP1 or IOR) X83 Auxiliary Audio Input (IP0 IP1 or IOR)
29	-	F29DA	15A	Not Used
30	-	F30DA	7.5A	Not Used
31	-	F31DA	10A	Not Used
32	-	F32DA	5A	Not Used
33	-	F33DA	5A	S30 Headlamp Switch (TR6)
34	-	F34DA	5A	P43 Collision Alert Indicators (UEU)
35	-	F35DA	5A	P16 Instrument Cluster
36	-	F36DA	2A	X85 Steering Wheel Air Bag Coil S70L Steering Wheel Controls Switch - Left S70R Steering Wheel Controls Switch - Right
37	-	F37DA	2A	Not Used
38	-	F38DA	15A	Not Used
39	-	F39DA	30A	M74D Window Motor - Driver (AXG)
40	-	F40DA	30A	KR104A Battery Saver Relay 1
41	-	F41DA	-	Not Used
42	-	F42DA	40A	M8 Blower Motor
43	-	F43DA	25A	S79D Window Switch - Driver (A33/AXG) S79P Window Switch - Passenger (A33/AXG)
44	-	F44DA	25A	S79D Window Switch - Driver (AXG/A33)
45	-	F45DA	-	Not Used
Relays
1	-	KR76A Retained Accessory Power Relay 1	-	F21DA F22DA (CF5) F43DA (AXG/A55/A66) F44DA (AXG/A33) Fuses KR76B (AVJ) Relay
2	-	KR76B Retained Accessory Power Relay 2	-	Fuse F21DA (AVJ) F22DA (CF5) F43DA (AXG/A55/A66) F44DA (AXG/A33) Fuses
3	-	KR74 Ignition Run Relay	-	F17DA F18DA F19DA F42DA Fuses
4	-	KR104A Battery Saver Relay 1	-	F24DA F25DA F26DA F28DA F31DA Fuses
