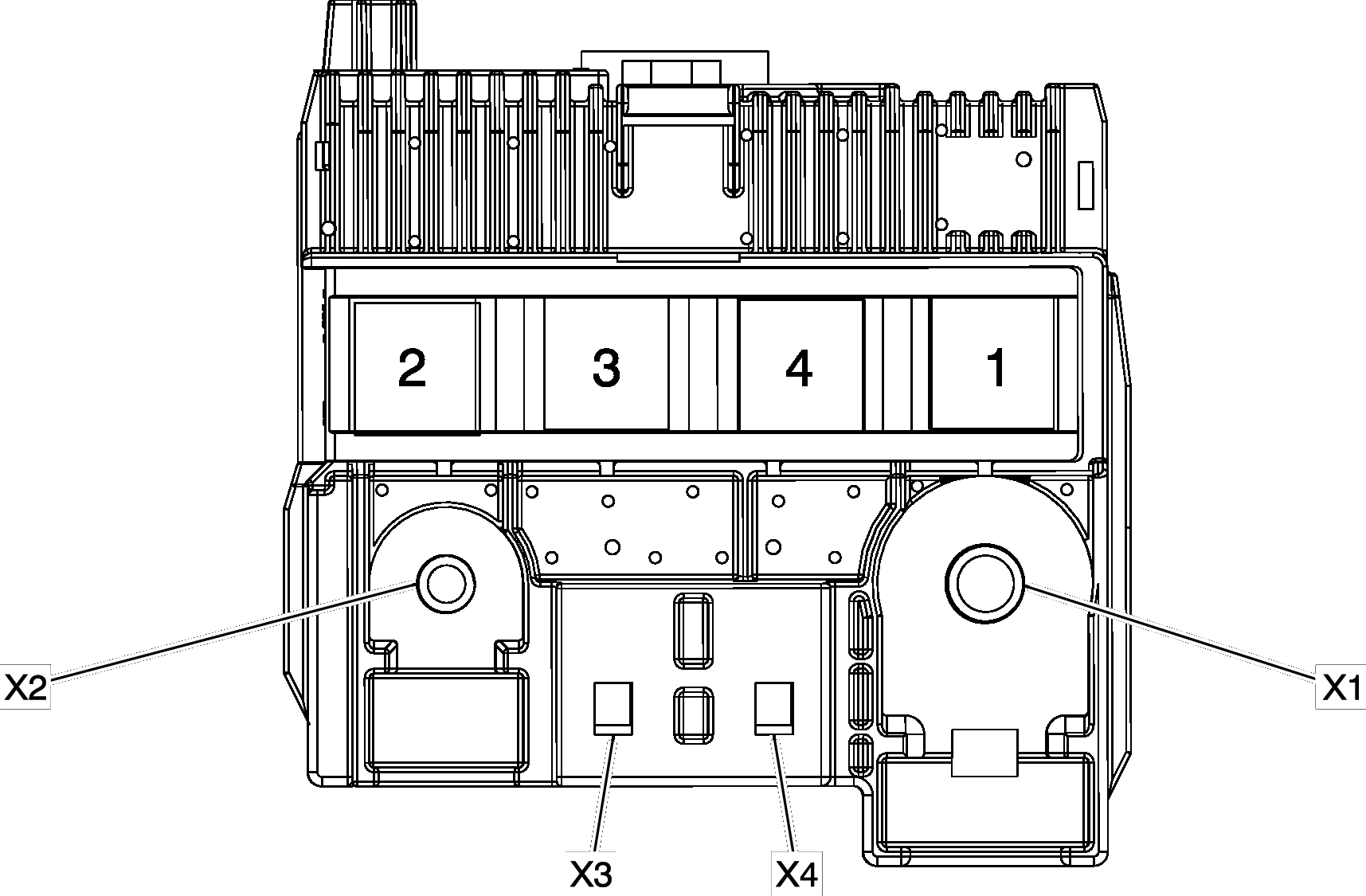

X50D Fuse Block - Battery Top View
 Courtesy of GENERAL MOTORS COMPANY
|
X50D Fuse Block - Battery Usage
| No. |
Device Label Name |
Device Assigned Name |
Rating |
Description |
| Fuses |
| F1 |
- |
F1UD |
400 A |
G13 Generator, M64 Starter Motor |
| F2 |
- |
F2UD |
150 A |
X50A Fuse Block - Underhood |
| F3 |
- |
F3UD |
100 A |
X51A Fuse Block - Instrument Panel |
| F4 |
- |
F4UD |
80 A |
K43 Power Steering Control Module |
