Rear Side Door Lock Replacement

Courtesy of GENERAL MOTORS COMPANY

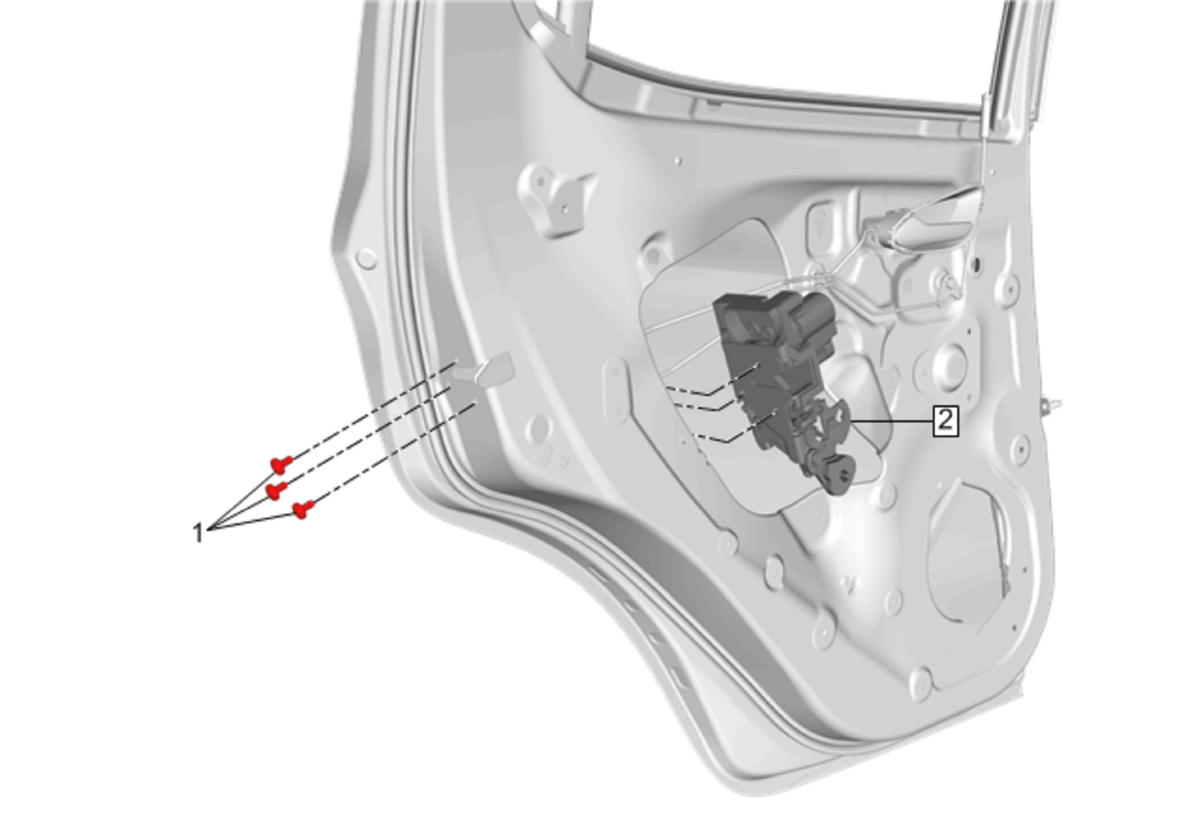

Callout	Component Name
Preliminary Procedures Remove the rear side door trim. Refer to Rear Side Door Trim Replacement . Remove the water deflector. Disconnect the rear side door outside handle rod, inside handle rod, locking rod bellcrank rod.
1	Rear Side Door Lock Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in)
2	Rear Side Door Lock Assembly Procedure Disconnect the door lock electrical connector.

Callout

Component Name

Preliminary Procedures

Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
Remove the water deflector.
Disconnect the rear side door outside handle rod, inside handle rod, locking rod bellcrank rod.

Rear Side Door Lock Screw (Qty: 3)

CAUTION:

Tighten
8.5 N.m (75 lb in)

Rear Side Door Lock Assembly
Procedure
Disconnect the door lock electrical connector.
