Front Side Door Locking Rod Replacement

Courtesy of GENERAL MOTORS COMPANY

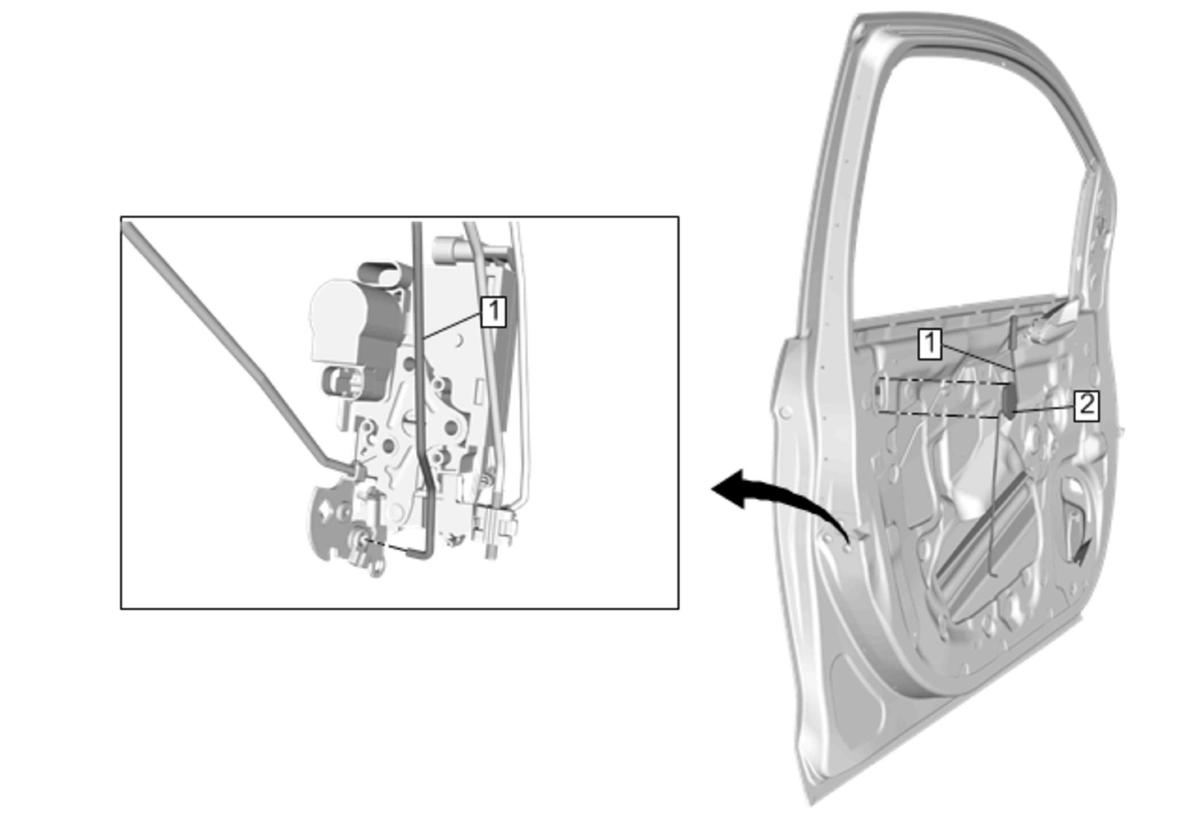

Callout	Component Name
Preliminary Procedures Place the window in the full up position. Remove the front side door trim panel. Refer to Front Side Door Trim Replacement . Remove the water deflector.
1	Front Side Door Lock Rod NOTE: Inspect the door lock system for proper operation before installing the door trim.
2	Front Side Door Locking Rod Grommet

Callout

Component Name

Preliminary Procedures

Place the window in the full up position.
Remove the front side door trim panel. Refer to Front Side Door Trim Replacement .
Remove the water deflector.

Front Side Door Lock Rod

NOTE:

Inspect the door lock system for proper operation before installing the door trim.

Front Side Door Locking Rod Grommet
