Installation Procedure

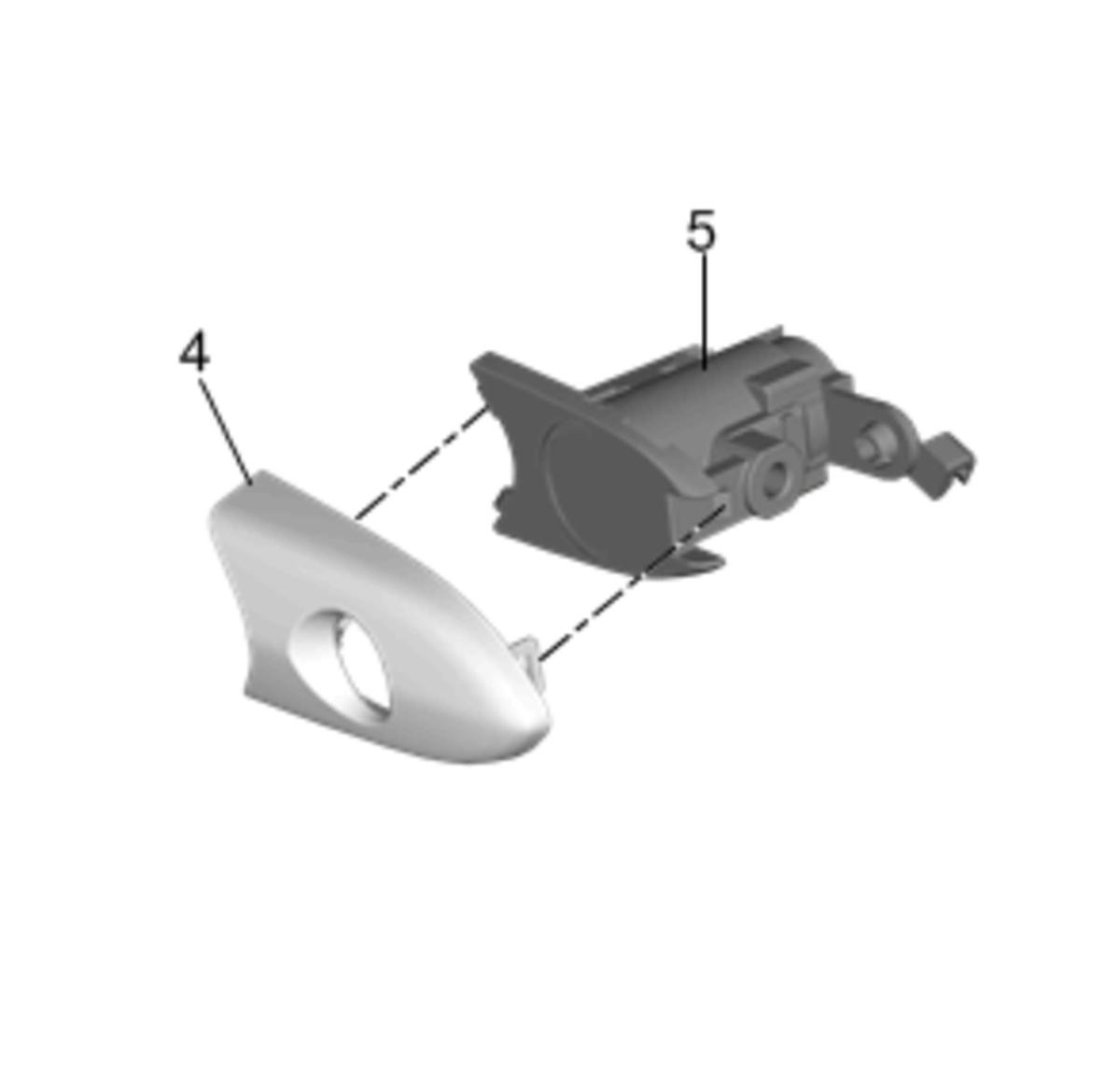

  1. GM4025076Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    If you are installing a new lock cylinder, refer to Front Side Door Lock Cylinder Coding .

    Install the front side door lock cylinder cover (4) to the front side door lock cylinder (5).

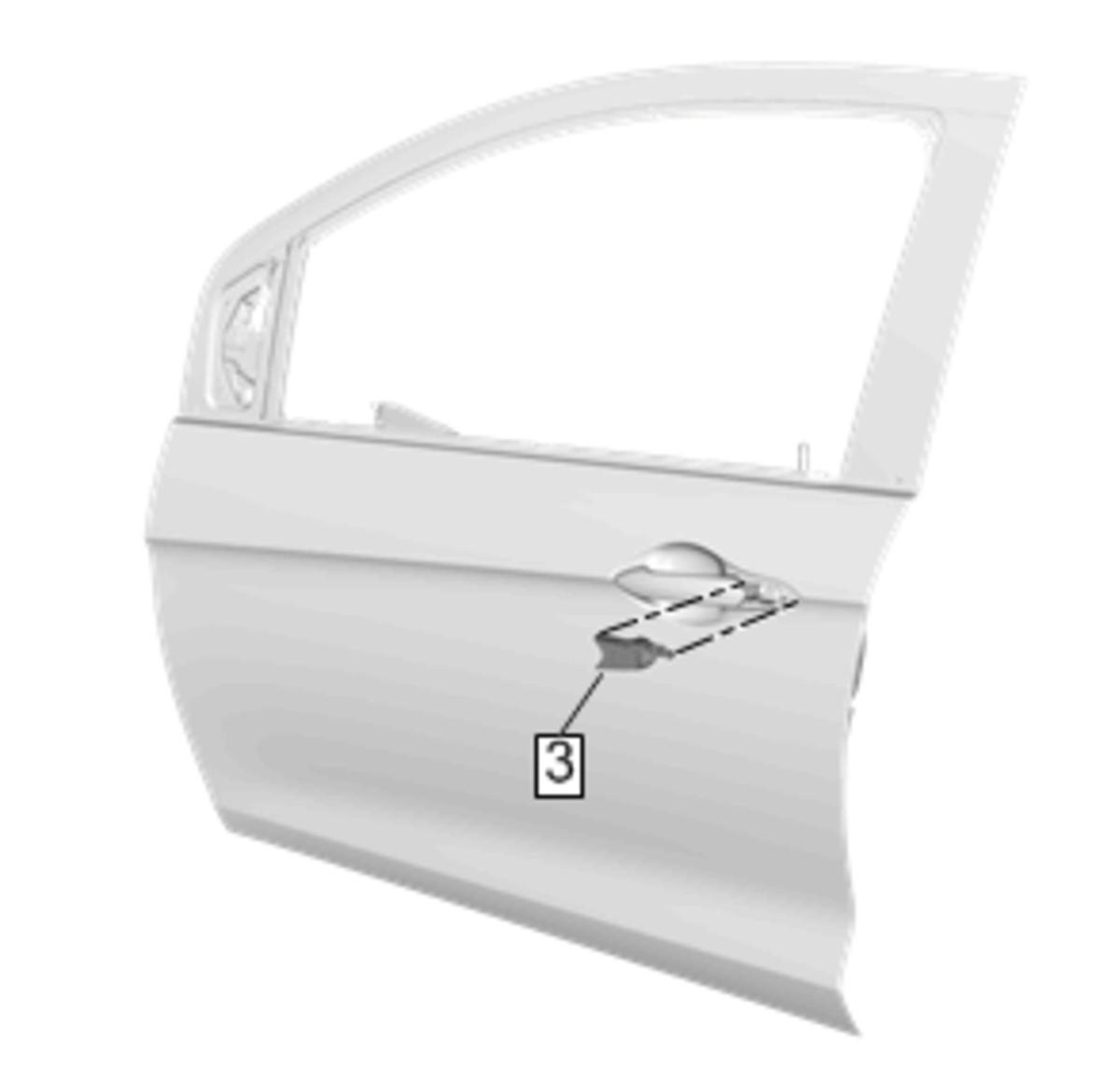

  2. GM4025074Courtesy of GENERAL MOTORS COMPANY

    Install the front side door lock cylinder assembly (3) to the front side door handle.

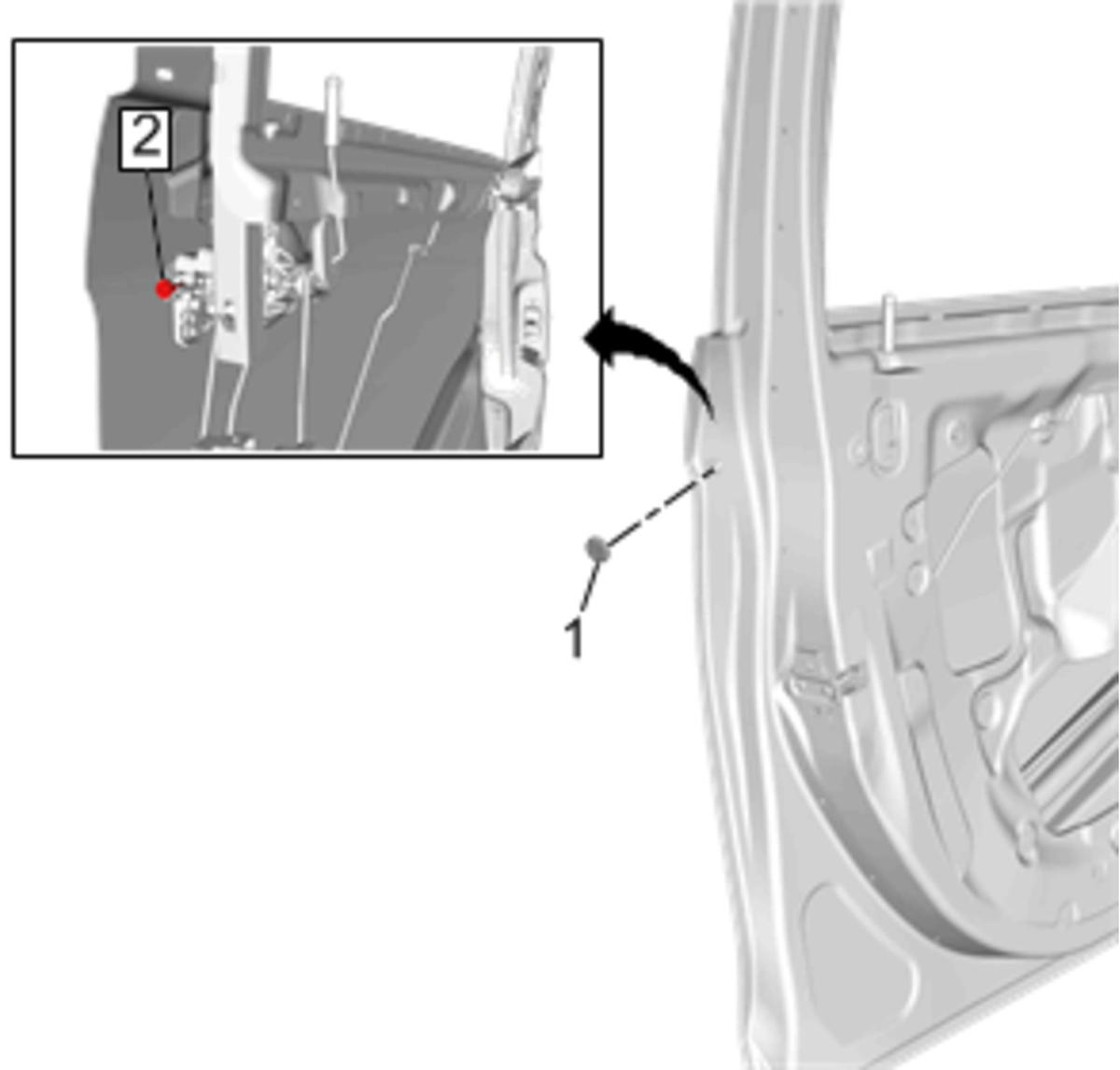

  3. GM4025073Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    NOTE:

    Ensure that the lock cylinder gasket is in place when installing the lock cylinder to the handle.

    Install the front side door lock cylinder screw access plug (1) and front side door lock cylinder clamp screw (2) and tighten to 4.5 N.m (40 lb in).

  4. Install the front side door lock cylinder rod.
  5. Install the water deflector.
  6. Install the front side door trim. Refer to Front Side Door Trim Replacement .
  7. Inspect the lock cylinder for proper operation.
