Front Side Door Inside Handle Rod Replacement

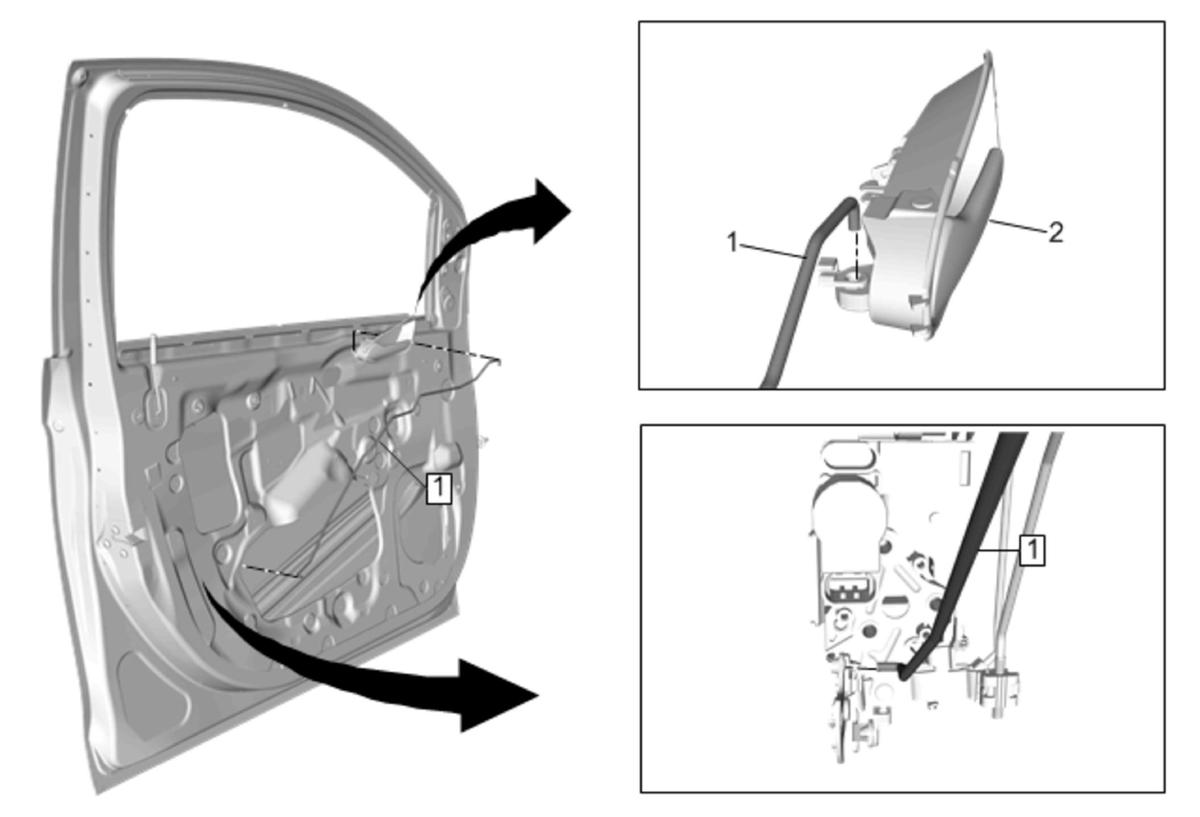

GM4025082Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Place the window in the full up position.
  2. Remove the front side door trim. Refer to Front Side Door Trim Replacement .
  3. Remove the water deflector.
1 Front Side Door Inside Handle Rod
NOTE:

Inspect the door lock system for proper operation before installing the door trim.

2 Front Side Door Inside Handle
