Front Side Door Inside Handle Replacement

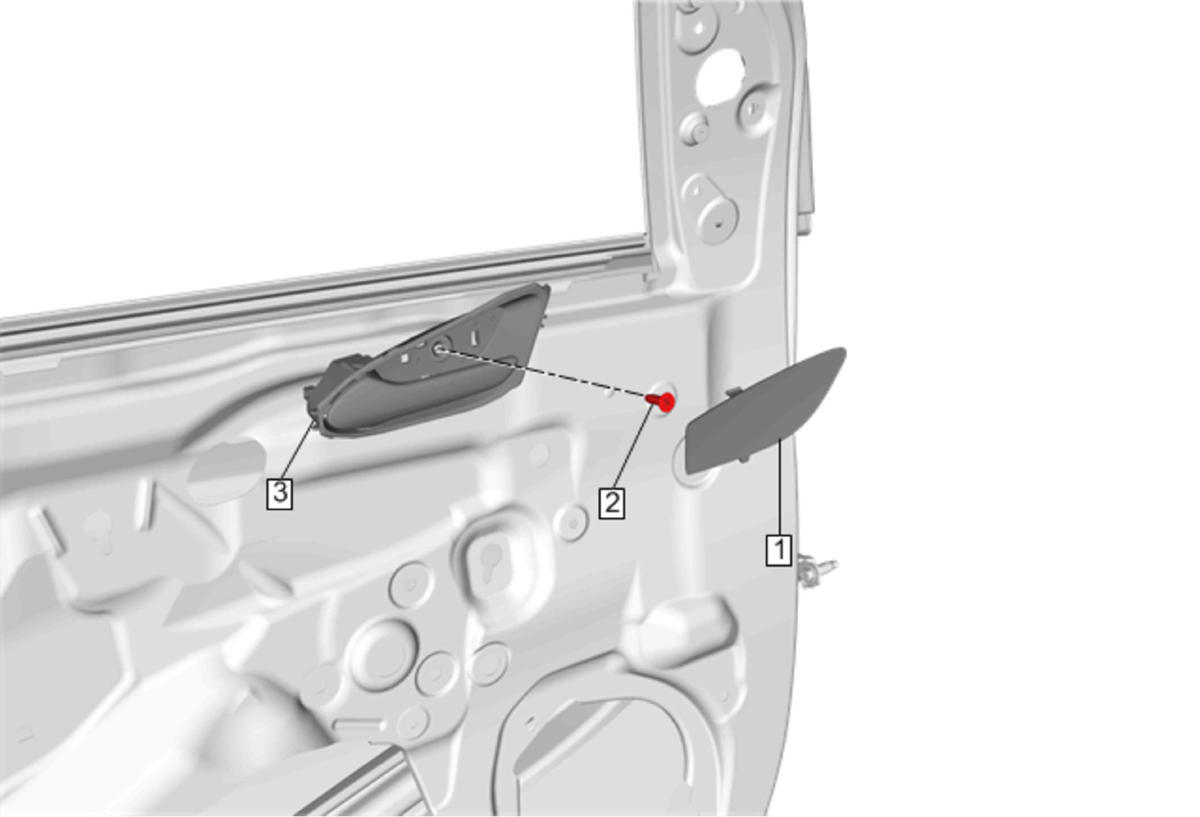

GM4025109Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front side door trim. Refer to Front Side Door Trim Replacement .
  2. Remove the water deflector.
  3. Remove the front side door inside handle rod. Refer to Front Side Door Inside Handle Rod Replacement .
1 Front Side Door Inside Handle Screw Cap
2 Front Side Door Inside Handle Screw (Qty: 1)
CAUTION:

Refer to Fastener Caution .


Tighten
1.5 N.m (13 lb in)
3 Front Side Door Inside Handle
NOTE:

Inspect the proper operation before installing the door trim.
