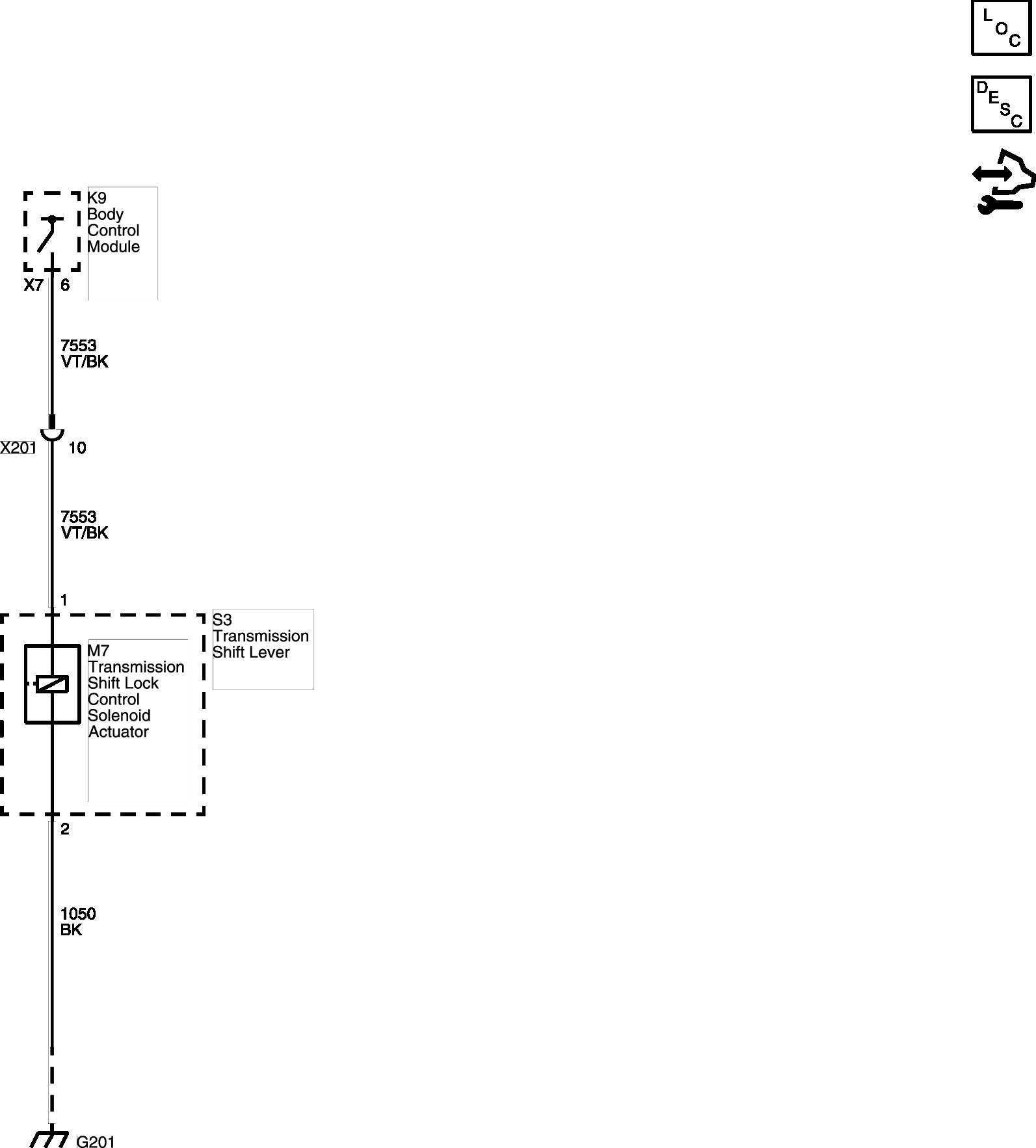

Home >> Chevrolet >> 2019 >> Spark LS, Automatic CVT Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Lock Control >> Schematic Wiring Diagrams >> Shift Lock Control Wiring Schematics >> Shift Lock (MR8)
