Cargo Partition Replacement
WARNING: This page is about a different car, the 2018 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

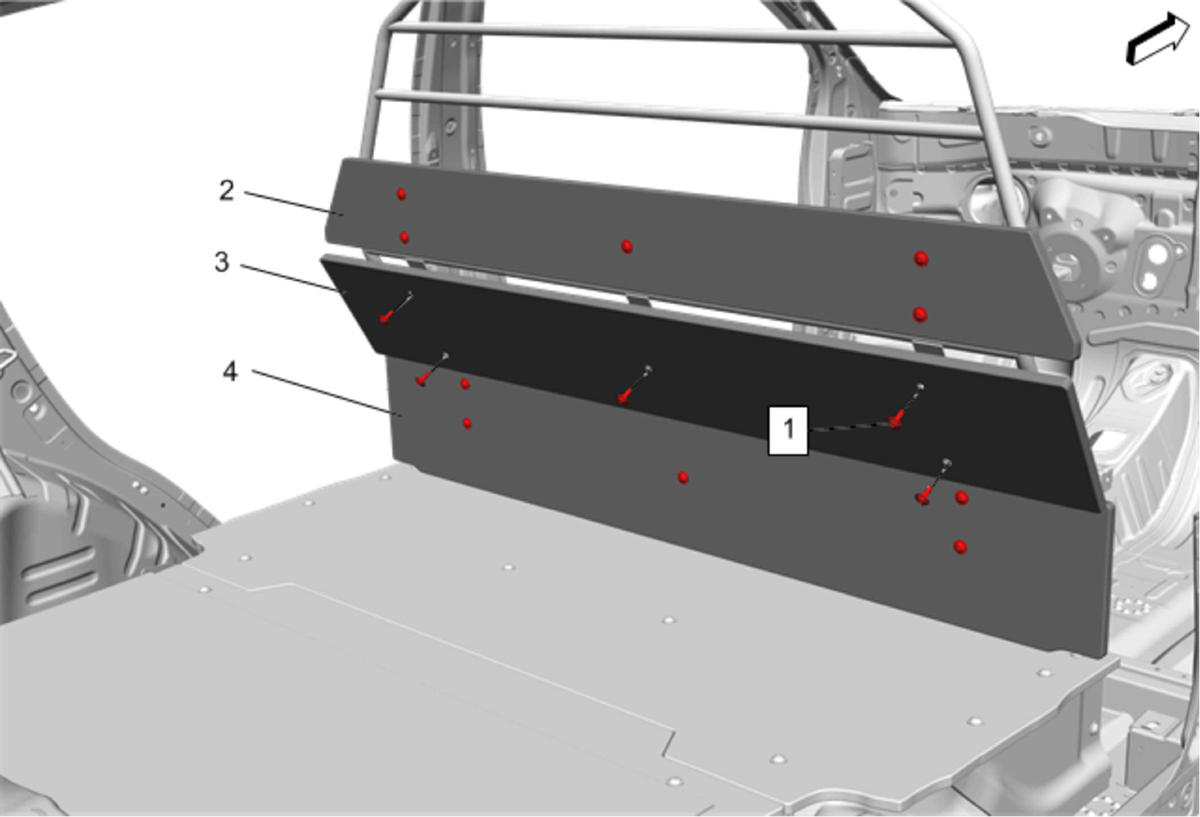

| Callout | Component Name |
|---|---|
| 1 | Cargo Partition Screw (Qty: 15)
CAUTION:
Refer to Fastener Caution . Tighten 7 N.m (62 lb in) |
| 2 | Cargo Partition - Upper |
| 3 | Cargo Partition - Middle |
| 4 | Cargo Partition - Lower |
