Home >> Chevrolet >> 2019 >> Sonic Premier, 4D Hatchback, Standard Trans >> Repair and Diagnosis >> Brakes >> Traction Control >> Antilock Brake System >> Schematic and Routing Diagrams >> Antilock Brake System Wiring Schematics >> Stability Control

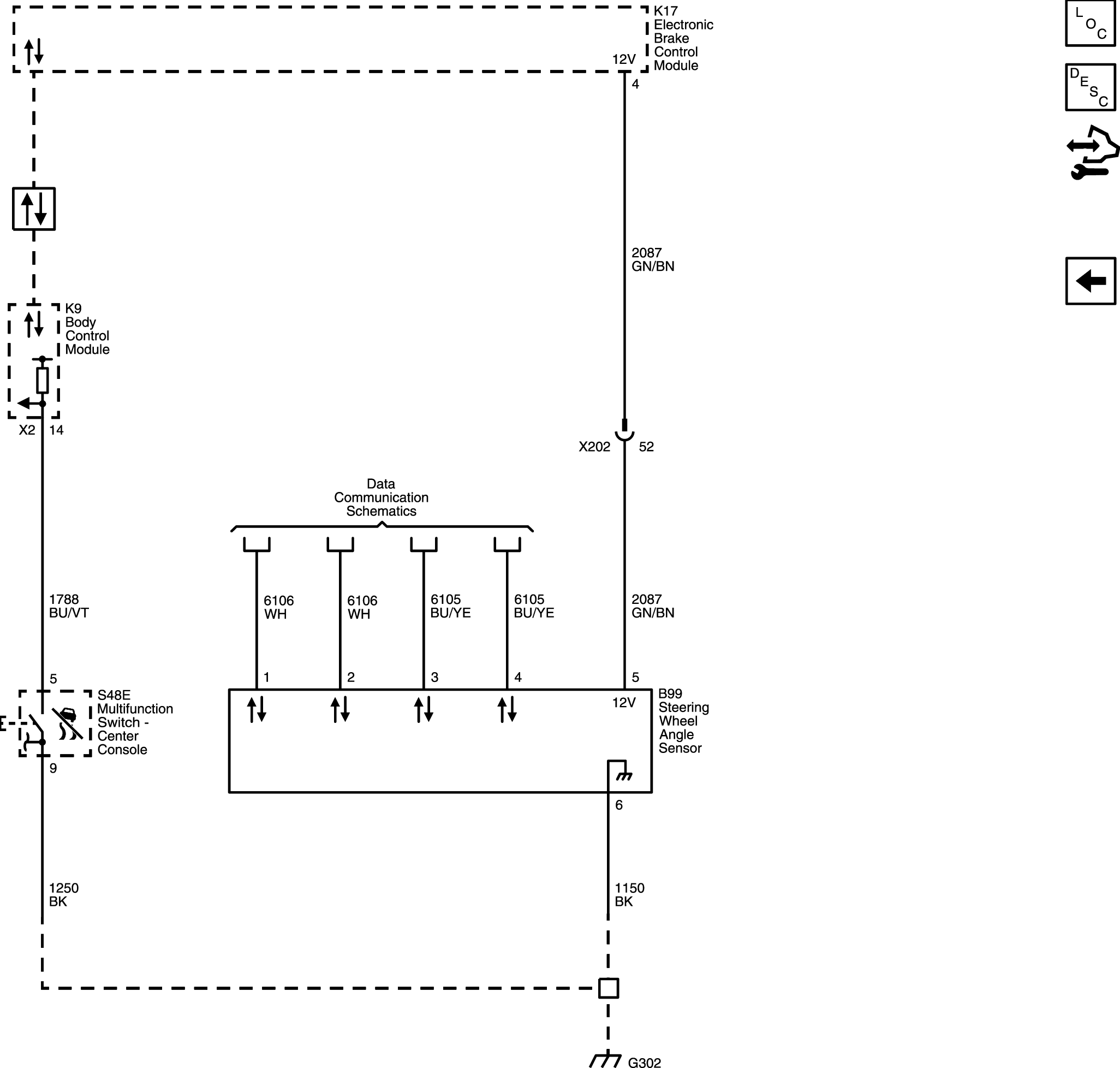

Stability Control

GM4959595Courtesy of GENERAL MOTORS COMPANY
