Turn Signal Switch Bracket Replacement

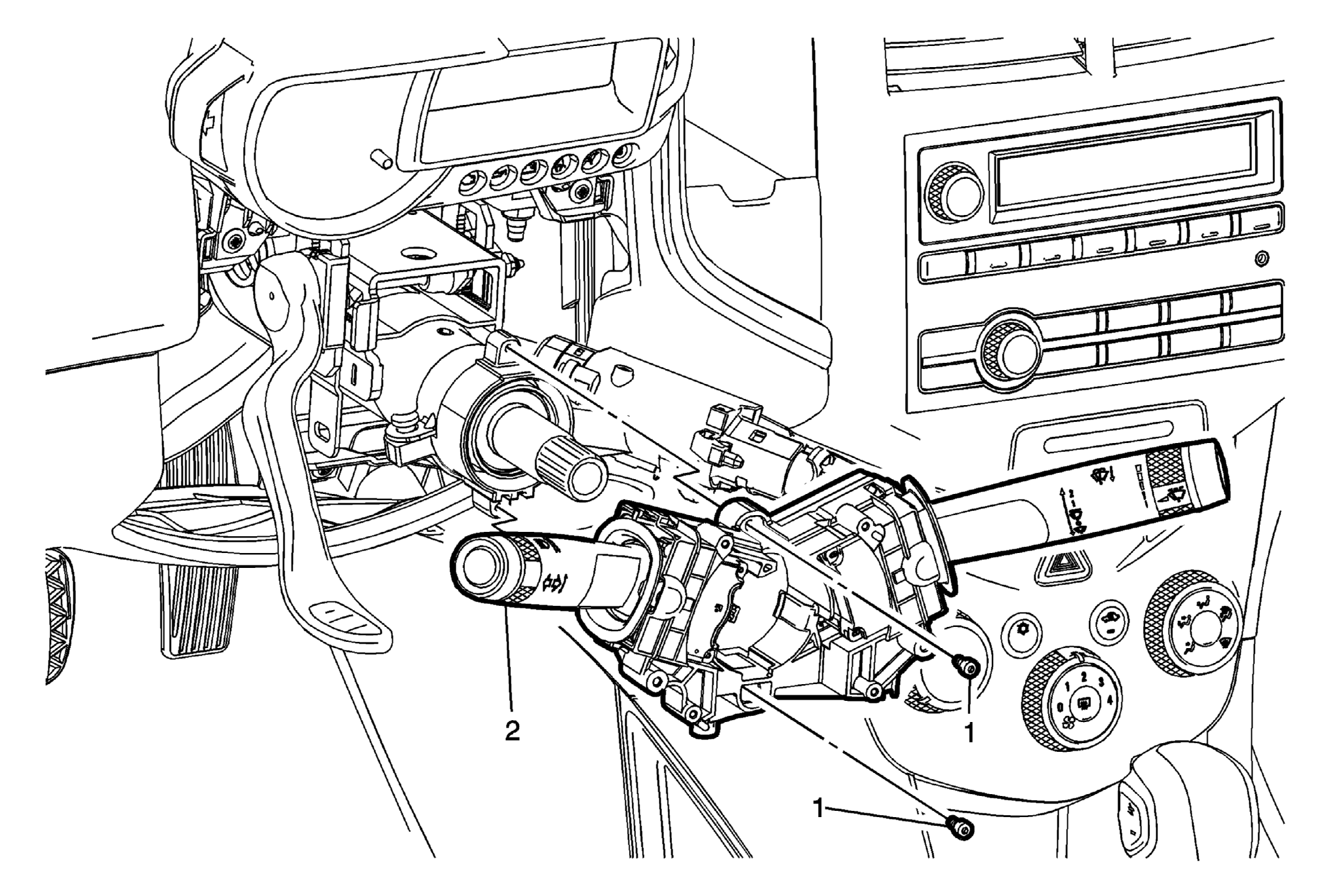

GM2508972Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the inflatable restraint steering wheel module coil. Refer to Steering Wheel Airbag Coil Replacement .
1 Turn Signal Switch Bracket Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Turn Signal Switch Bracket

Procedure

  1. Disconnect any electrical connectors as necessary.
  2. Release the locking tab in order to disconnect the turn signal switch bracket from the steering column.
  3. Transfer components as necessary.
