Intermediate Steering Shaft Replacement

Courtesy of GENERAL MOTORS COMPANY

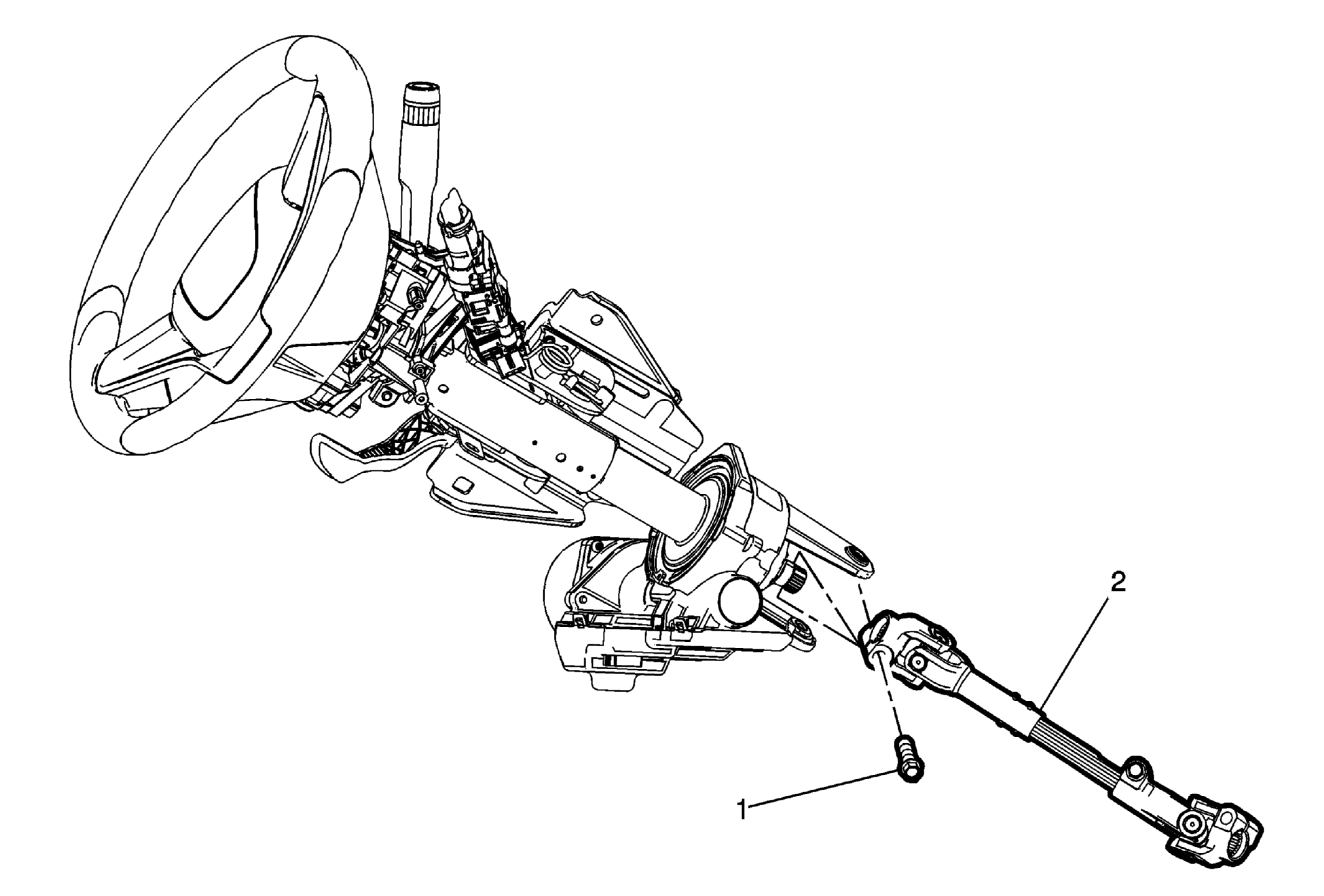

Callout	Component Name
Preliminary Procedure Steering Column Replacement
1	Intermediate Steering Shaft Upper Bolt CAUTION: Refer to Fastener Caution . Tighten 49 N.m (36 lb ft)
2	Intermediate Steering Shaft Procedure Place match marks on the intermediate steering shaft and the steering column shaft to aid in installation. If replacing the steering column or intermediate steering shaft, copy the match marks from the OLD steering column to the NEW steering column. Align the match marks when installing the intermediate steering shaft to the steering column shaft. Center the steering angle sensor. Steering Wheel Angle Sensor Centering NOTE: If the intermediate steering shaft upper universal joint is difficult to separate, insert a wide blade flat screw driver and tap with a hammer to open up the slot as necessary.

Callout

Component Name

Preliminary Procedure
Steering Column Replacement

Intermediate Steering Shaft Upper Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
49 N.m (36 lb ft)

Intermediate Steering Shaft

Procedure

Place match marks on the intermediate steering shaft and the steering column shaft to aid in installation.
If replacing the steering column or intermediate steering shaft, copy the match marks from the OLD steering column to the NEW steering column.
Align the match marks when installing the intermediate steering shaft to the steering column shaft.
Center the steering angle sensor. Steering Wheel Angle Sensor Centering

NOTE:

If the intermediate steering shaft upper universal joint is difficult to separate, insert a wide blade flat screw driver and tap with a hammer to open up the slot as necessary.
