Radio Antenna Base Replacement
WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

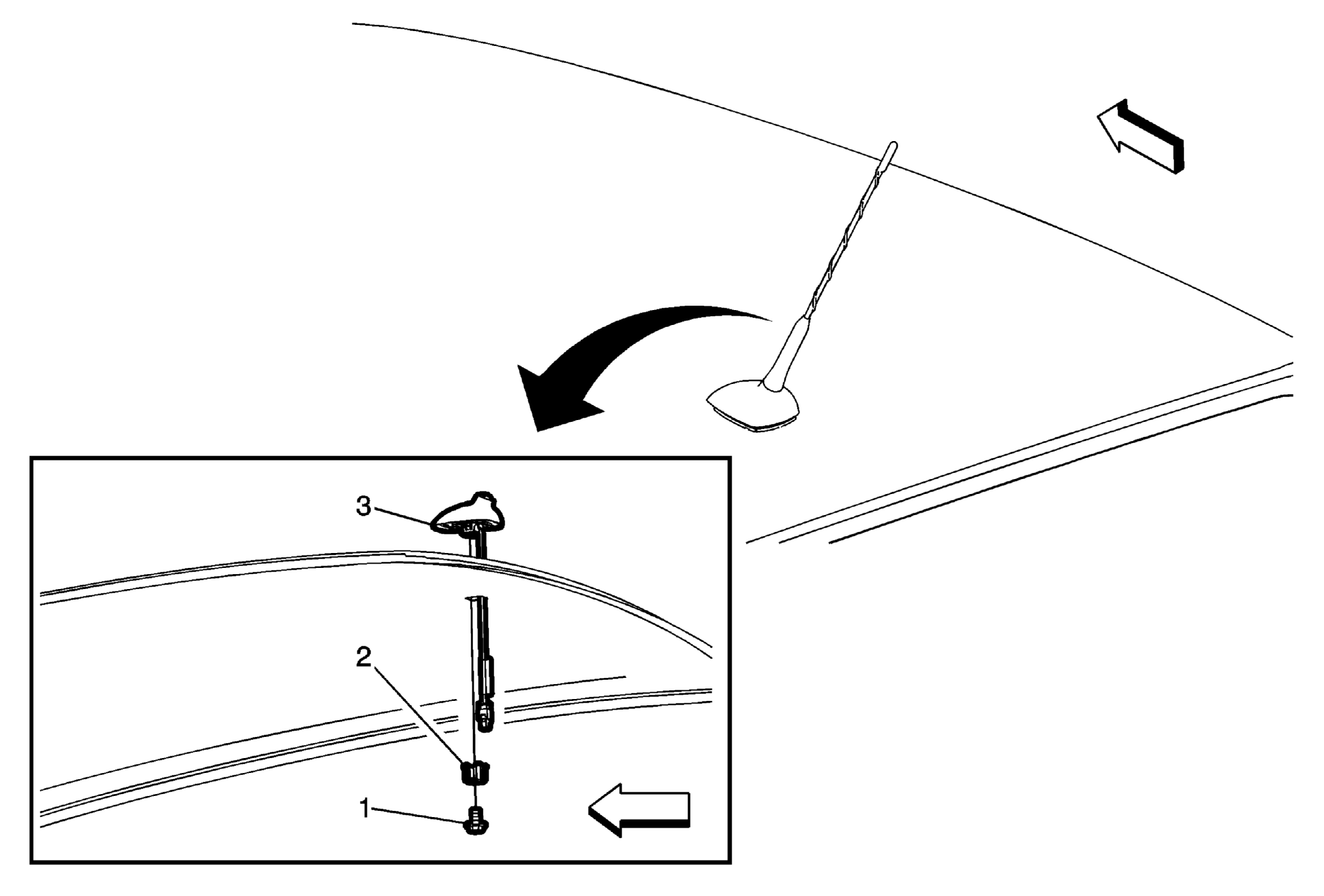

| Callout | Component Name |
|---|---|
| Preliminary Procedure Lower the rear of the headlining trim panel. Refer to Headlining Trim Panel Replacement (Hatchback with Sunroof)Headlining Trim Panel Replacement (Hatchback without Sunroof)Headlining Trim Panel Replacement (Sedan with Sunroof)Headlining Trim Panel Replacement (Sedan without Sunroof) . |
|
| 1 | Radio Antenna Base Fastener
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Radio Antenna Base Retainer |
| 3 | Radio Antenna Base Assembly Procedure Disconnect the electrical connectors. |
