Low Frequency Rear Bumper Antenna Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Sonic. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

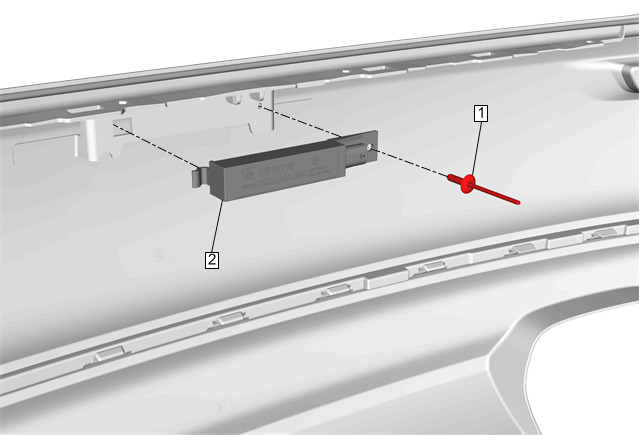

Callout	Component Name
Preliminary Procedure Rear Bumper Fascia Replacement (Notchback)Rear Bumper Fascia Replacement (Hatchback)
1	Low Frequency Rear Bumper Antenna Rivet Procedure Disconnect the electrical connector. Drill out the rivet on the Low Frequency Rear Bumper Antenna
2	Low Frequency Rear Bumper Antenna

Callout

Component Name

Preliminary Procedure
Rear Bumper Fascia Replacement (Notchback)Rear Bumper Fascia Replacement (Hatchback)

Low Frequency Rear Bumper Antenna Rivet

Procedure

Disconnect the electrical connector.
Drill out the rivet on the Low Frequency Rear Bumper Antenna

Low Frequency Rear Bumper Antenna
