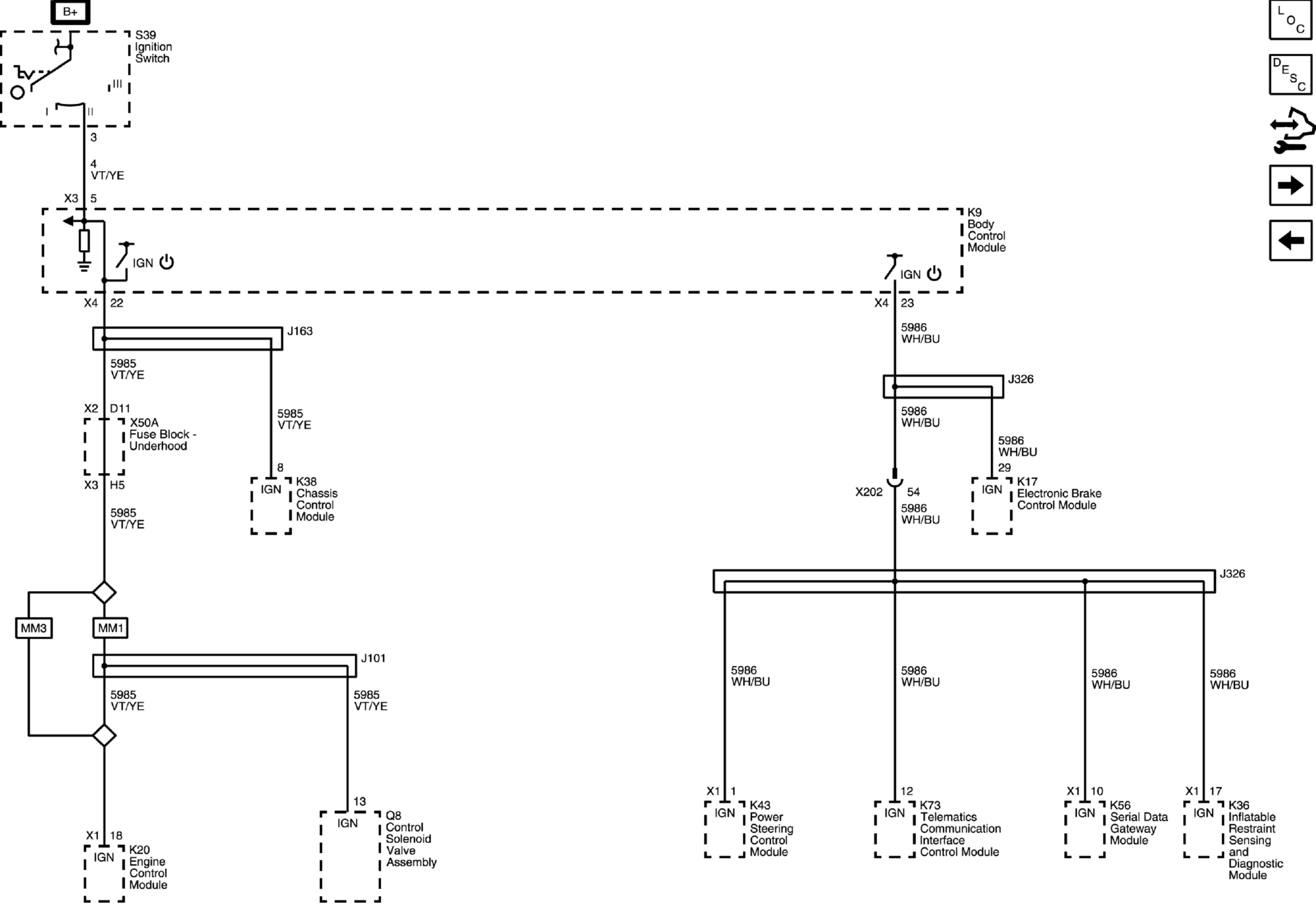

Communication Enable and Local Interconnect Network (ATH/AVJ+BTM)

GM4959697

Courtesy of GENERAL MOTORS COMPANY
