Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

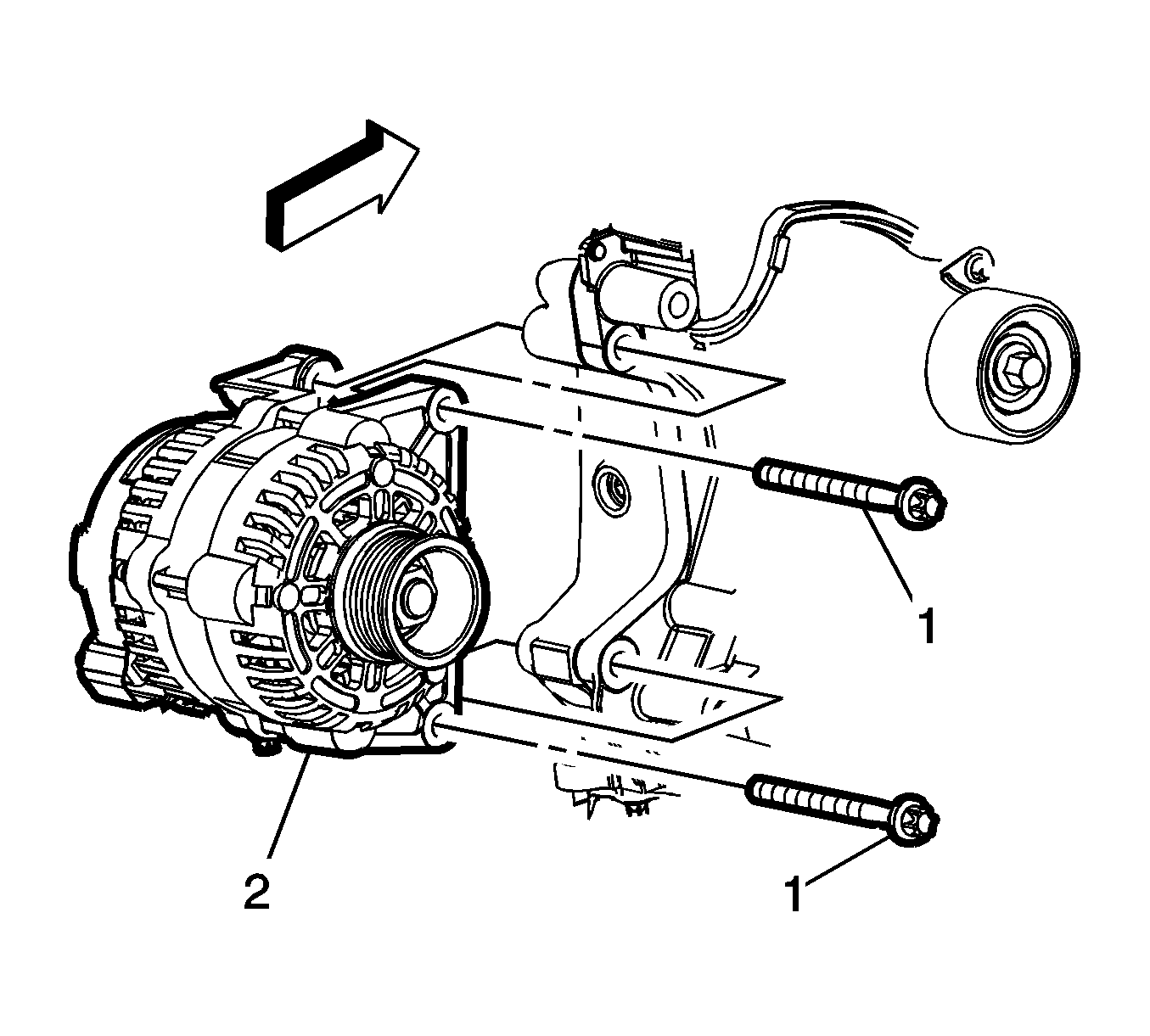

Install the generator (2) with the mounting fasteners (1) and tighten to 35 N.m (26 lb ft).
Courtesy of GENERAL MOTORS COMPANY

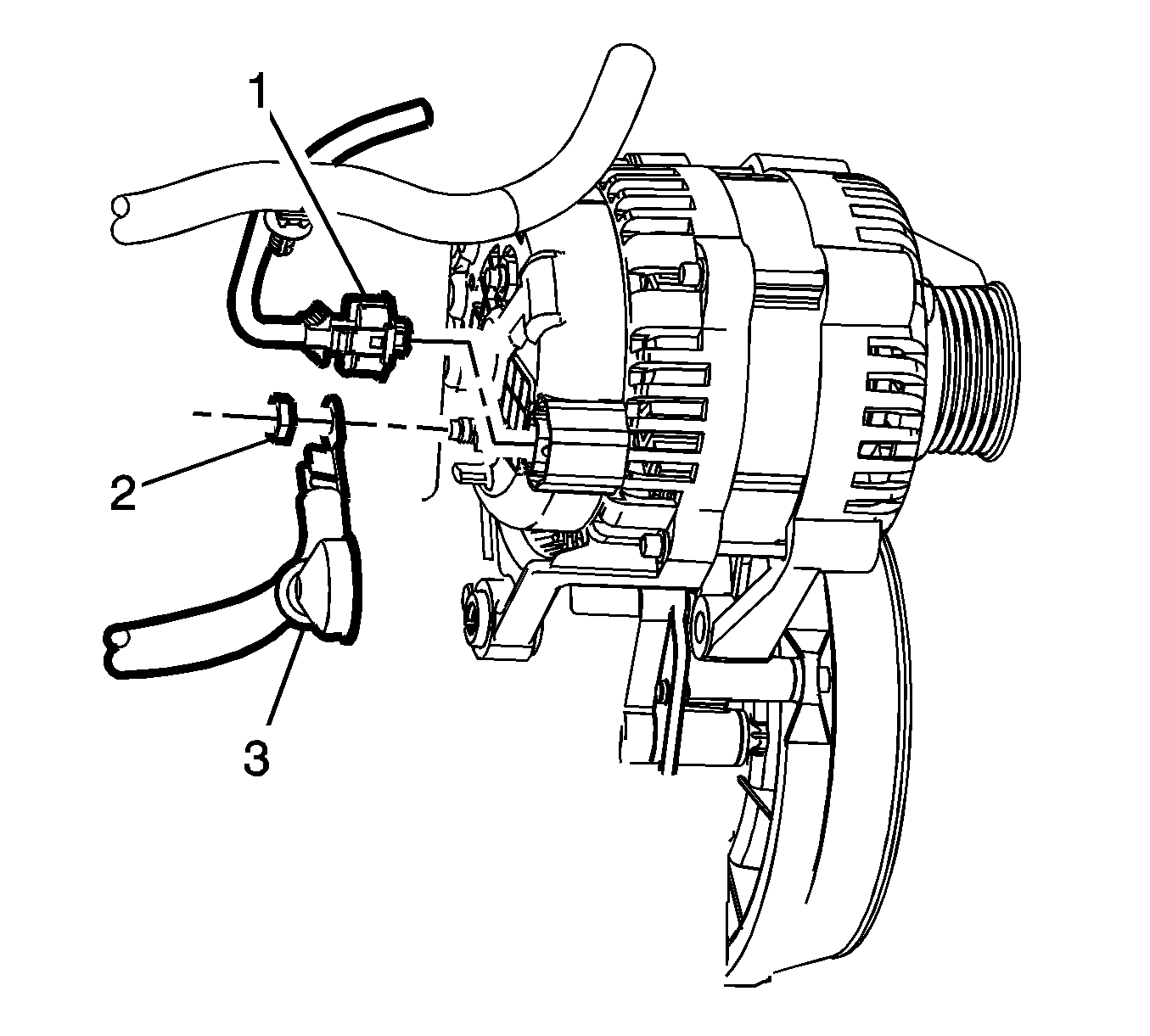

Install the battery positive cable (3) and the engine harness connector (1) to the back of the generator. Tighten fastener (2) to 9 N.m (80 lb in).
Install the drive belt tensioner. Refer to Drive Belt Tensioner Replacement .
Install the drive belt. Refer to Drive Belt Replacement .
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
