Battery Tray Replacement

Courtesy of GENERAL MOTORS COMPANY

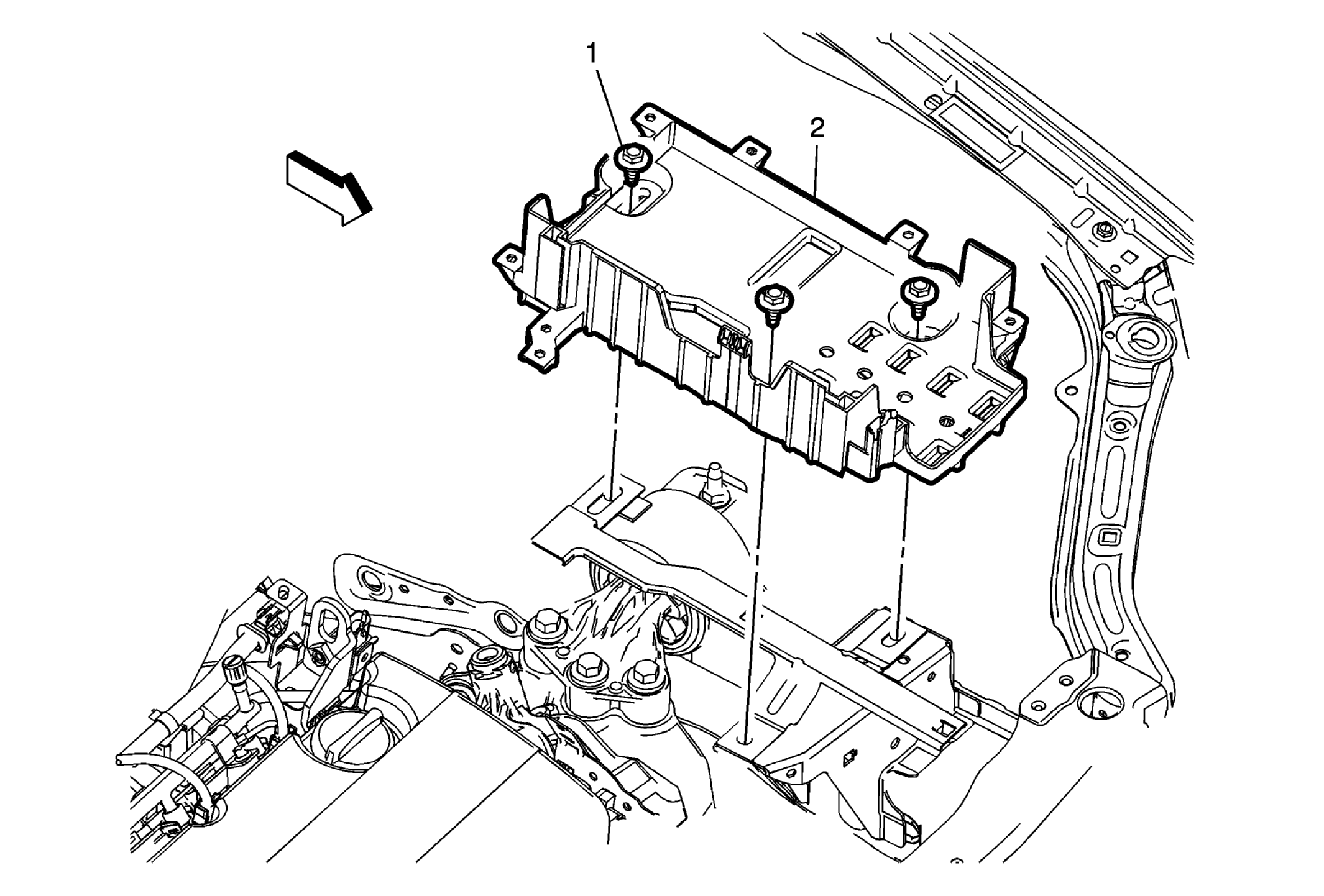

Callout	Component Name
Preliminary Procedures Remove the battery. Refer to Battery Replacement . Unclip the engine control module (ECM) bracket from the battery tray and set aside. Unclip the battery current sensor from the battery tray and set aside.
1	Battery Tray Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 14 N.m (10 lb ft)
2	Battery Tray

Callout

Component Name

Preliminary Procedures

Remove the battery. Refer to Battery Replacement .
Unclip the engine control module (ECM) bracket from the battery tray and set aside.
Unclip the battery current sensor from the battery tray and set aside.

Battery Tray Bolt (Qty: 3)

CAUTION:

Tighten
14 N.m (10 lb ft)

Battery Tray
