Removal Procedure
- Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
- Remove the underhood fuse block cover.

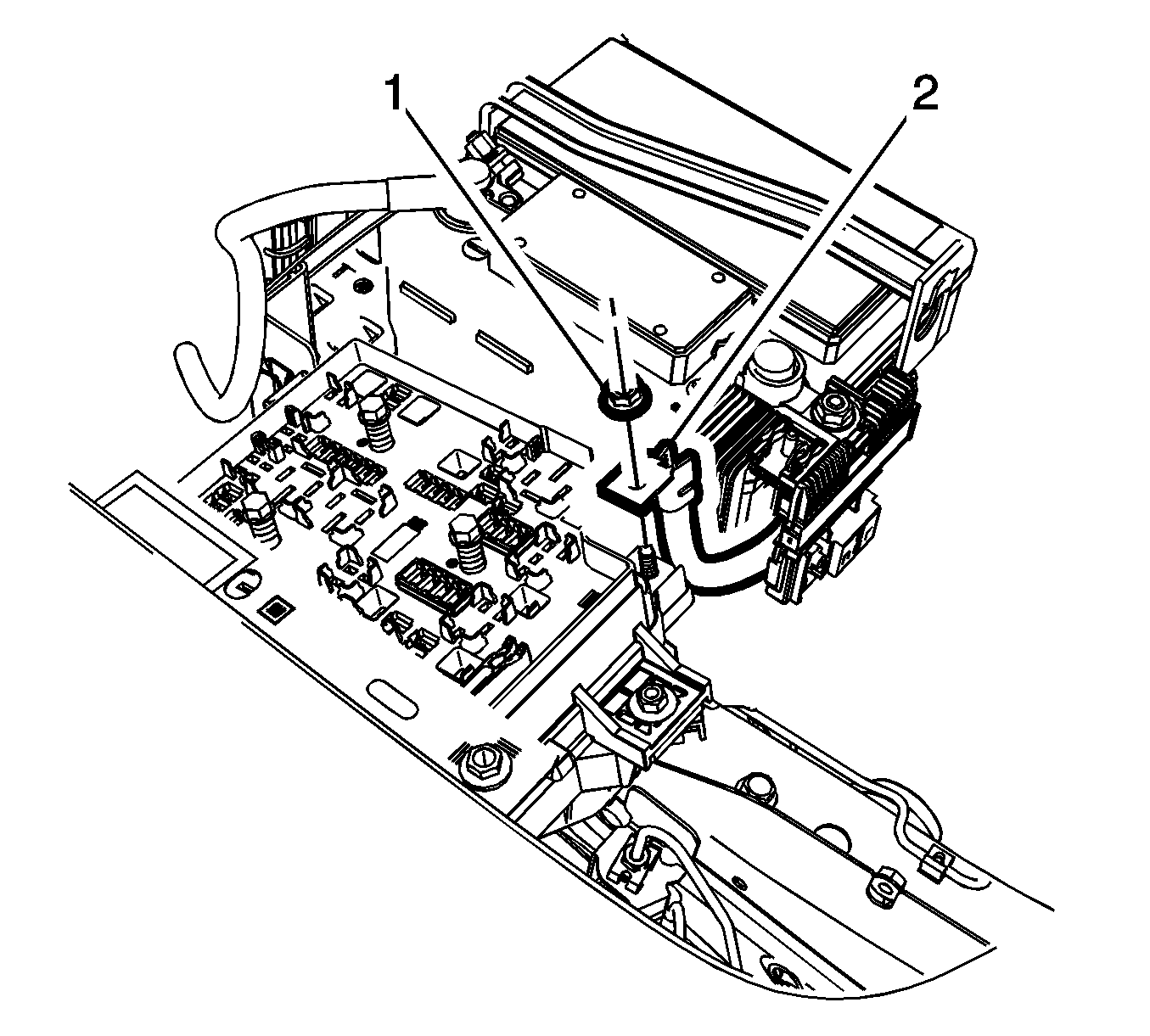

Remove the battery positive nut (1) and the battery positive cable (2), from the underhood fuse block.

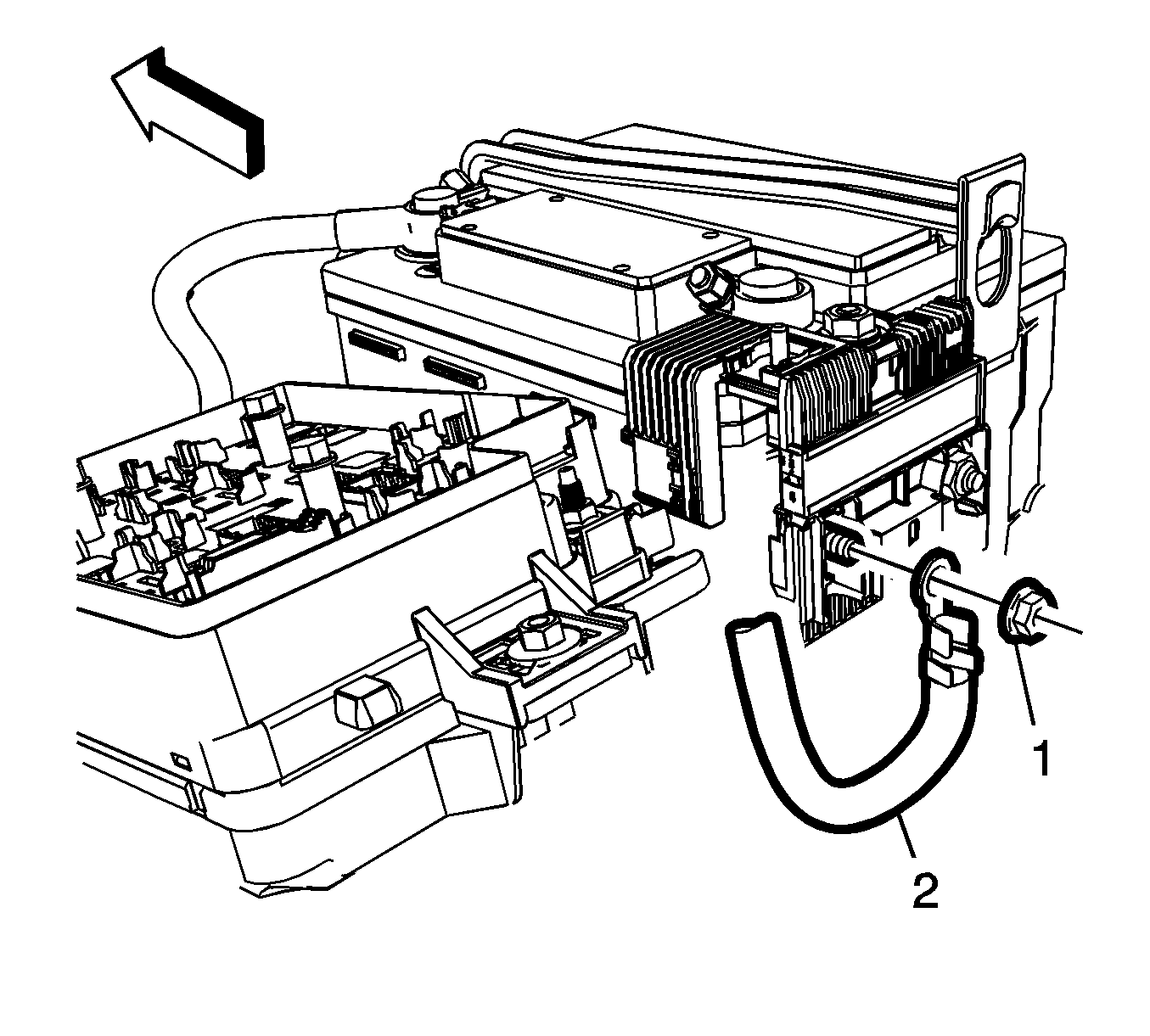

Remove the battery positive cable nut (1) from the battery positive cable junction block.
- Remove the battery positive cable (2) from the vehicle.
