Battery Negative Cable Replacement

Courtesy of GENERAL MOTORS COMPANY

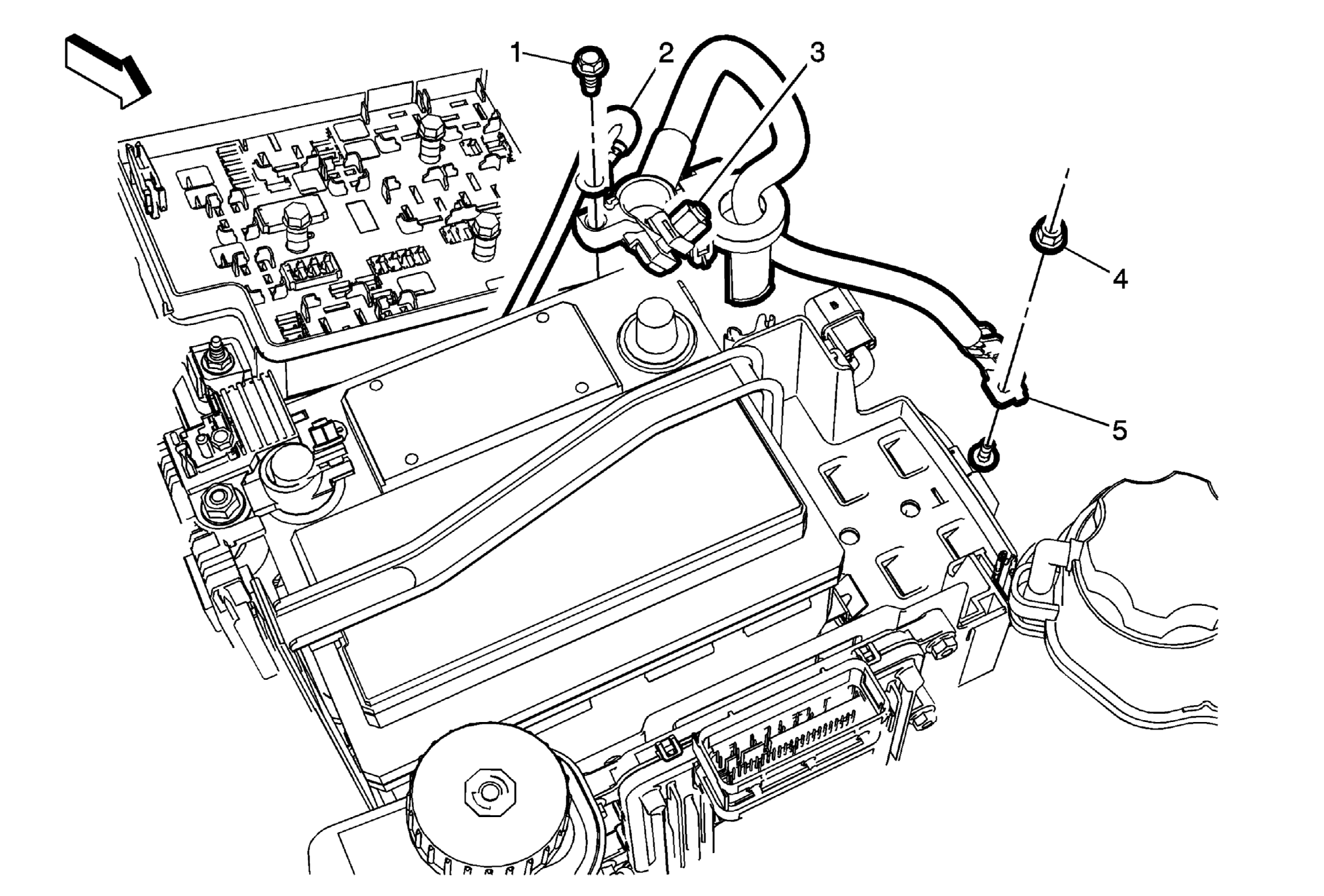

Callout	Component Name
Preliminary Procedures Disconnect the battery current sensor connector. Remove the battery tray. Refer to Battery Tray Replacement .
1	Body Harness Terminal Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Body Harness Terminal
3	Battery Negative Post Clamp Nut Tighten 9 N.m (80 lb in)
4	Battery Negative Frame Ground Nut Tighten 22 N.m (16 lb ft)
5	Battery Negative Cable Procedure Transfer the current sensor, noting the location and direction on the cable.
