Instrument Panel Lower Intermediate Reinforcement Replacement

Courtesy of GENERAL MOTORS COMPANY

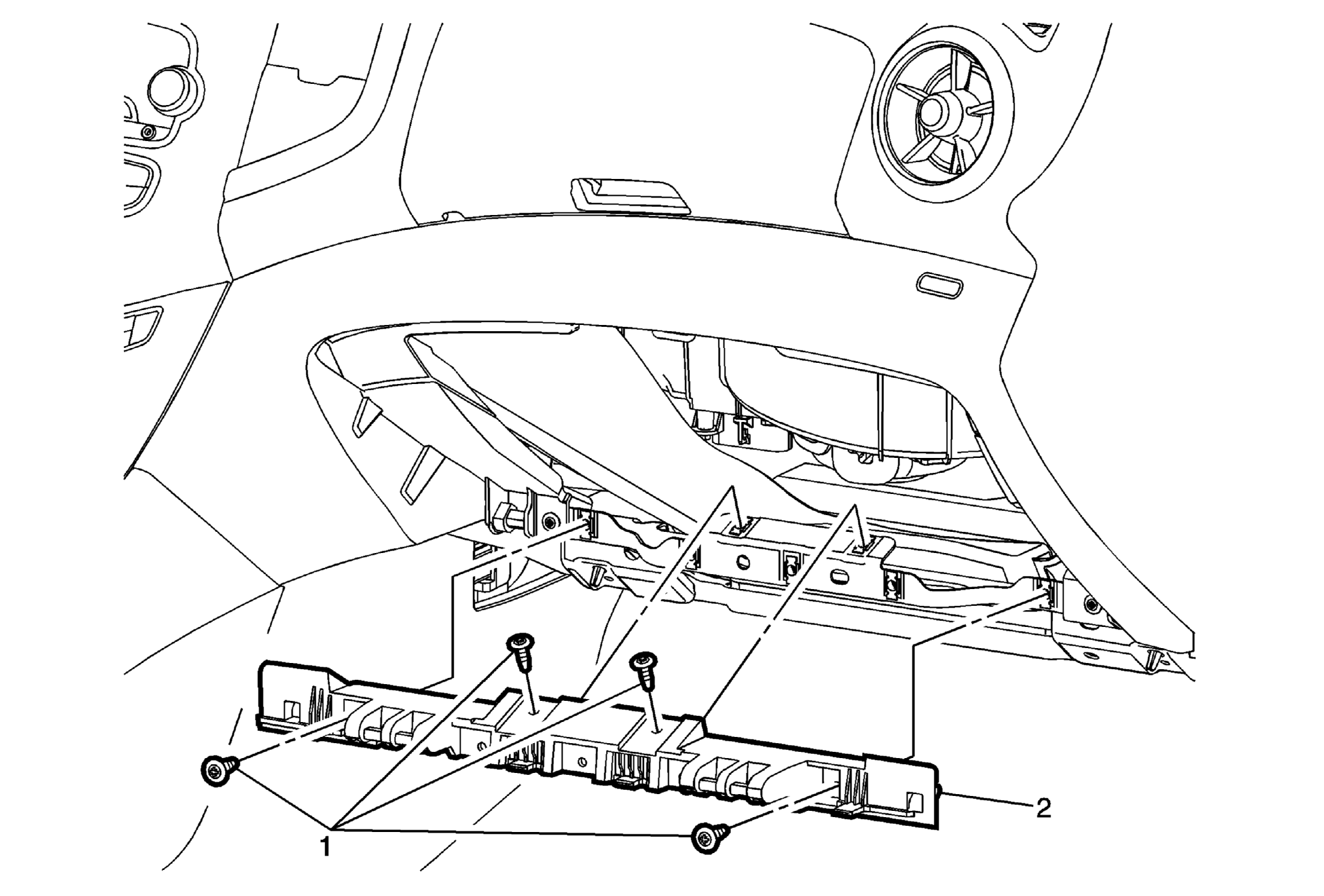

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the passenger inflatable restraint instrument panel lower module. Refer to Instrument Panel Lower Airbag Replacement - Passenger Side .
1	Instrument Panel Lower Reinforcement Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Instrument Panel Lower Intermediate Reinforcement

Callout

Component Name

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the passenger inflatable restraint instrument panel lower module. Refer to Instrument Panel Lower Airbag Replacement - Passenger Side .

Instrument Panel Lower Reinforcement Fasteners (Qty: 4)

CAUTION:

Instrument Panel Lower Intermediate Reinforcement
