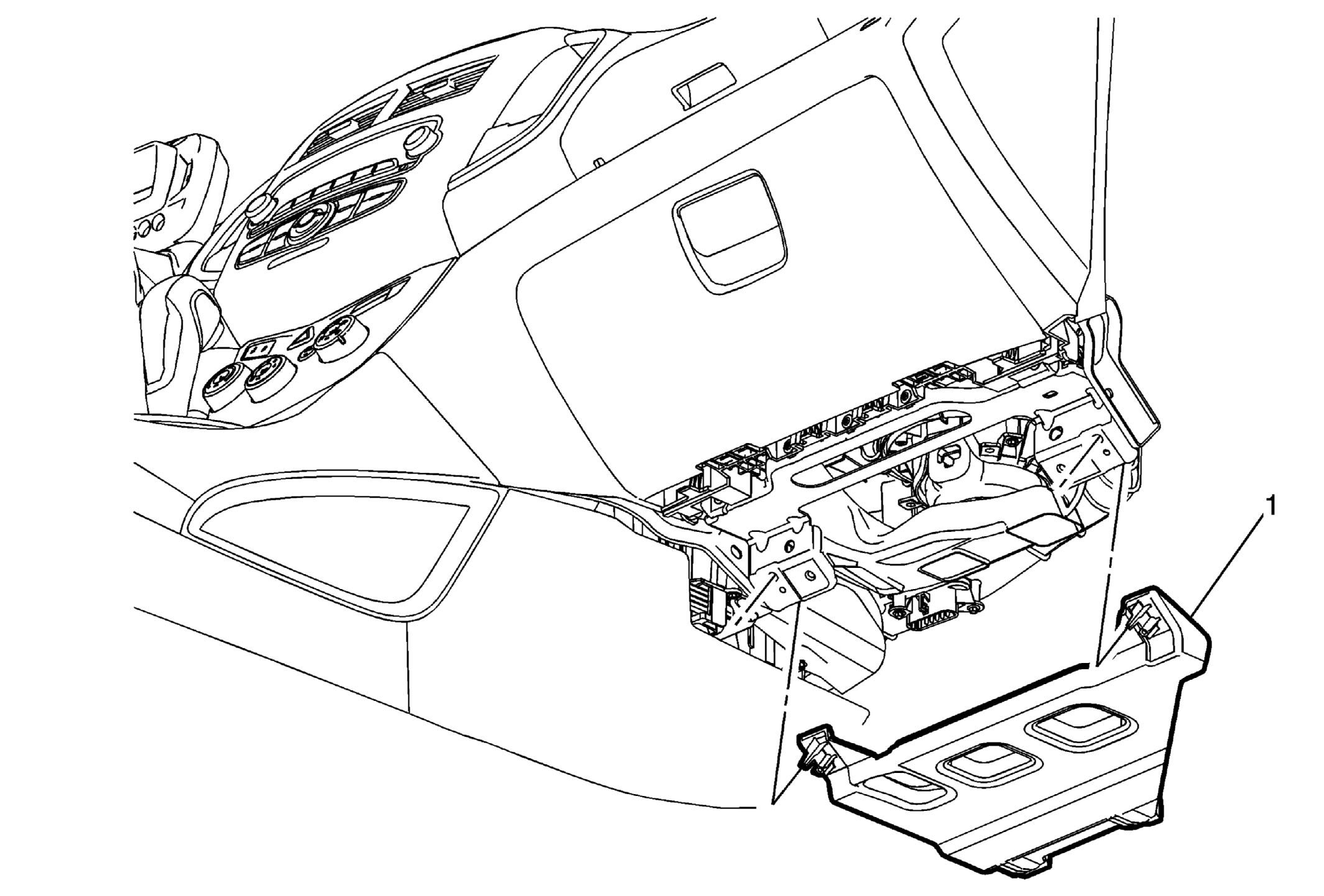

Instrument Panel Insulator Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the passenger inflatable restraint instrument panel lower module. Refer to Instrument Panel Lower Airbag Replacement - Passenger Side .
1	Instrument Panel Insulator

Callout

Component Name

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the passenger inflatable restraint instrument panel lower module. Refer to Instrument Panel Lower Airbag Replacement - Passenger Side .

Instrument Panel Insulator
