Instrument Panel Compartment Replacement

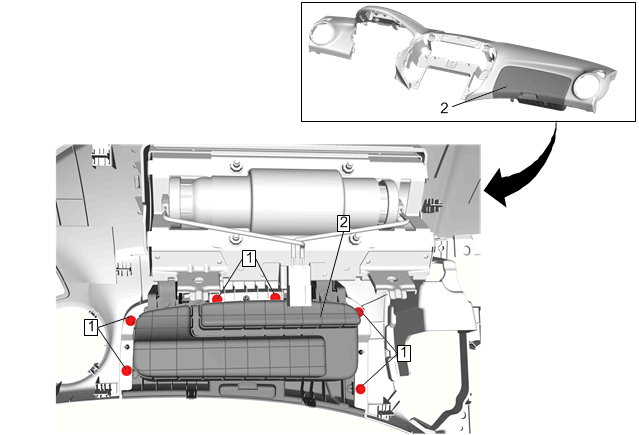

GM4503316Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement .
1 Instrument Panel Compartment Fastener (Qty: 6)
CAUTION:

Refer to Fastener Caution .
2 Instrument Panel Compartment
Procedure
When replacing the instrument panel compartment, transfer all necessary components if applicable.
