Instrument Panel Center Compartment Replacement

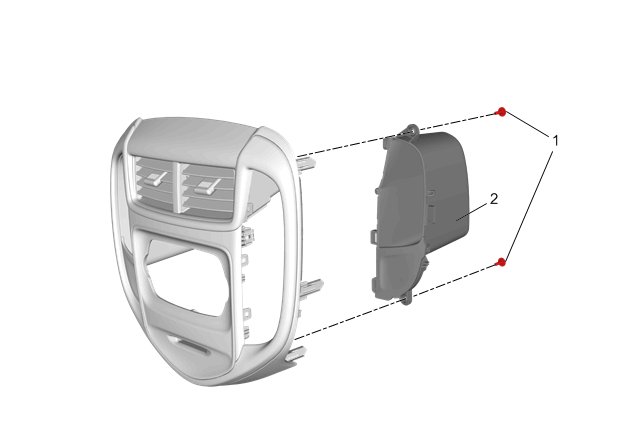

GM4777277Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Center Molding Replacement
1 Instrument Panel Center Compartment Screw [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
1.1N.m (10 lb in)
2 Instrument Panel Center Compartment
