Front Floor Console Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

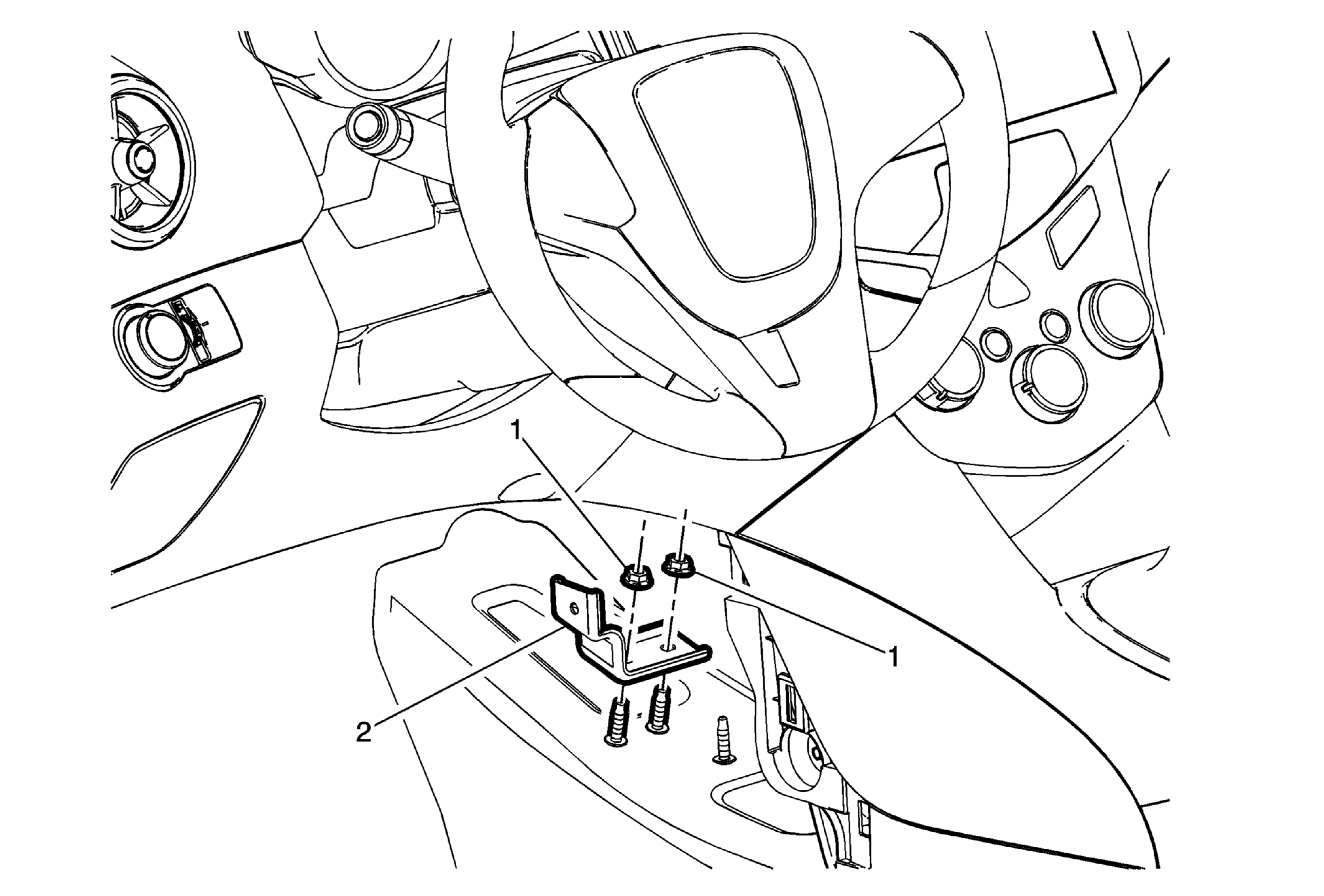

Callout	Component Name
Preliminary Procedure  Remove the left front floor console extension panel. Refer to Front Floor Console Extension Replacement - Left Side .
1	Front Floor Console Extension Nuts (Qty: 2) CAUTION: Refer to Fastener Caution . 9 N.m (80 lb in)
2	Front Floor Console Bracket
