Rear Compartment Lid Latch Replacement

Courtesy of GENERAL MOTORS COMPANY

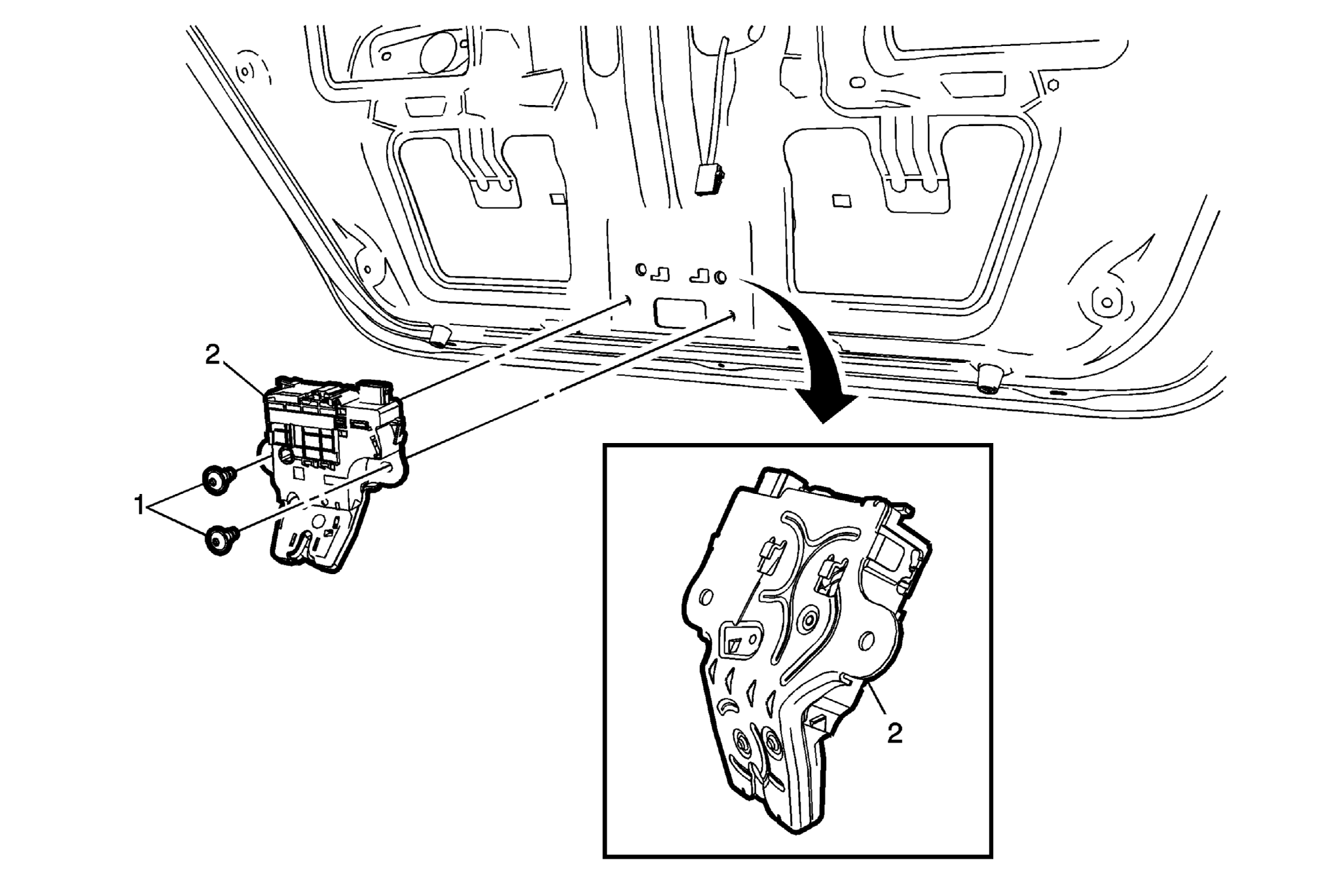

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Rear Compartment Lid Latch Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Rear Compartment Latch Procedure Disconnect the electrical connection. Slide the latch to the right and up to remove from the compartment lid.

Callout

Component Name

Preliminary Procedure
Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .

Rear Compartment Lid Latch Screw (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Rear Compartment Latch

Procedure
