Liftgate Latch Striker Replacement

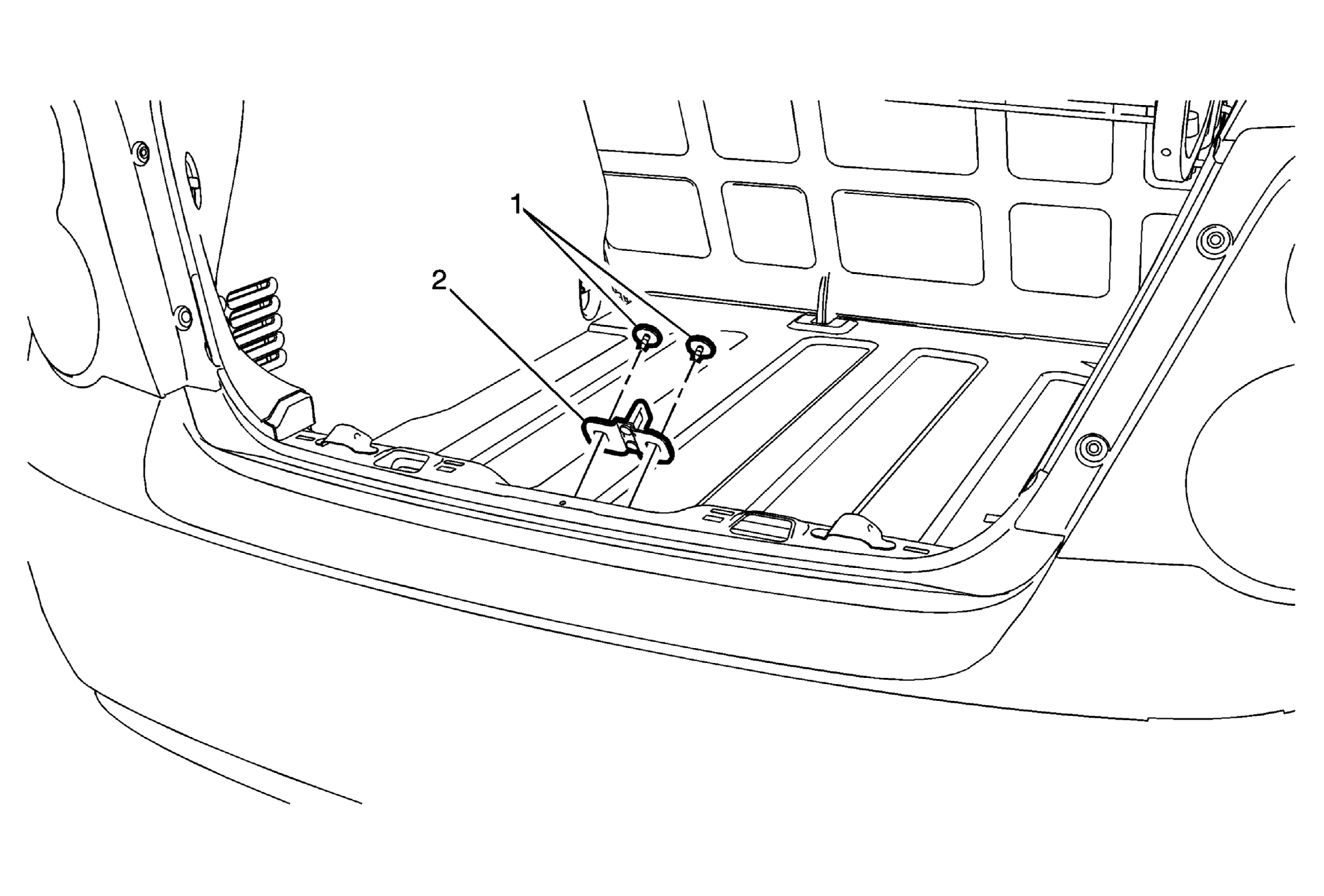

GM2479285Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear compartment sill trim plate. Refer to Rear Compartment Sill Trim Plate Replacement .
1 Liftgate Latch Striker Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Liftgate Latch Striker
