Front Side Door Latch Replacement

Courtesy of GENERAL MOTORS COMPANY

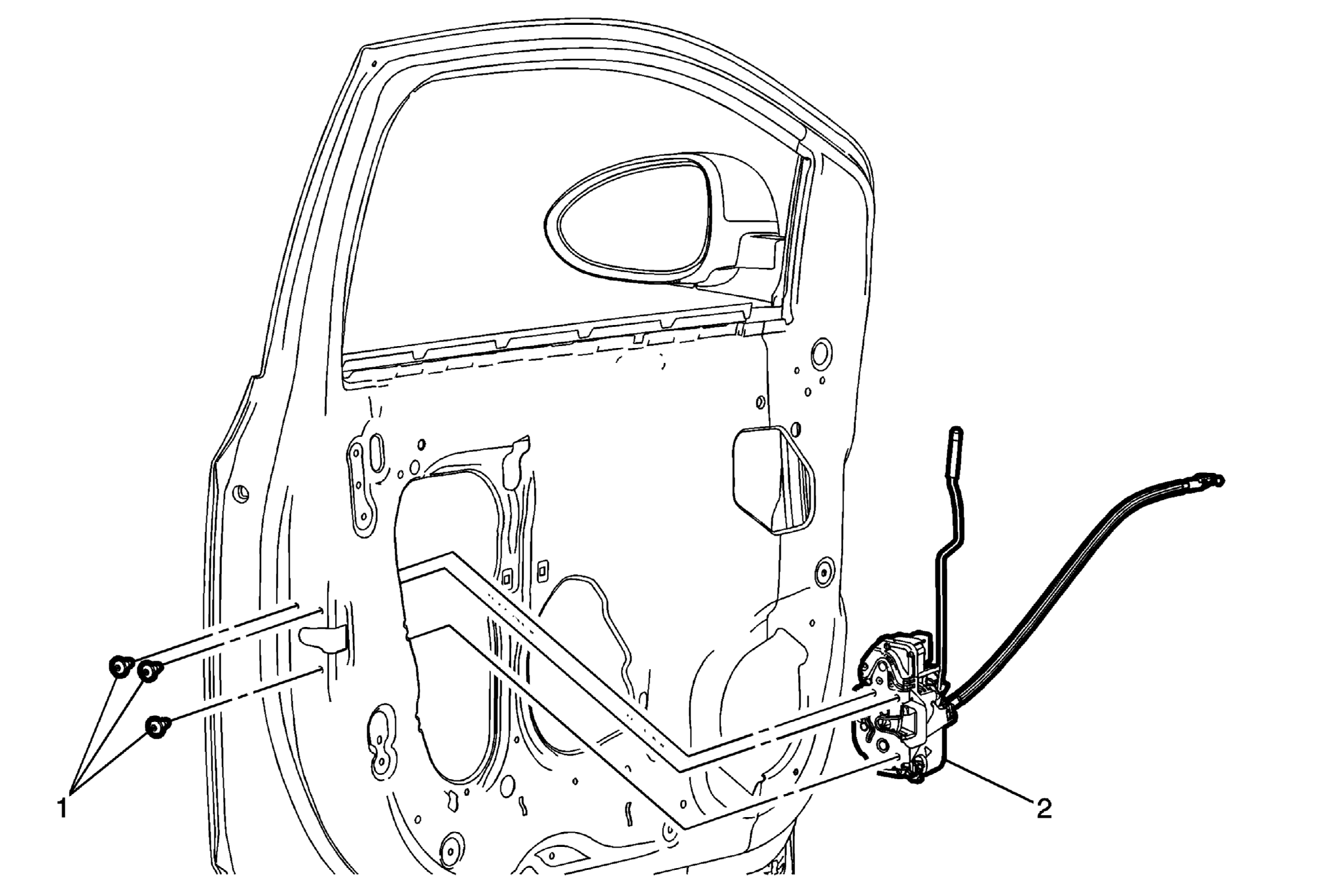

Callout	Component Name
Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Replacement .
1	Front Side Door Lock Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Procedures Remove the water deflector. Release the front inside door handle cable retainers from the door. Remove the front side door window rear guide. Refer to Front Side Door Window Rear Guide Replacement . Tighten 10 N.m (89 lb in)
2	Front Side Door Lock Assembly Procedure Disconnect the front side door lock electrical connector. Transfer the front side door lock rods. Front outside door handle rod adjustment. Refer to Front Side Door Outside Handle Rod Adjustment .

Callout

Component Name

Preliminary Procedure
Remove the front side door trim panel. Refer to Front Side Door Trim Replacement .

Front Side Door Lock Screw (Qty: 3)

CAUTION:

Procedures

Remove the water deflector.
Release the front inside door handle cable retainers from the door.
Remove the front side door window rear guide. Refer to Front Side Door Window Rear Guide Replacement .

Tighten
10 N.m (89 lb in)

Front Side Door Lock Assembly

Procedure

Disconnect the front side door lock electrical connector.
Transfer the front side door lock rods.
Front outside door handle rod adjustment. Refer to Front Side Door Outside Handle Rod Adjustment .
