Steering Column Components

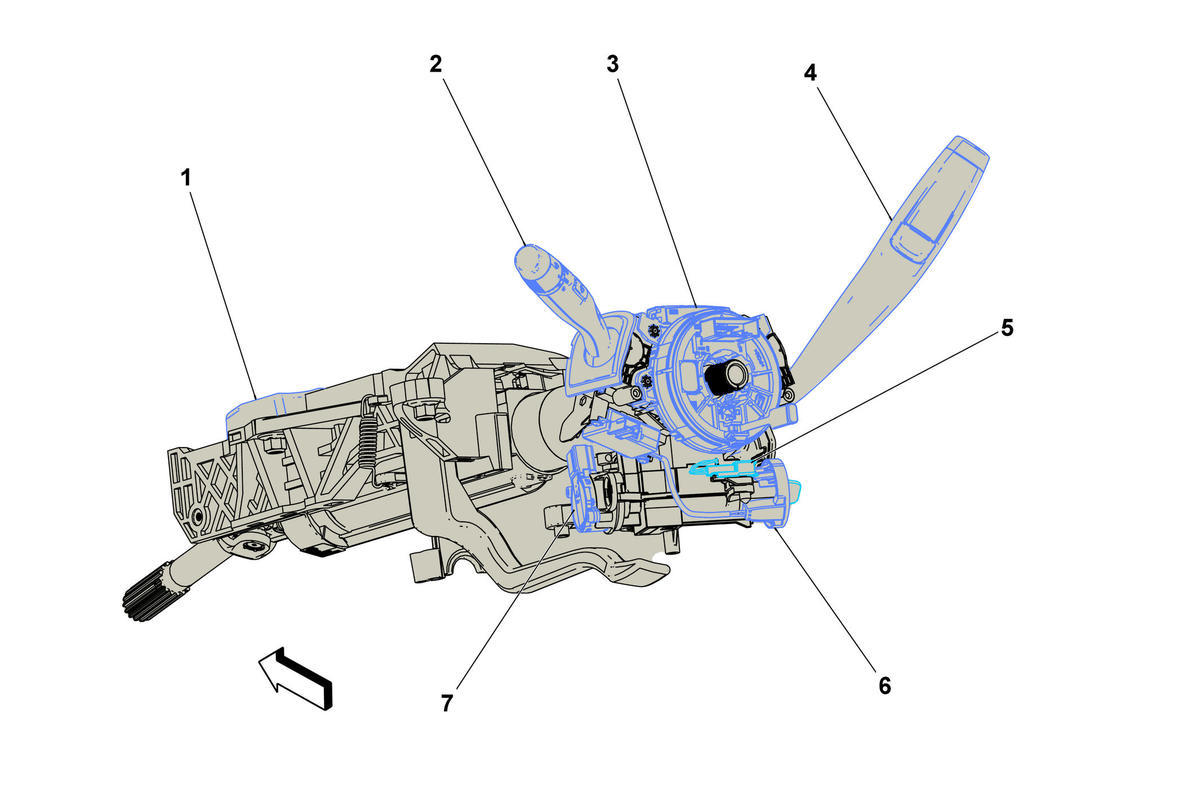

GM5034747Courtesy of GENERAL MOTORS COMPANY
Items
1. K60 Steering Column Lock Module (BTM) K60 Steering Column Lock Module (BTM)
2. S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch
3. X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1 , or X85 Steering Wheel Air Bag Coil X2
4. S2 Transmission Manual Shift Switch S2 Transmission Manual Shift Switch
5. M93 Key Capture Solenoid Actuator (-BTM) M93 Key Capture Solenoid Actuator (-BTM)
6. K89 Immobilizer Control Module K89 Immobilizer Control Module (-BTM) , or K89 Immobilizer Control Module (BTM+D07) , or K89 Immobilizer Control Module (BTM-D07)
7. S39 Ignition Switch (-BTM) S39 Ignition Switch (-BTM)
