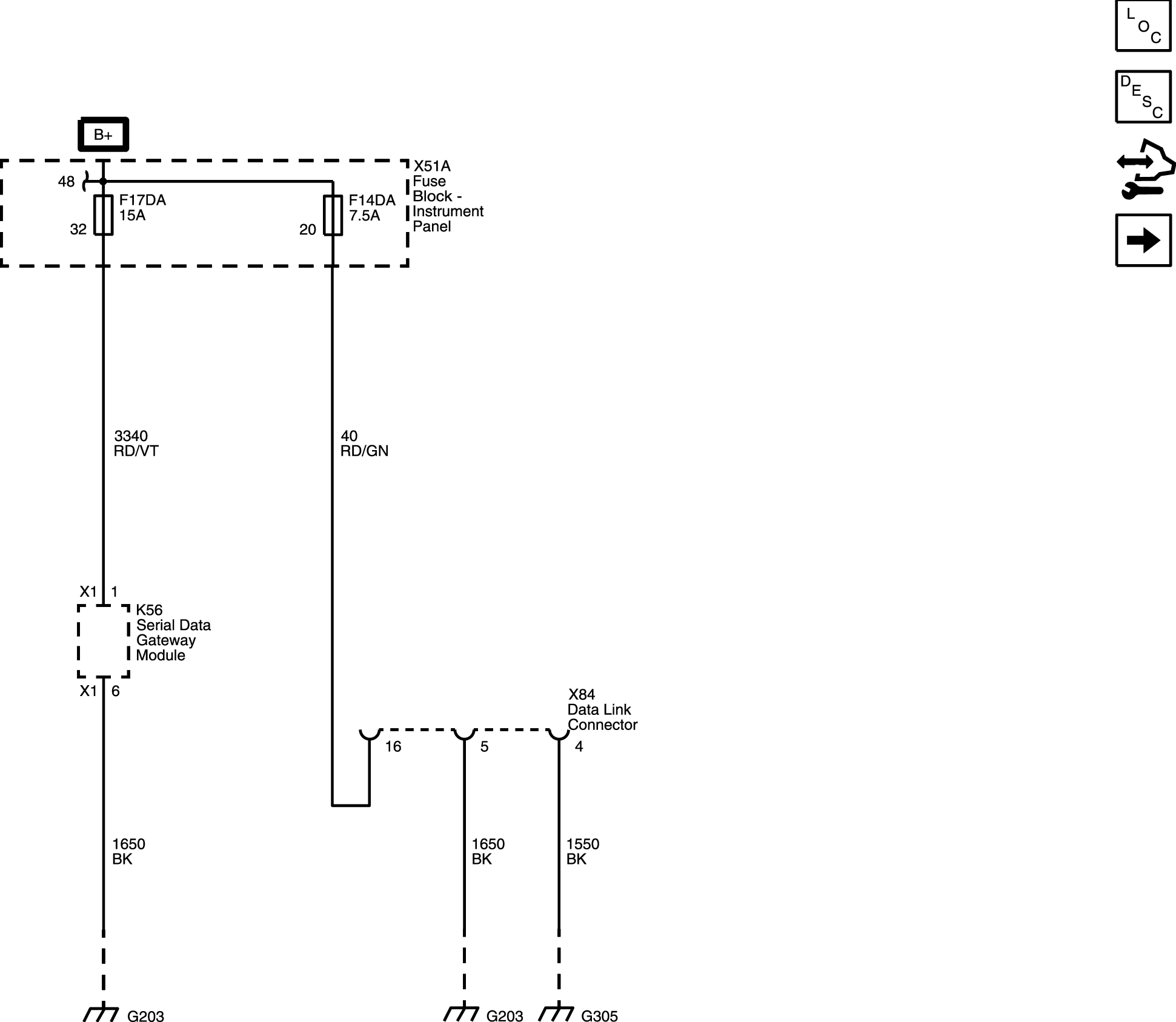

Serial Data Gateway Module and Data Link Connector Power and Ground

GM4921315

Courtesy of GENERAL MOTORS COMPANY
