Engine Controls And Fuel - 6.0L (L96 LC8) - Engine Controls Schematics
>>
Schematic and Routing Diagrams
>>
Engine Controls Wiring Schematics
>>

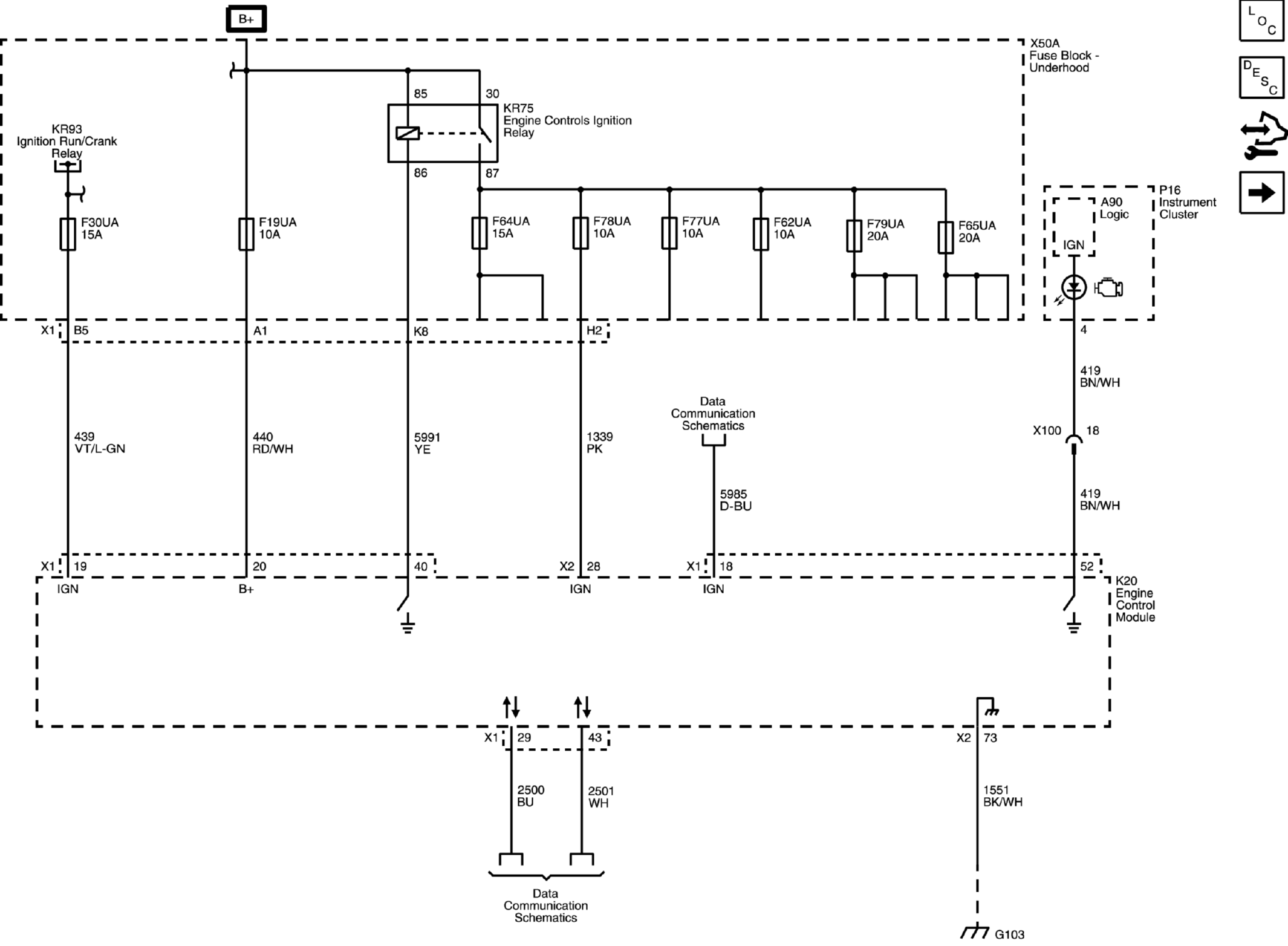

Module Power, Ground, Serial Data and MIL
Module Power, Ground, Serial Data and MIL
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
