Installation Procedure

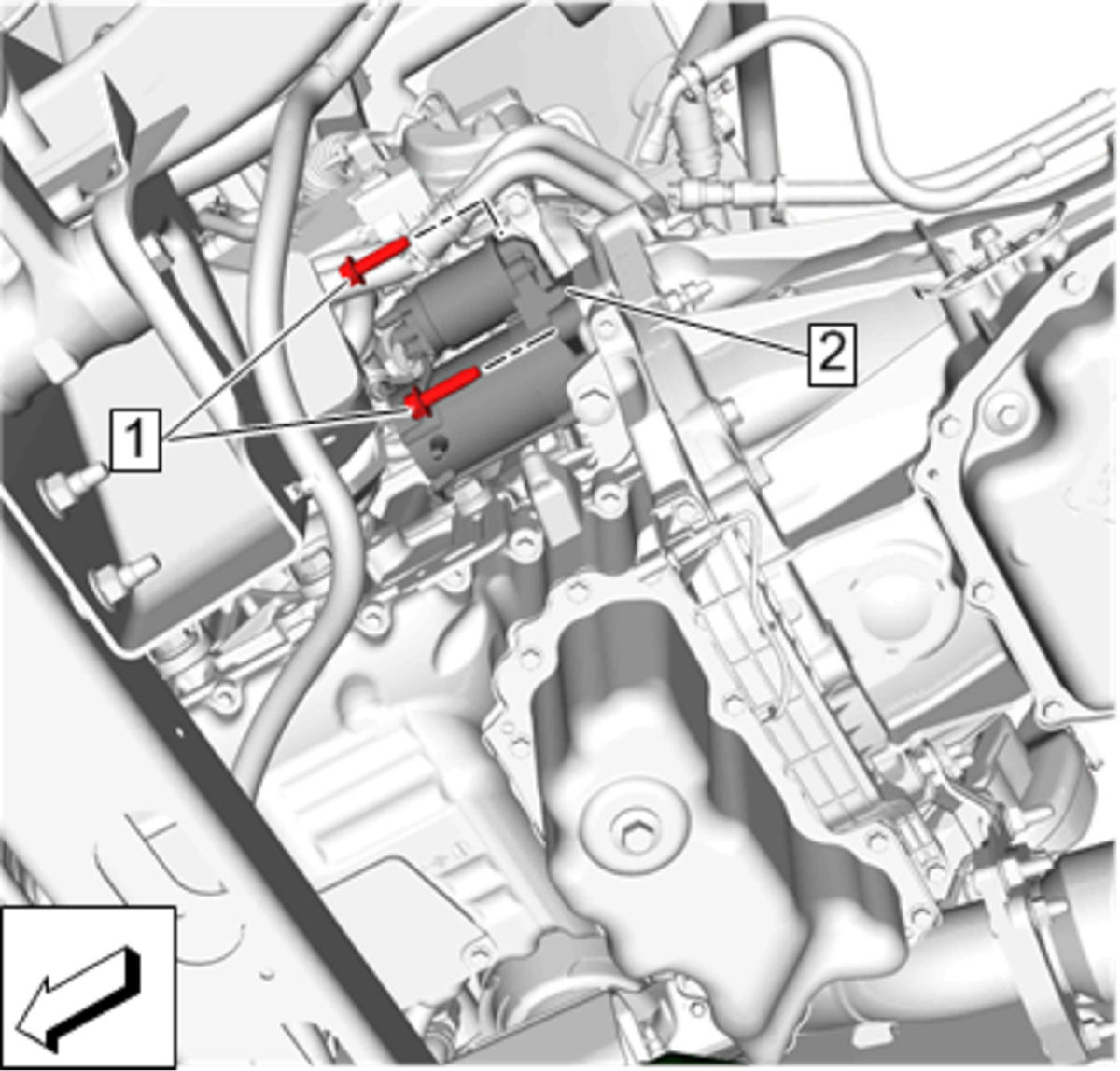

  1. GM4601983Courtesy of GENERAL MOTORS COMPANY

    Starter(2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Starter Bolt(1) - Install and tighten[2x]58 N.m (43 lb ft)
  3. GM4339363Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Fuel Feed Pipe Bracket (1) - Install

  4. Fuel Pump Fuel Feed Pipe Bracket Bolt (2) - Install and tighten22 N.m (16 lb ft)

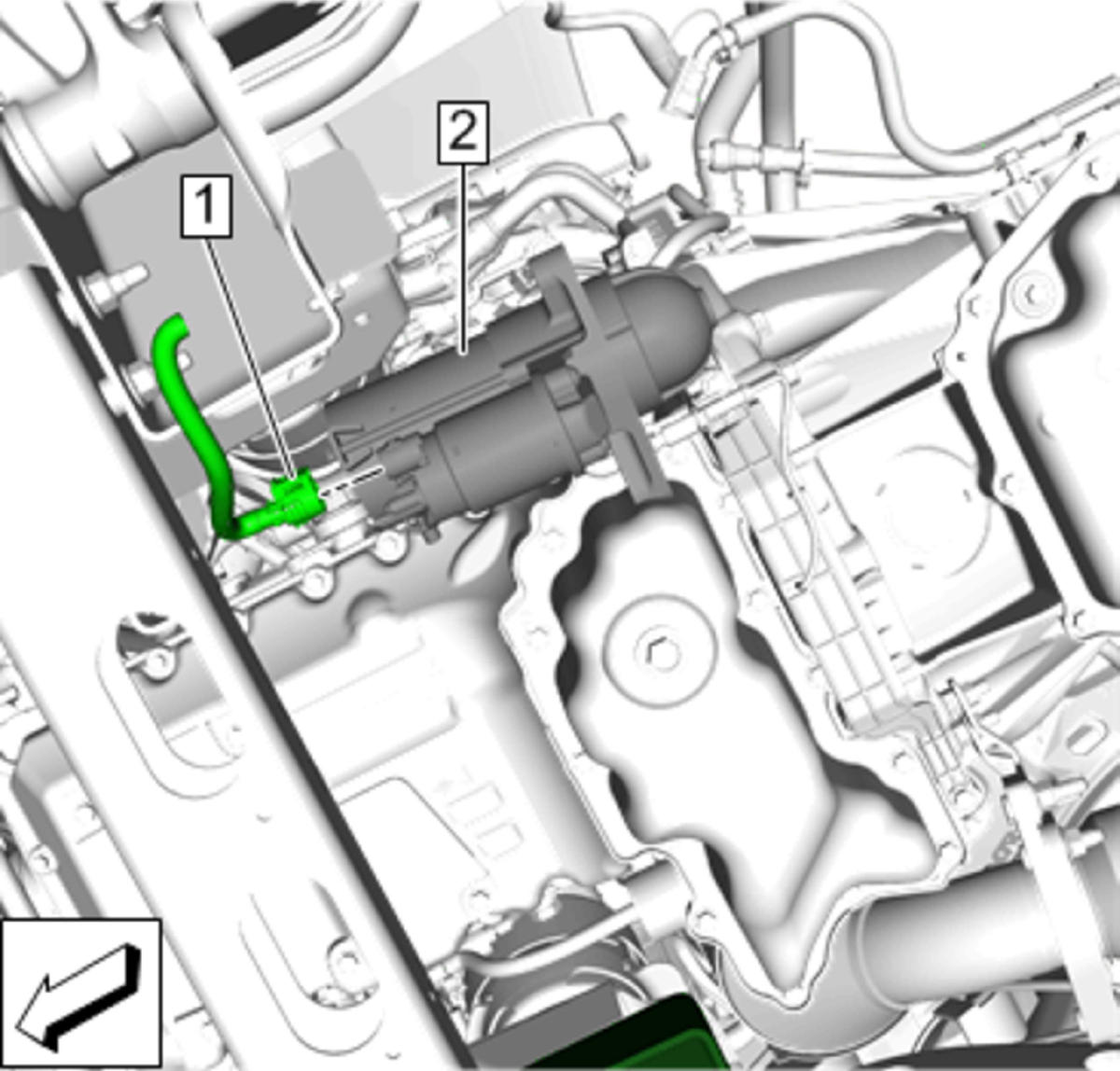

  5. GM4601985Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector(1) - Connect

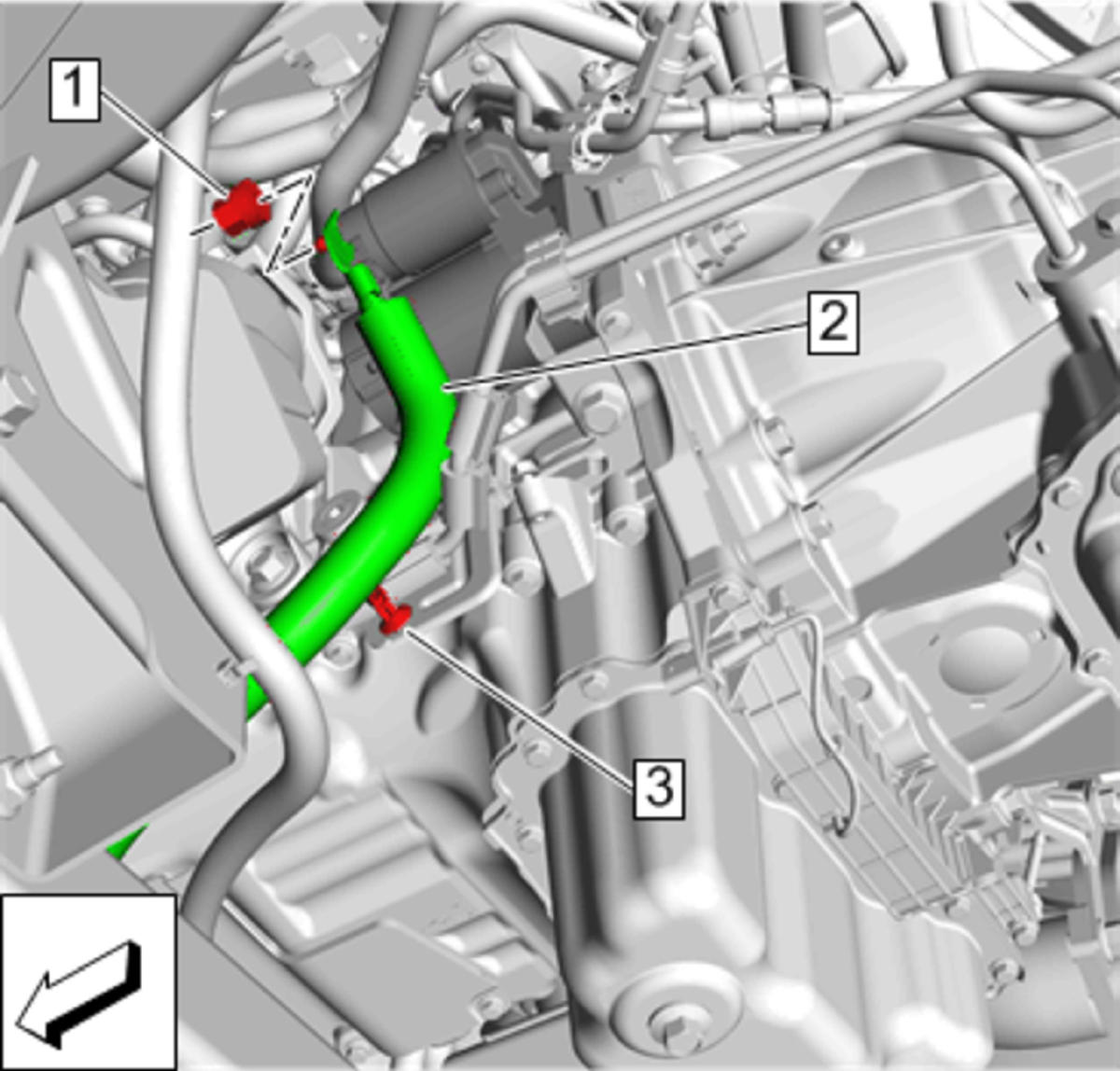

  6. GM4601976Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable(2) - Install

  7. Battery Positive Cable Nut(1) - Install and tighten12.5 N.m (111 lb in)
  8. Retainer(3) - Engage

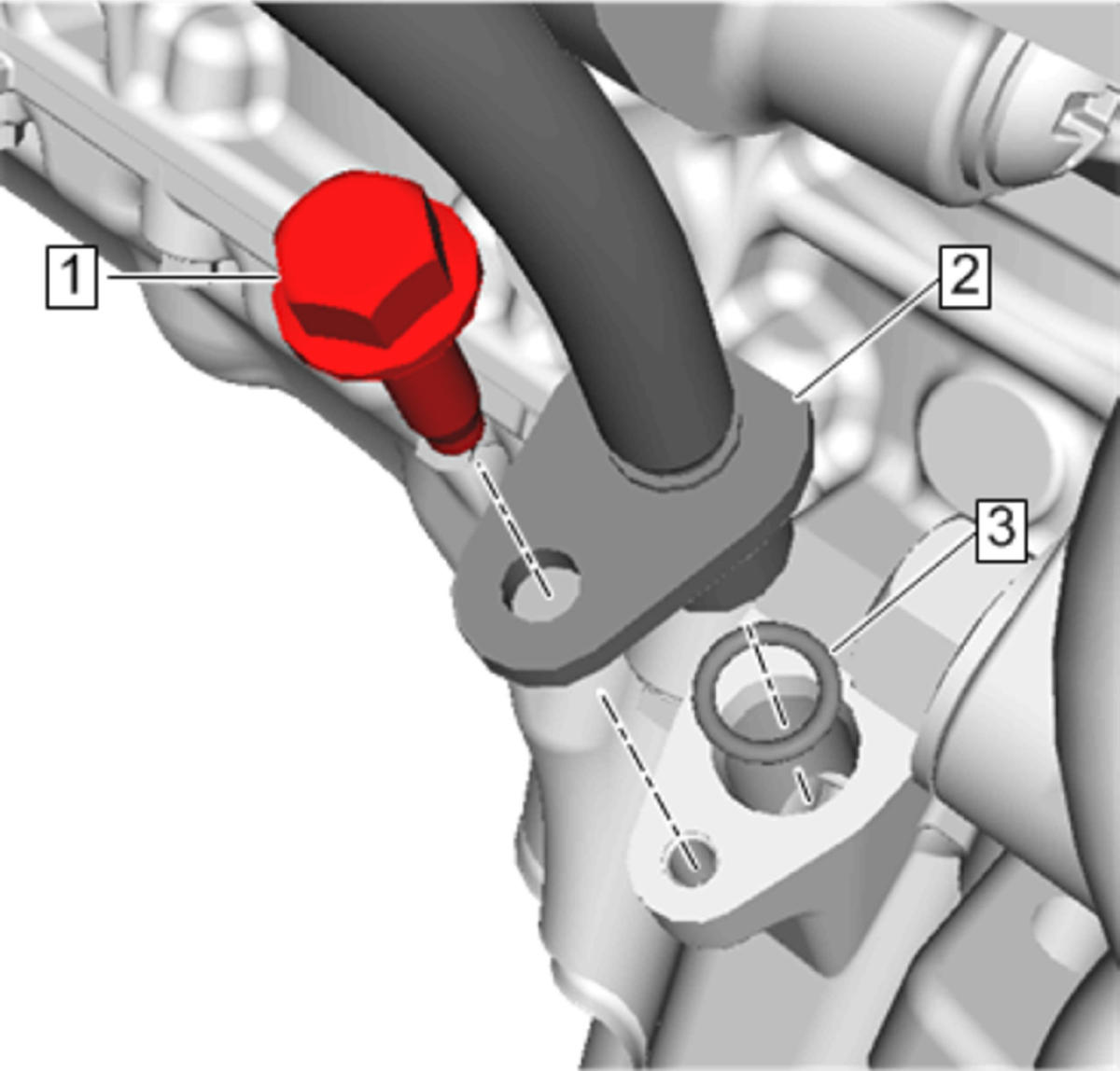

  9. GM4606700Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube(2) - Install - Oil Level Indicator Tube Replacement

  10. Lower the vehicle.
  11. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery) Battery Negative Cable Disconnection and Connection (Dual Battery)
