Installation Procedure

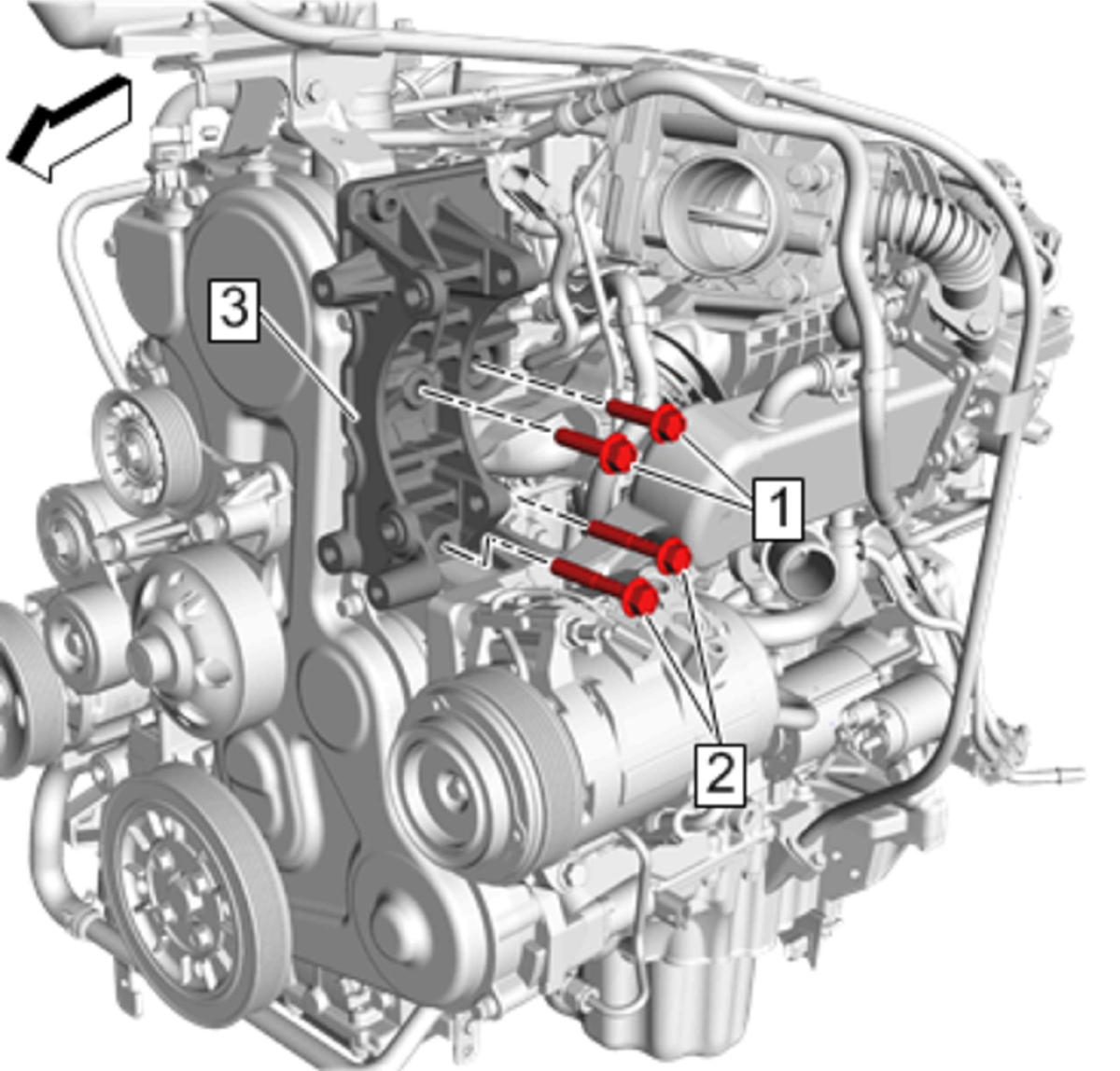

  1. GM4605116Courtesy of GENERAL MOTORS COMPANY

    Generator Bracket(3) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Generator Bracket Bolt(2) - Install and tighten[2x]58 N.m (43 lb ft)
  3. Generator Bracket Bolt(1) - Install and tighten[2x]58 N.m (43 lb ft)

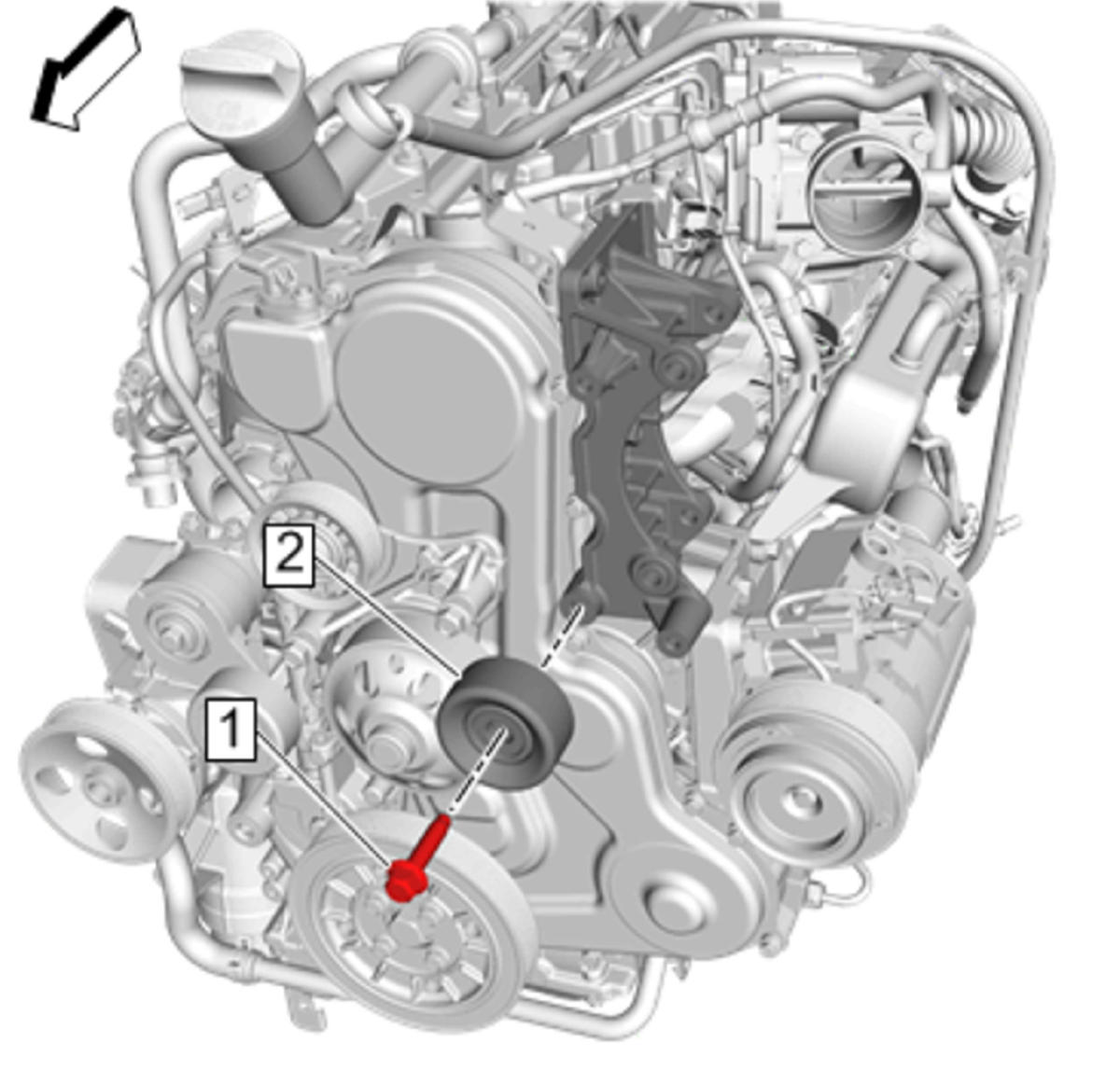

  4. GM4605115Courtesy of GENERAL MOTORS COMPANY

    Drive Belt Idler Pulley- Left Side(2) - Install - Drive Belt Idler Pulley Replacement - Left Side

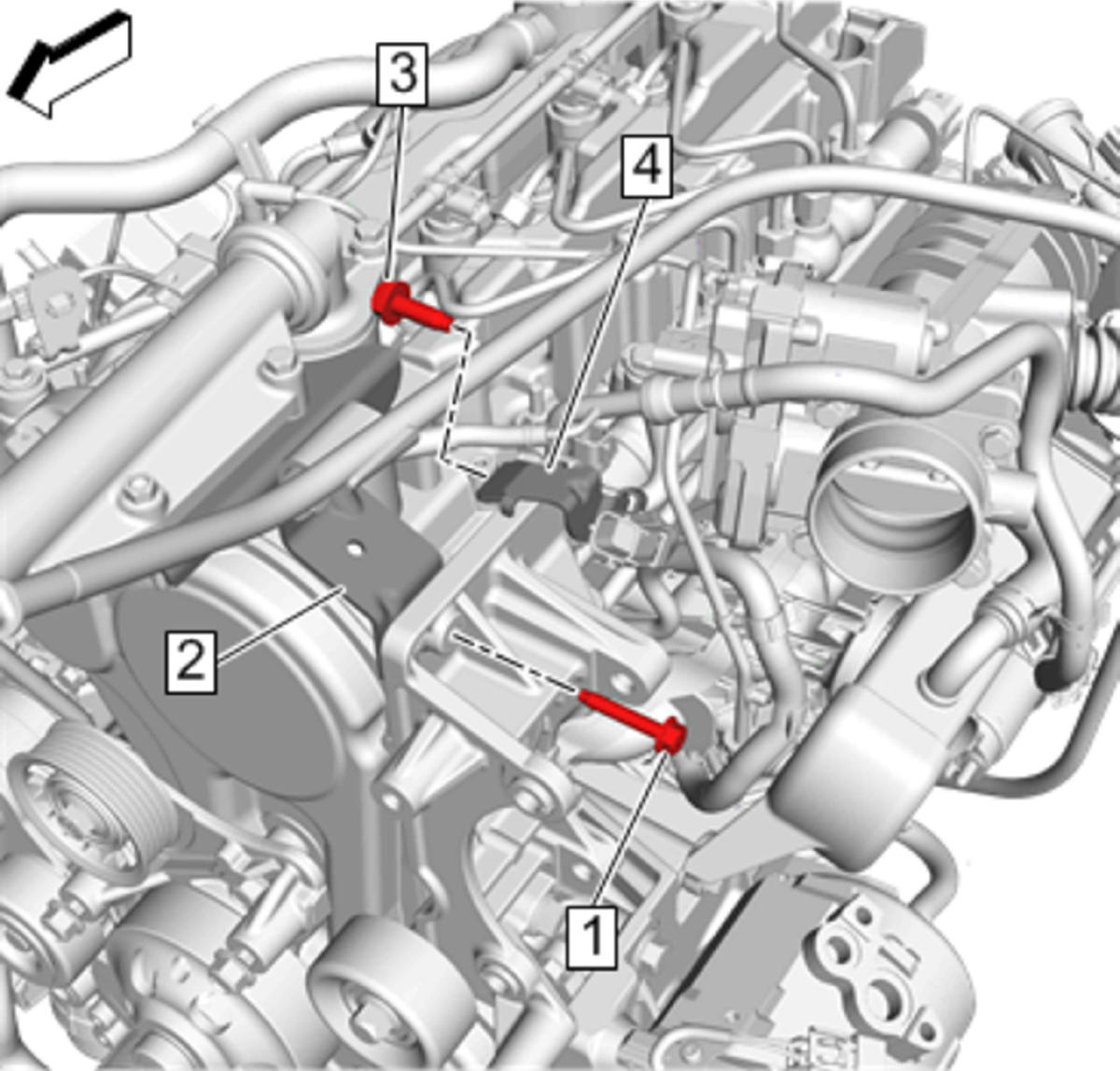

  5. GM4605015Courtesy of GENERAL MOTORS COMPANY

    Engine Oil Fill Tube Bracket (2) - Install

  6. Engine Oil Fill Tube Bracket Bolt (1) - Install and tighten25 N.m (18 lb ft)
  7. Engine Wiring Harness Bracket(4) - Install
  8. Engine Wiring Harness Bracket Bolt(3) - Install and tighten10 N.m (89 lb in)

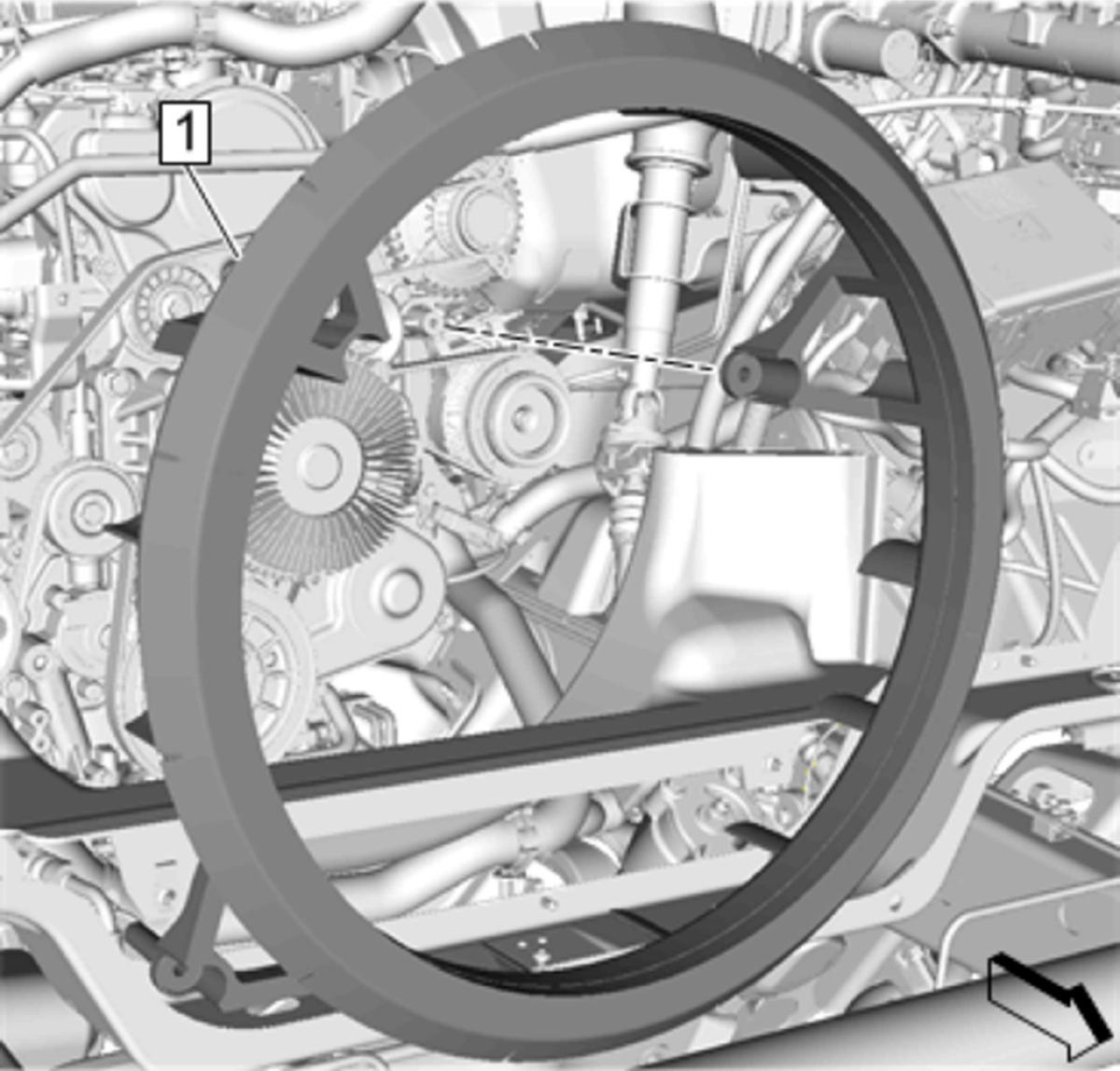

  9. GM4600116Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Fan Rear Shroud (1) - Install - Engine Coolant Fan Rear Shroud Replacement (LWN)Engine Coolant Fan Rear Shroud Replacement (LV1)

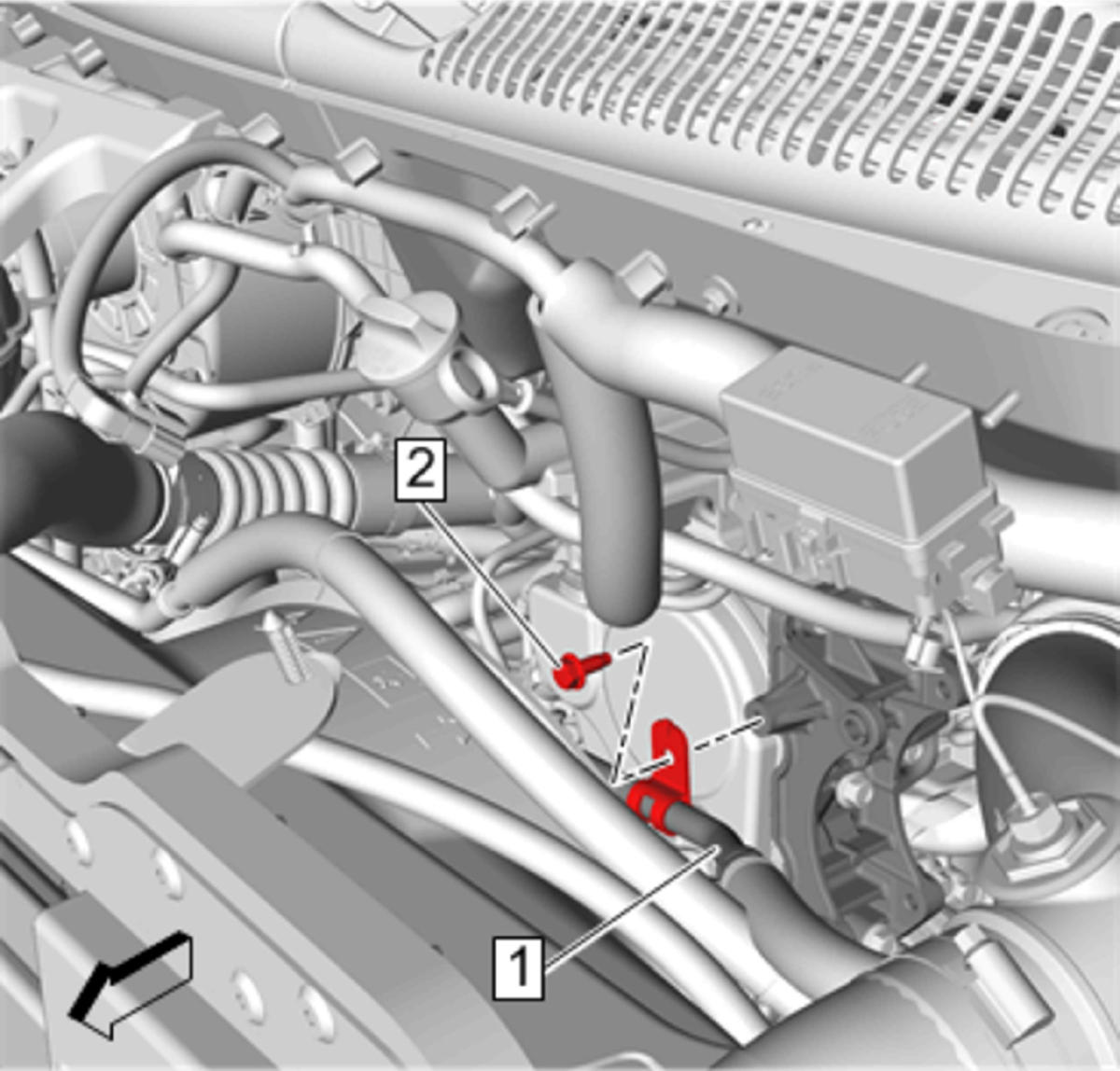

  10. GM4605011Courtesy of GENERAL MOTORS COMPANY

    Power Steering Fluid Reservoir Outlet Hose(1) - Install - Power Steering Fluid Reservoir Outlet Hose Replacement (With LWN)Power Steering Fluid Reservoir Outlet Hose Replacement (Without LWN)

  11. GM4601582Courtesy of GENERAL MOTORS COMPANY

    Generator(3) - Install - Generator Replacement (LWN) Generator Replacement (L96, LC8) Generator Replacement (LV1 with K68) Generator Replacement (LV1 with KW5/KG4)
