Battery Tray Replacement

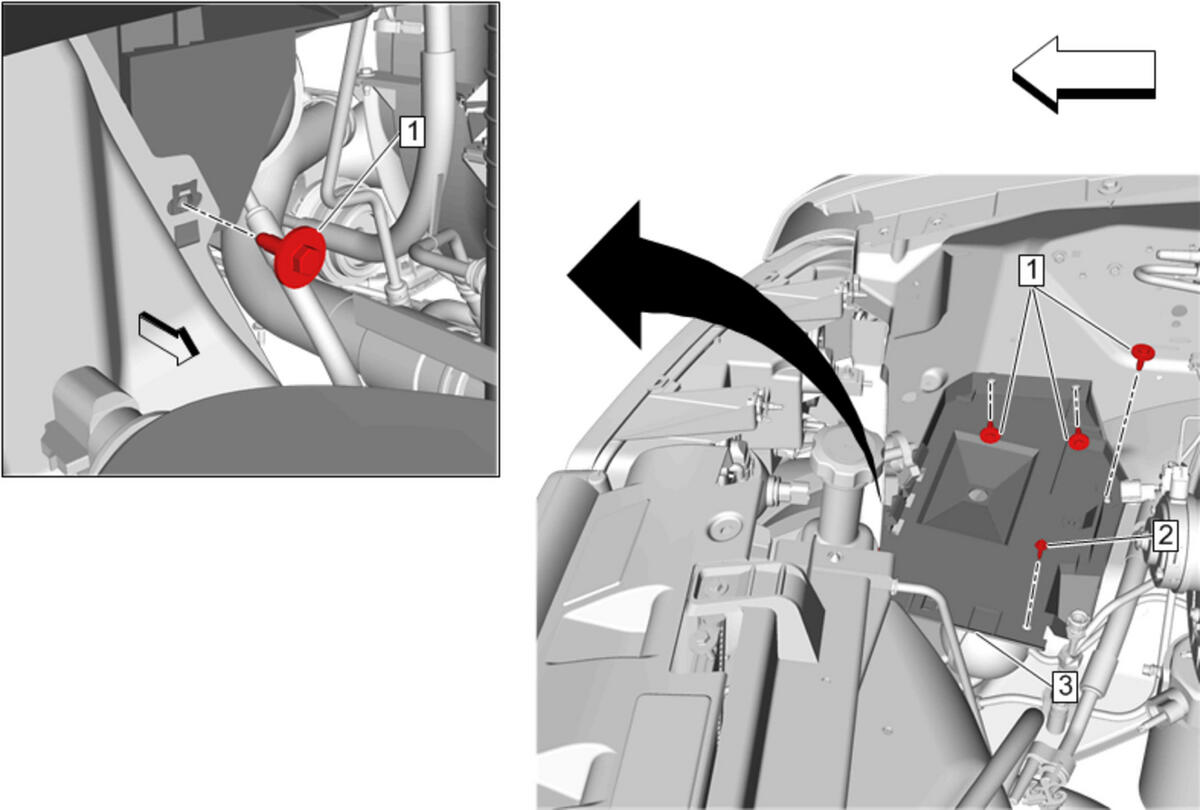

GM4597862Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Battery Replacement (L96, LC8, LV1) Battery Replacement (LWN)
  2. Disconnect any harness retainers attached to the battery tray.
1 Battery Tray Mounting Bolt[4x]
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Heater and Air Conditioning Control Vacuum Tank Bolt
Tighten
3.3 N.m (29 lb in)
3 Battery Tray
