Installation Procedure

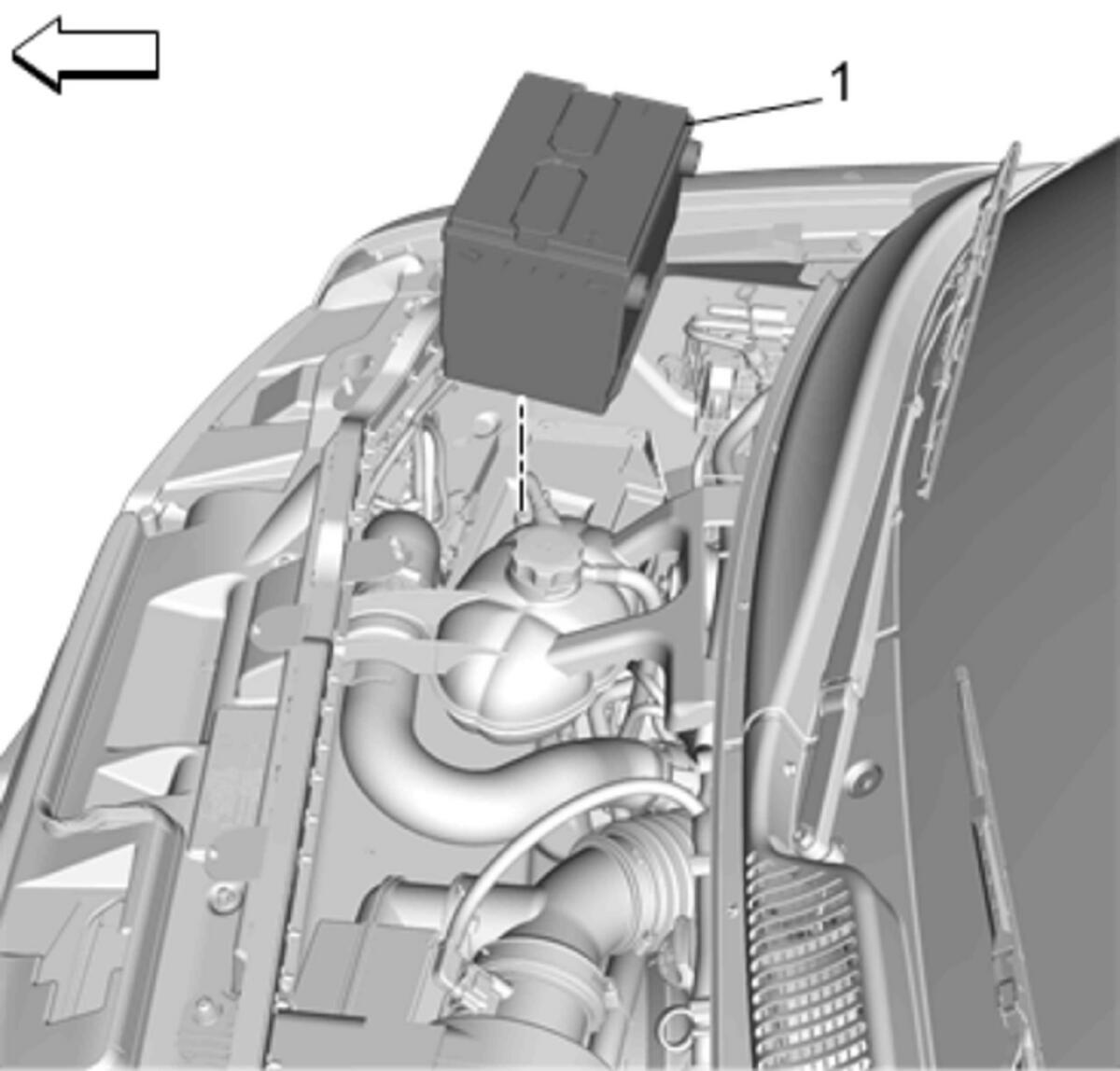

  1. GM4597853Courtesy of GENERAL MOTORS COMPANY

    Battery(1) - Install

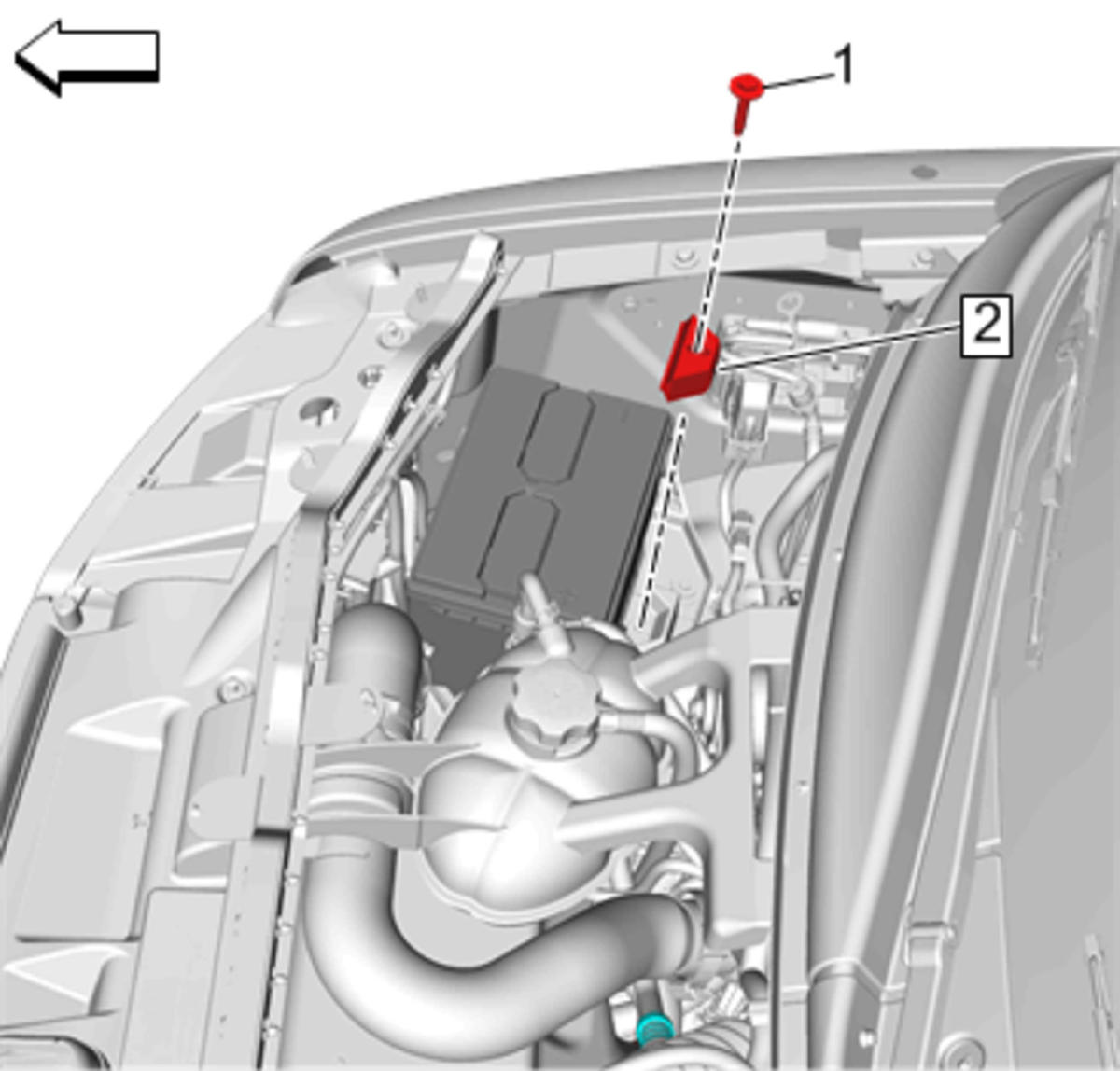

  2. GM4597852Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Retainer(2) - Install

    3. CAUTION:

    Refer to Fastener Caution

  3. Battery Hold Down Bolt(1) - Install and tighten22 N.m (16 lb ft)

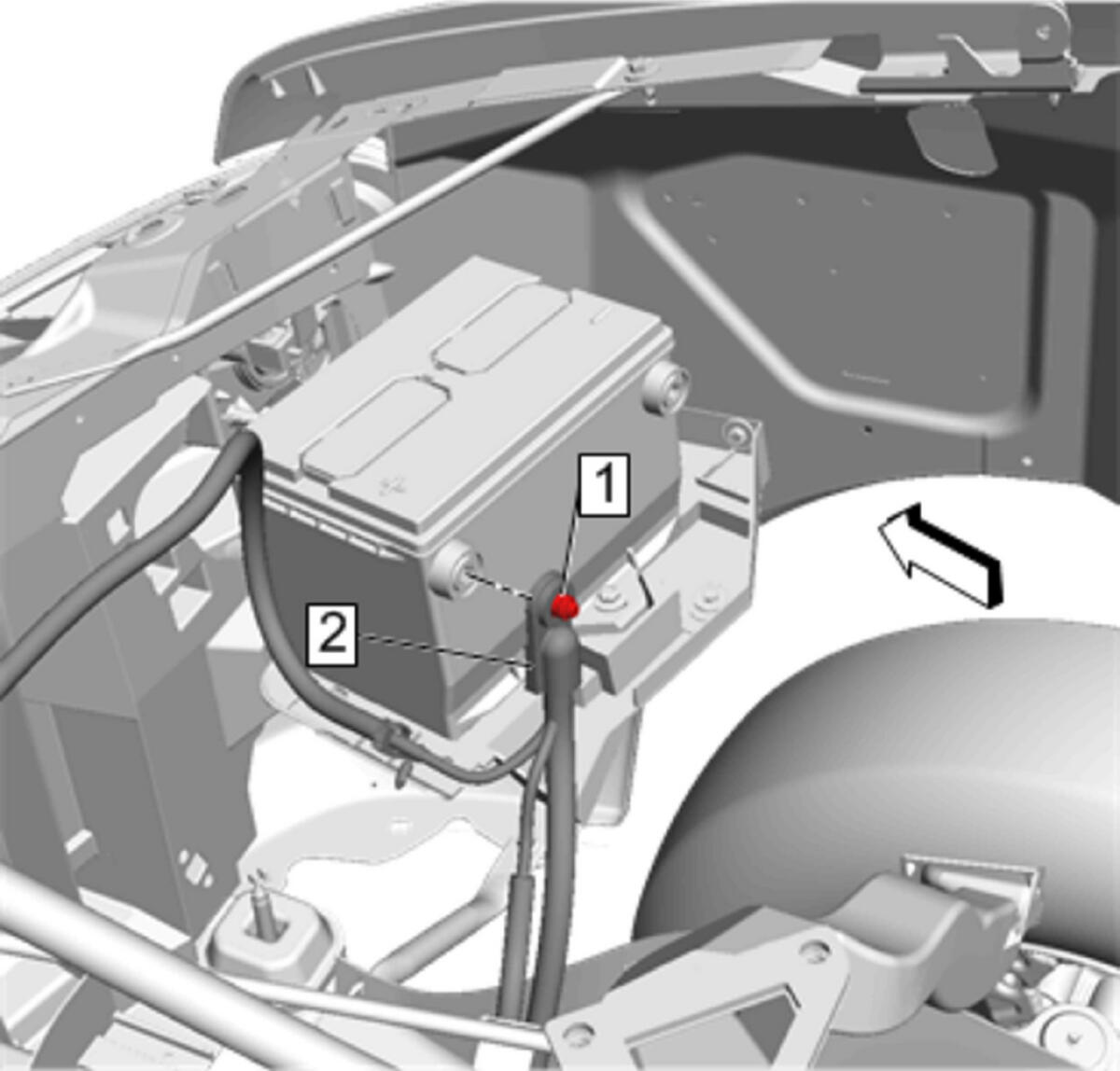

  4. GM4527822Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable(2) - Install

  5. Battery Positive Cable Bolt(1) - Tighten14 N.m (124 lb in)
  6. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Single Battery) Battery Negative Cable Disconnection and Connection (Dual Battery)

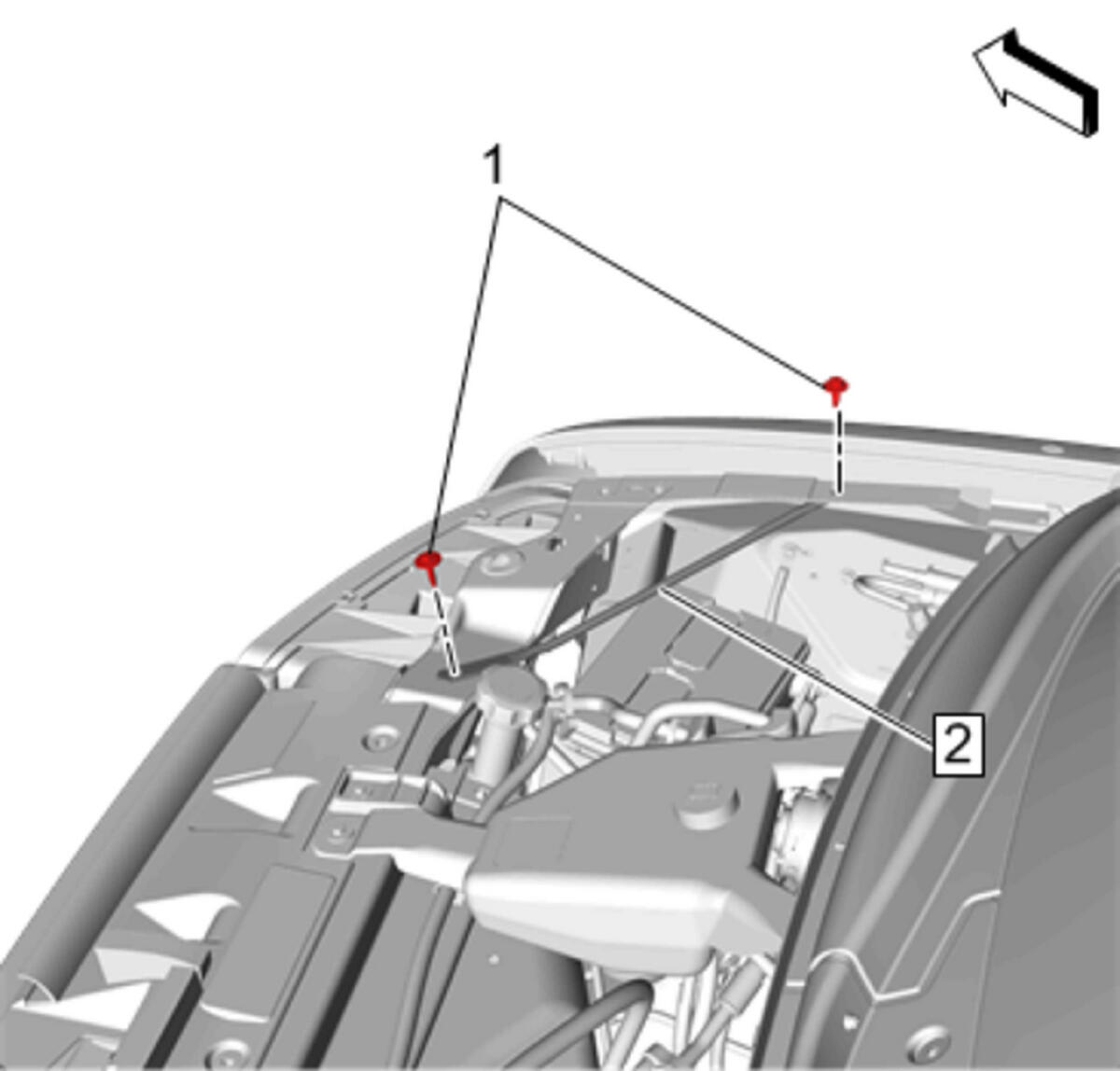

  7. GM4597509Courtesy of GENERAL MOTORS COMPANY

    Front End Sheet Metal Diagonal Brace Reinforcement(2) - Install

  8. Front End Sheet Metal Diagonal Brace Bolt(1) - Install and tighten[2x]22 N.m (16 lb ft)
