Installation Procedure

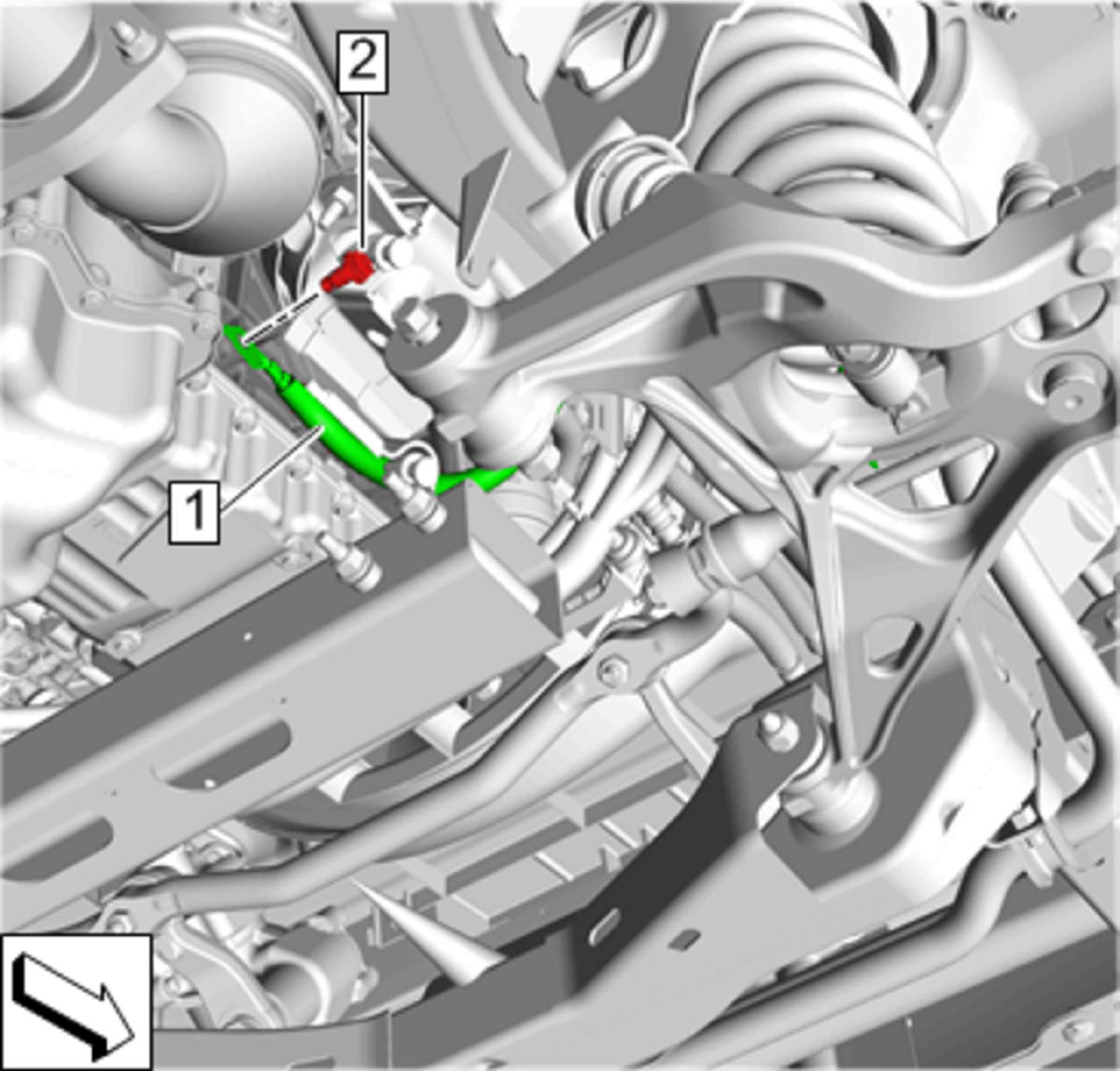

  1. GM4592749Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable(1) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Negative Cable Ground Fastener(2) - Install and tighten50 N.m (37 lb ft)

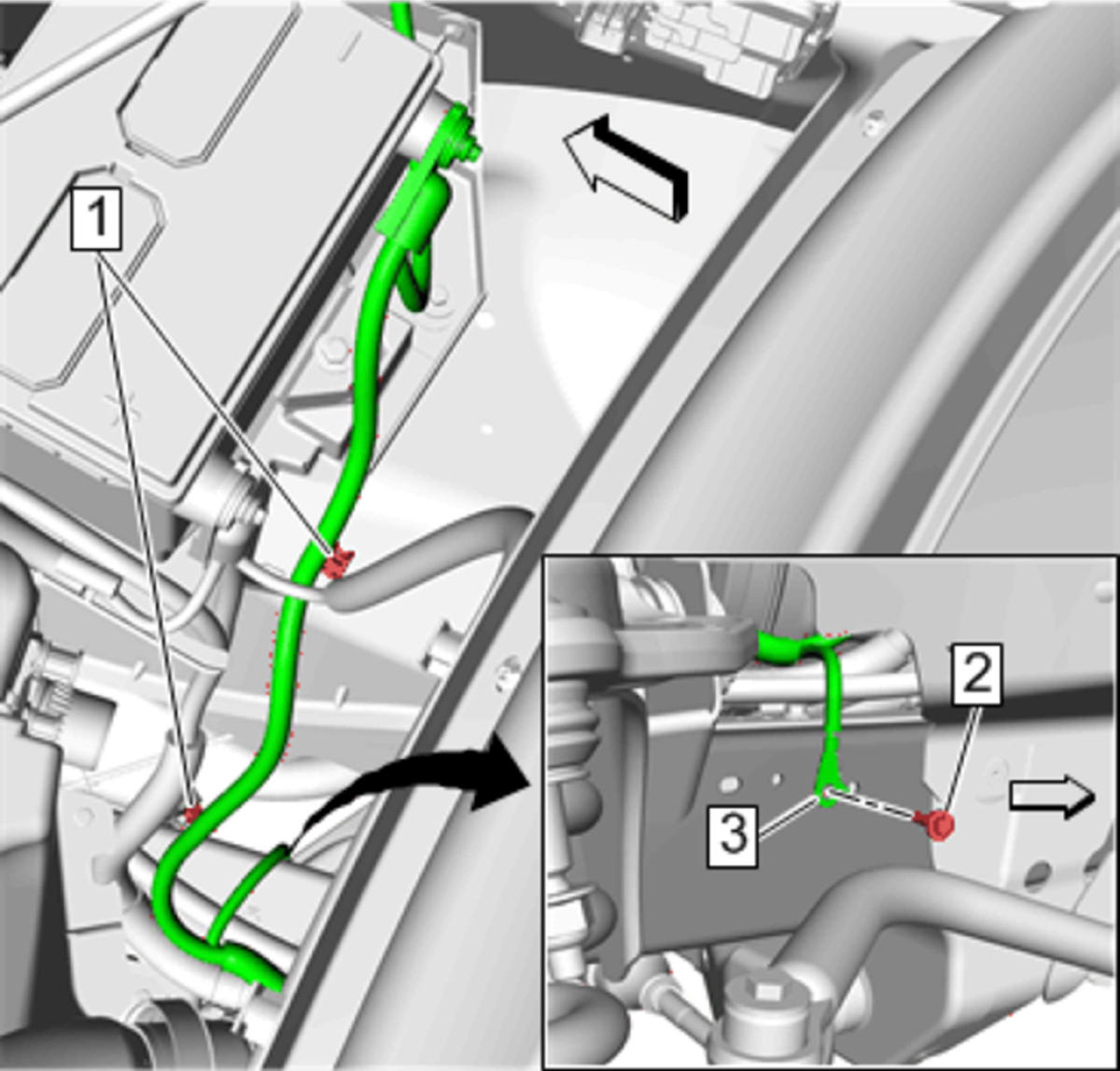

  3. GM4592748Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable(3) - Install

  4. Battery Negative Cable Frame Ground Fastener(2) - Install and tighten10 N.m (89 lb in)
  5. Lower the vehicle.
  6. Retainer(1) - Engage[2x]

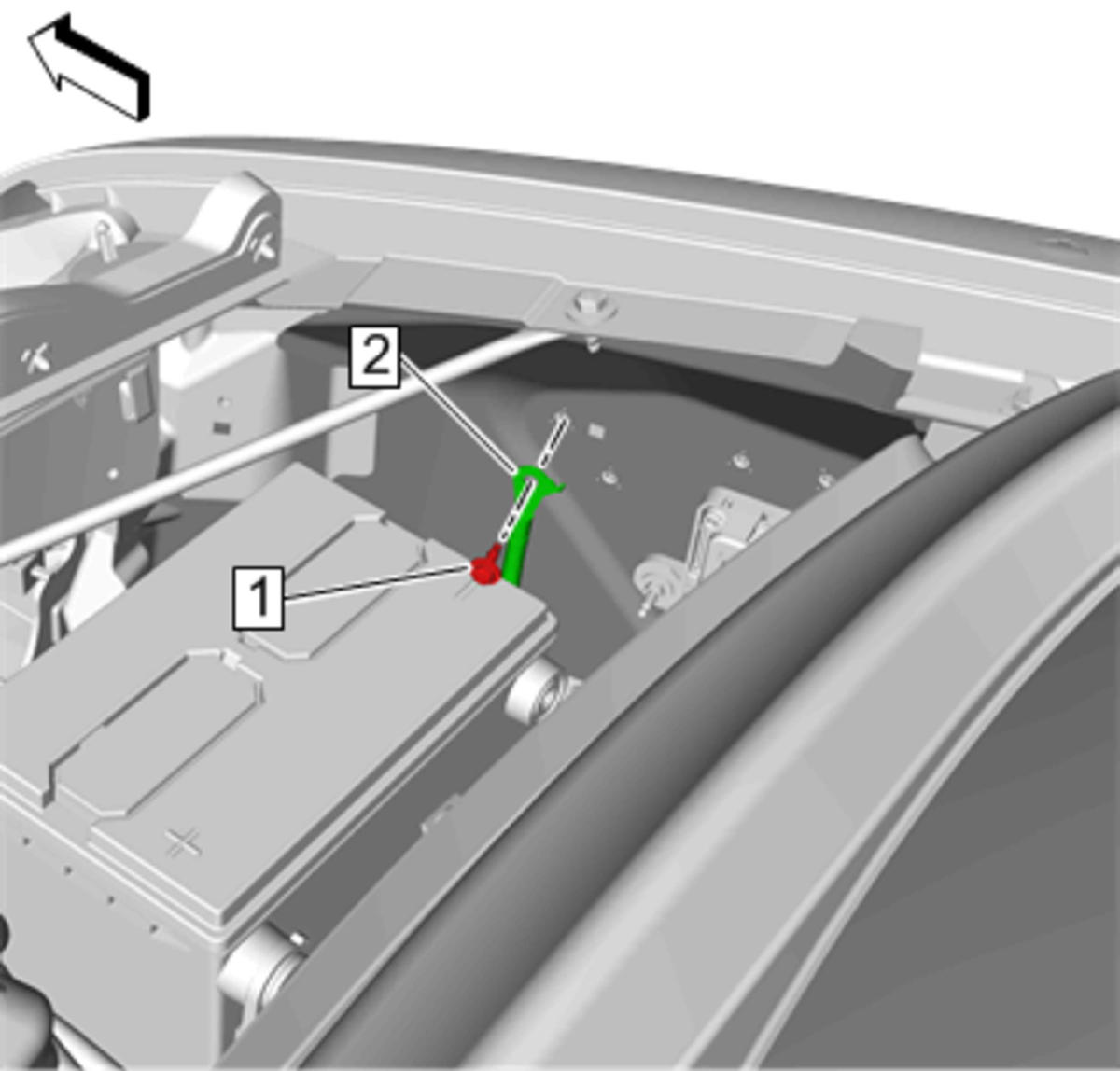

  7. GM4592747Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable(2) - Install

  8. Battery Negative Cable Ground Fastener(1) - Install and tighten10 N.m (89 lb in)
  9. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Single Battery) Battery Negative Cable Disconnection and Connection (Dual Battery)
