Installation Procedure

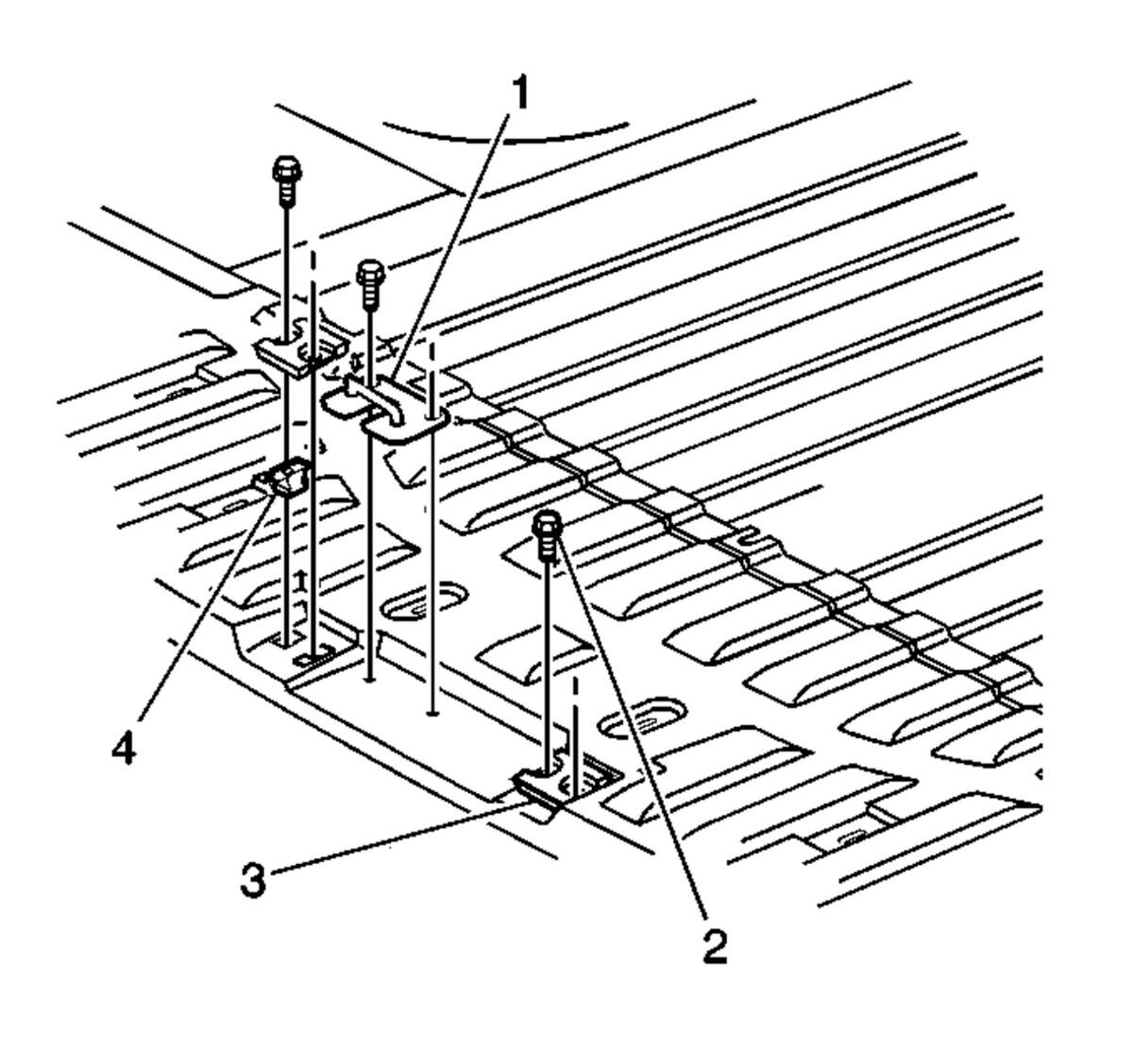

  1. GM334090Courtesy of GENERAL MOTORS COMPANY

    Install the rear door lower striker (1) to the floor panel.

    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the rear door lower striker bolts in order to retain the rear door lower striker (1) to the floor panel and tighten to 10 N.m (89 lb in).
