Installation Procedure

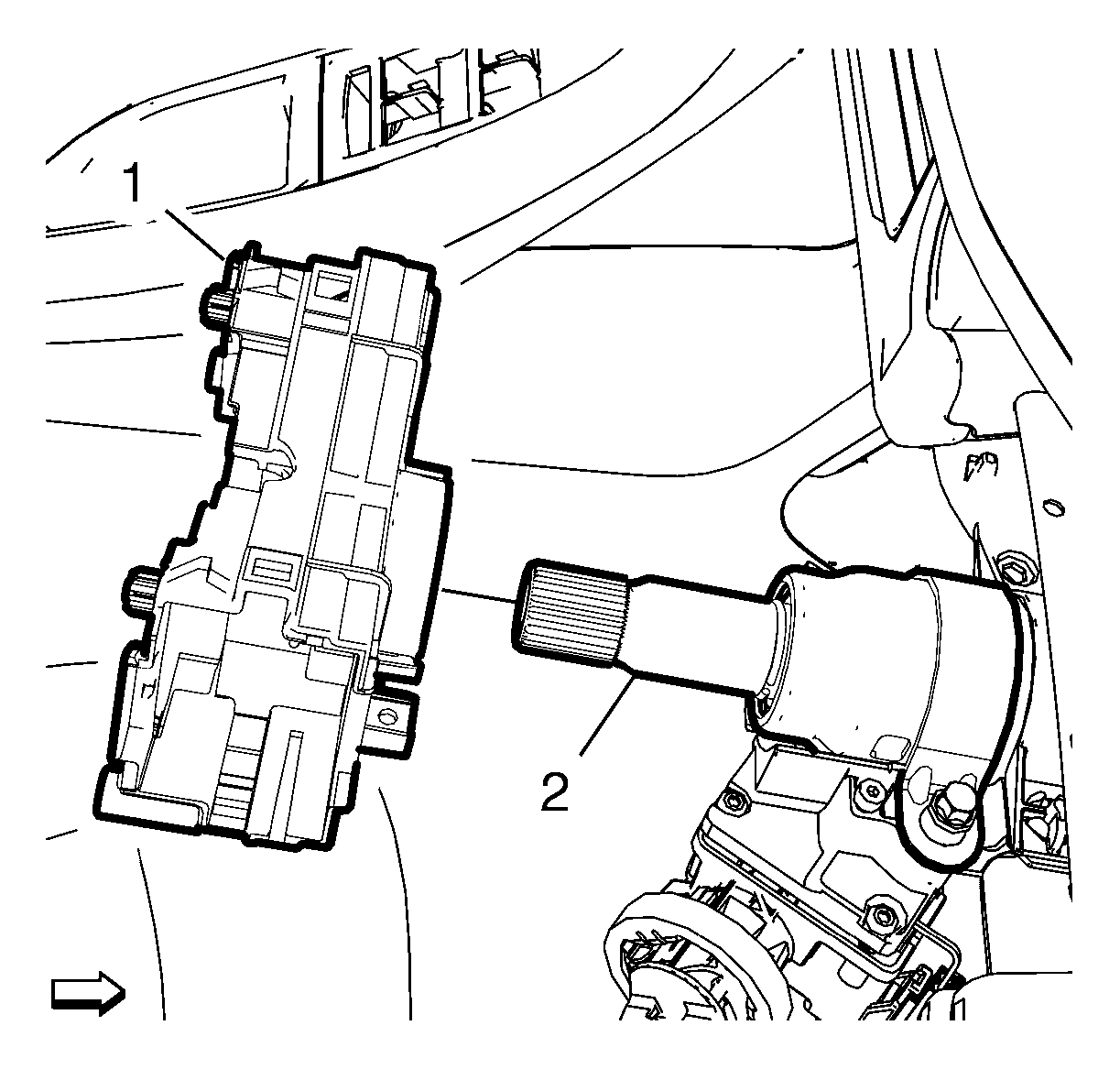

  1. GM3701748Courtesy of GENERAL MOTORS COMPANY

    Turn Signal Switch Bracket (1) @ Steering Column (2) - Install - Install until the tabs snap in

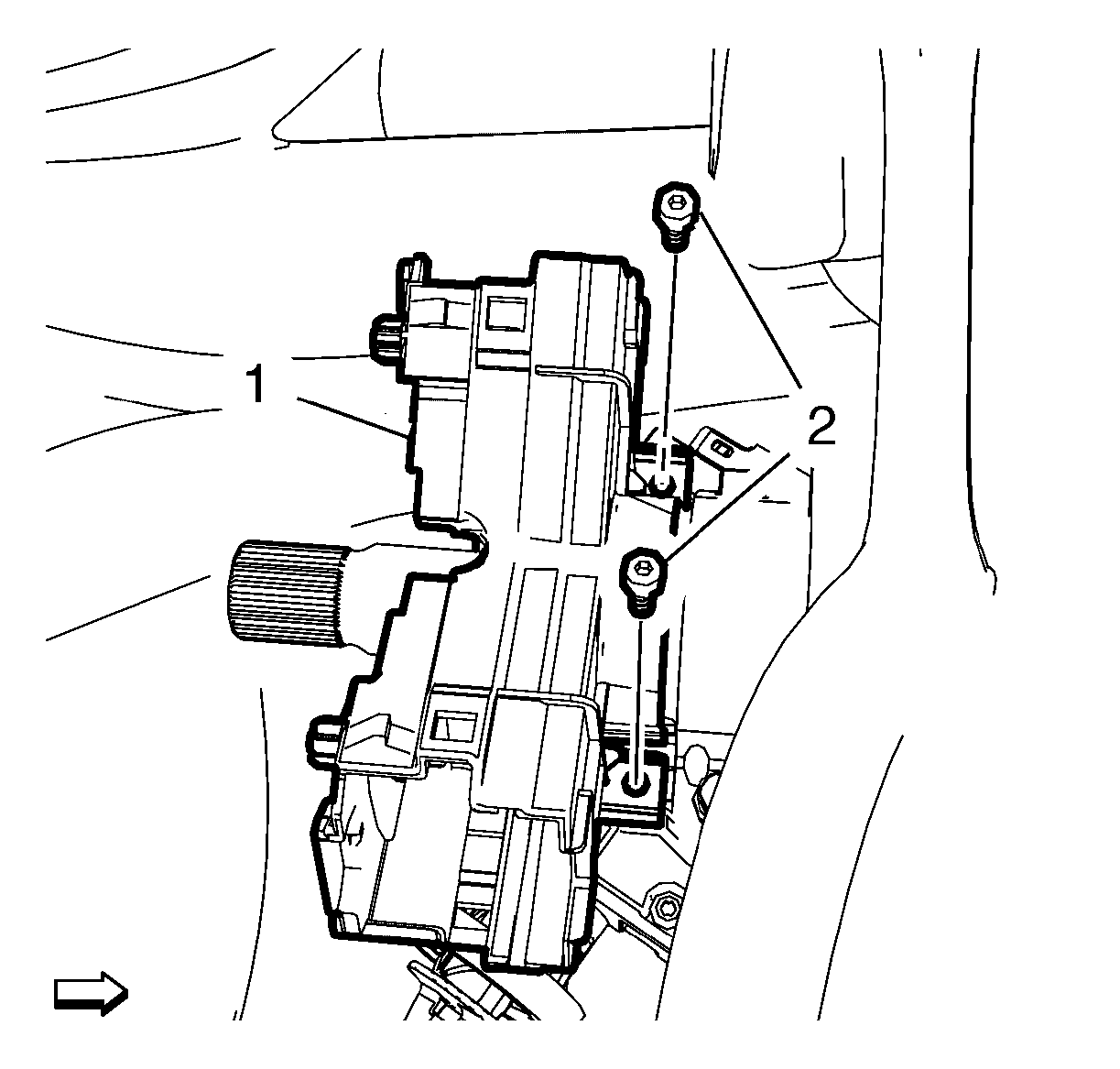

  2. GM3701747Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Bolt (2) @ Turn Signal Switch Bracket (1) - Install and tighten [2x] 2.35 N.m (21 lb in)

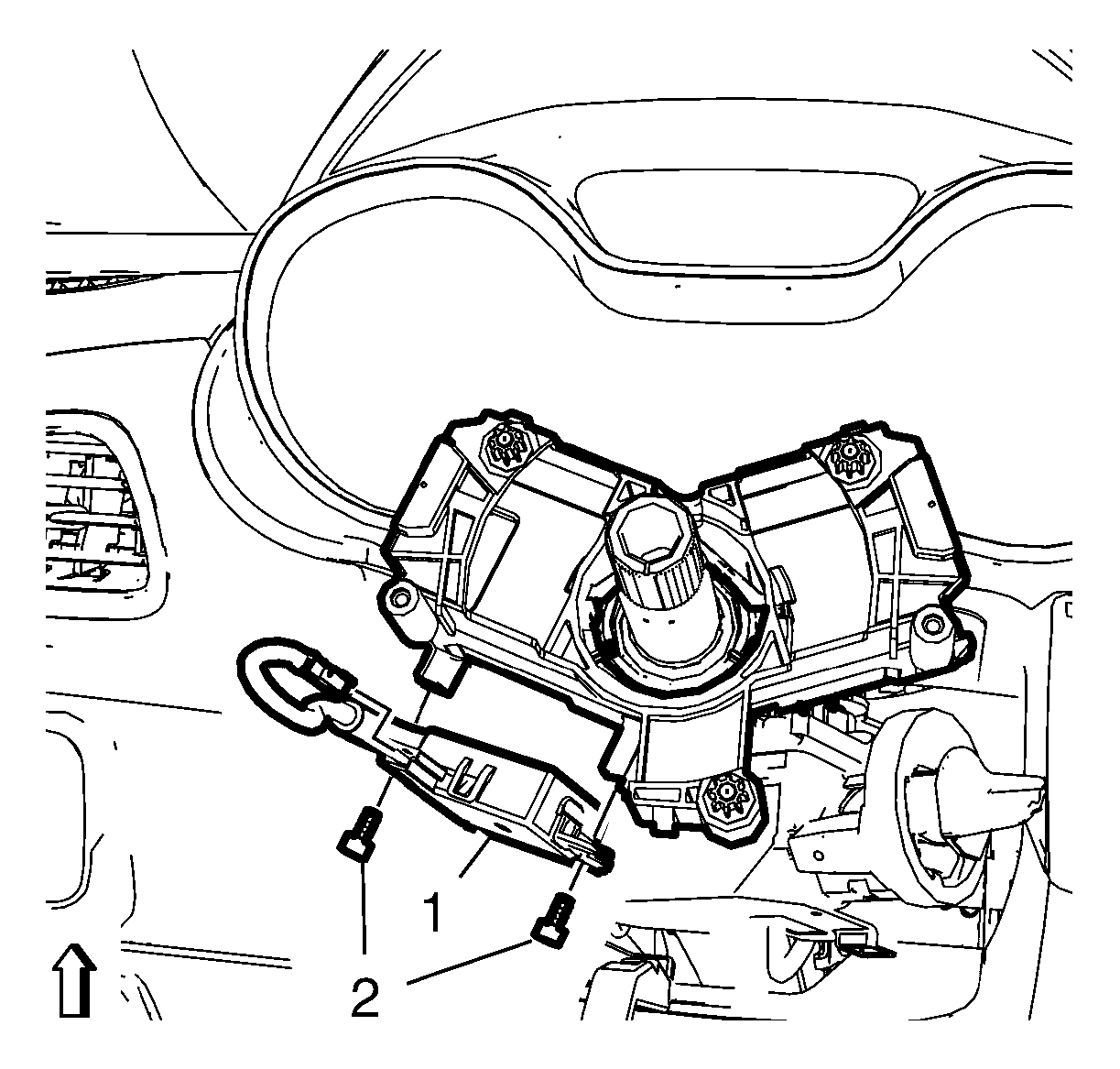

  3. GM3701746Courtesy of GENERAL MOTORS COMPANY

    Theft Deterrent Module (1) - Install

  4. Bolt (2) - Install and tighten [2x] 0.8 N.m (7 lb in)
  5. Windshield Wiper and Windshield Washer Switch Replacement - Install
  6. Turn Signal Switch Replacement  - Install
  7. Steering Wheel Airbag Coil Replacement - Install
  8. Steering Column Lower Trim Cover Replacement  - Install
  9. Steering Column Upper Trim Cover Replacement  - Install
  10. Steering Wheel Replacement  - Install
