Removal Procedure

CAUTION:

Once the steering column is removed from the car, the column is extremely susceptible to damage. Dropping the column on its end could collapse the steering shaft or loosen the plastic injections which maintain column rigidity. Leaning on the column could cause the jacket to bend or deform. Any of the above damage could impair the column's collapsible design. If it is necessary to remove the steering wheel, use only the specified steering wheel puller. Under no conditions should the end of the shaft be hammered upon as hammering could loosen plastic injections which maintain column rigidity.

  1. Instrument Panel Knee Bolster Replacement - Remove
  2. Steering Column Upper Trim Cover Replacement  - Remove
  3. Turn Signal Switch Bracket Replacement  - Remove
  4. Ignition and Start Switch Housing Replacement - Remove
  5. Instrument Panel Lower Airbag Replacement - Driver Side - Remove
  6. Floor Front Air Outlet Duct Replacement - Left Side - Remove

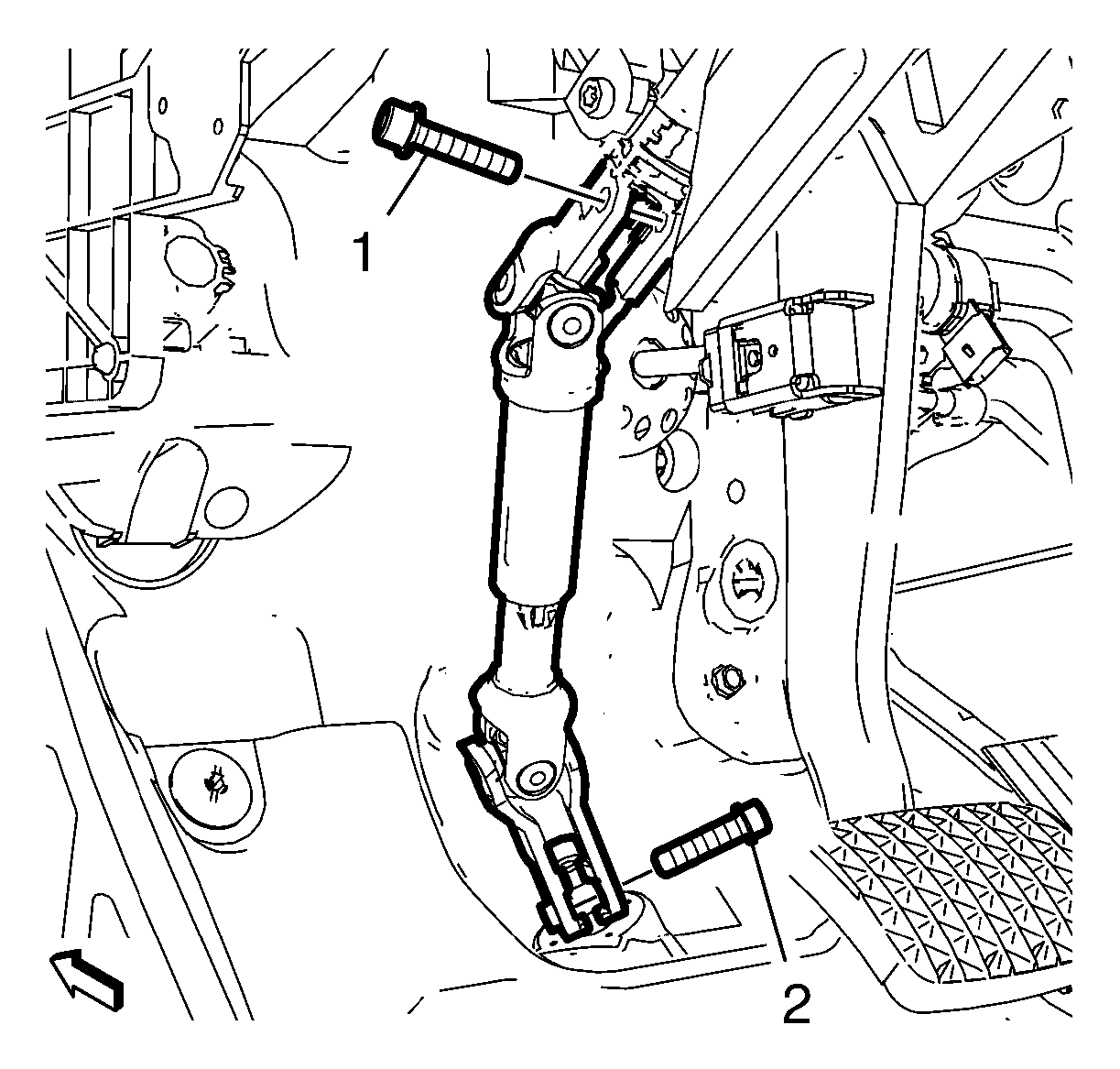

  7. GM3665669Courtesy of GENERAL MOTORS COMPANY

    Intermediate Steering Shaft Upper Bolt (1) - Remove

  8. Disconnect the upper intermediate steering shaft from the steering column.
  9. Disconnect the steering column electrical connectors as necessary.
  10. GM3665679Courtesy of GENERAL MOTORS COMPANY

    Steering Column Nut (2) - Remove and DISCARD [4x]

  11. Steering Column (1) - Remove

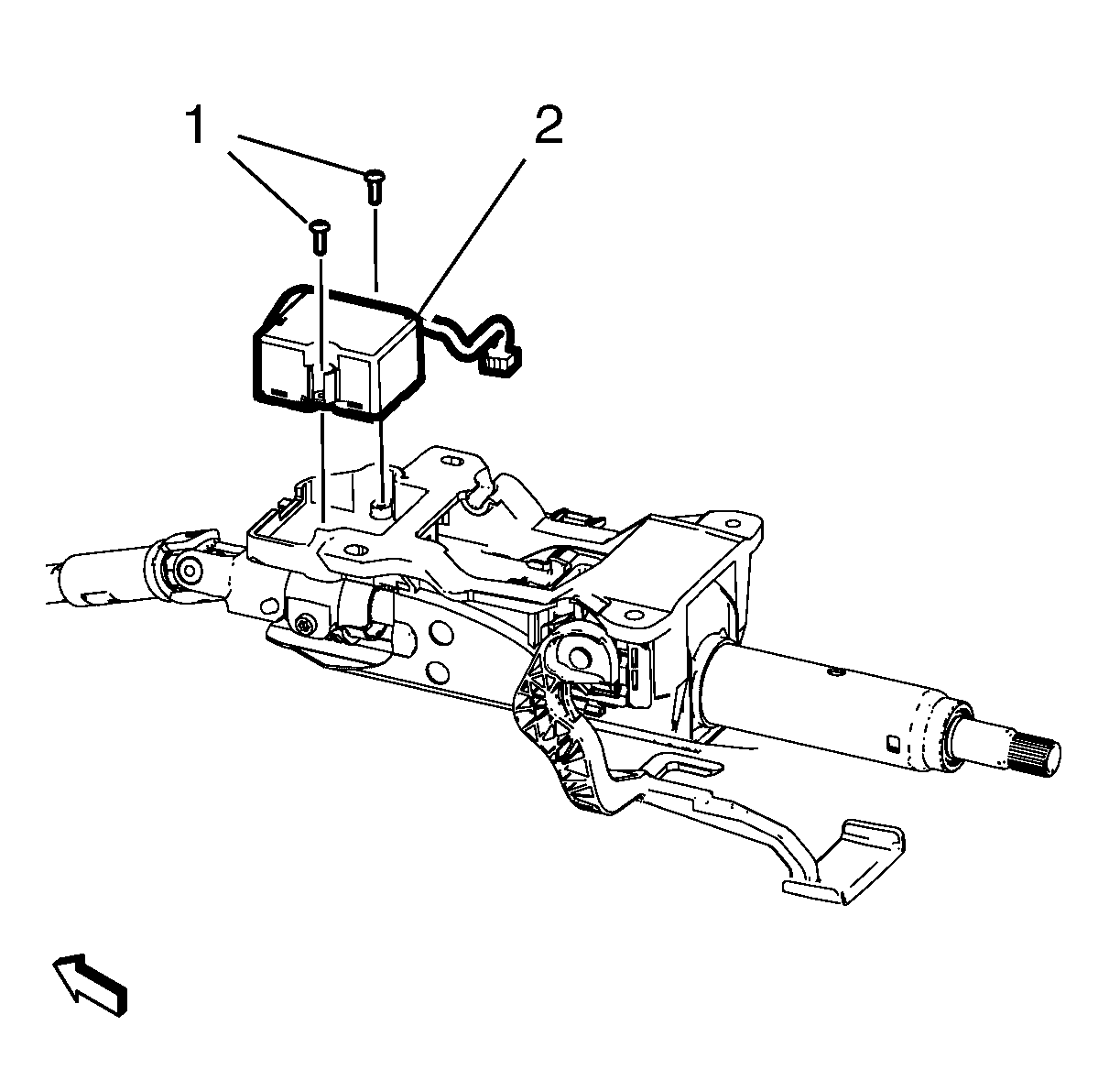

  12. GM3707207Courtesy of GENERAL MOTORS COMPANY

    {If equipped} Bolt (1) @ Steering Column Lock Control Module - Remove [2x]

  13. {If equipped} Steering Column Lock Control Module (2) - Remove
