Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Multifunction Power Supply Converter (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Fuel Pump Power Control Module Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (2) - Connect
Electrical Connector (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors. (1)
Courtesy of GENERAL MOTORS COMPANY

Install the battery positive cable terminal (1).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

Battery Positive Cable (1) - Install
Battery Positive Cable Bolt (2) - Install and tighten 15N.m (11 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable Terminal Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

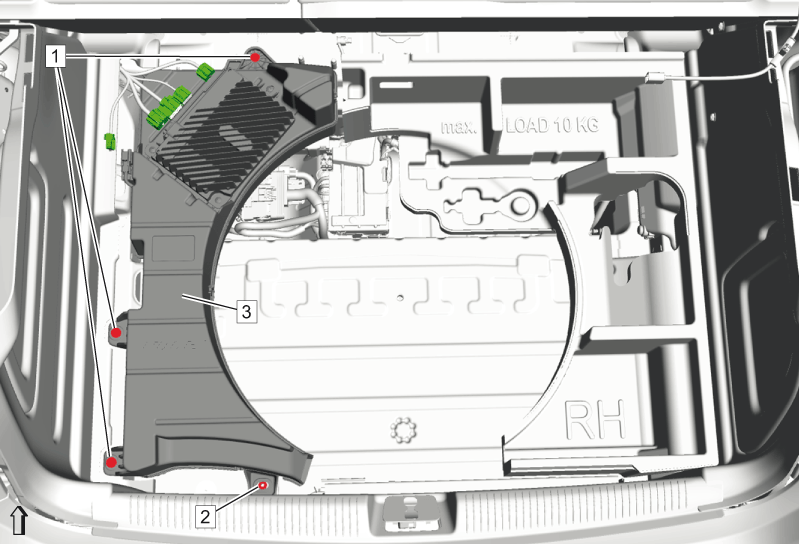

Radio Rear Compartment Speaker (3) - Install - Radio Rear Compartment Speaker Replacement
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
