Rear Compartment Lid Latch Replacement

Courtesy of GENERAL MOTORS COMPANY

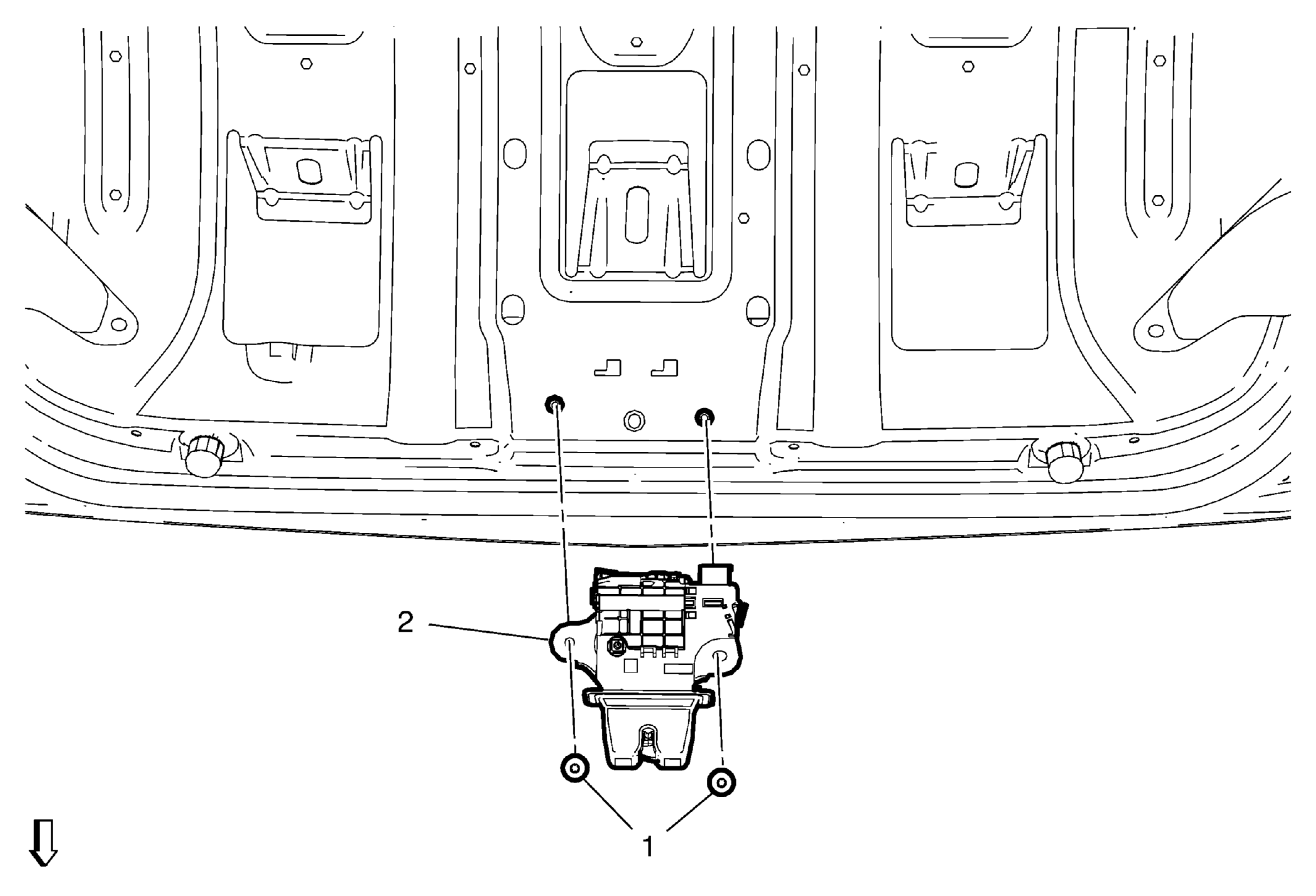

Callout	Component Name
Preliminary Procedure  Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Rear Compartment Lid Latch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Rear Compartment Lid Latch
