Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Cable (1) @ Front Side Door Latch (3) - Install
Front Side Door Inside Handle Cable (4) @ Front Side Door Latch (3) - Install
Front Side Door Lock Cylinder Rod (2) @ Front Side Door Latch (3) - Install
Install the front side door latch with front side door outside handle bracket to the front side door.
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) - Install @ Front Side Door Outside Handle Bracket
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

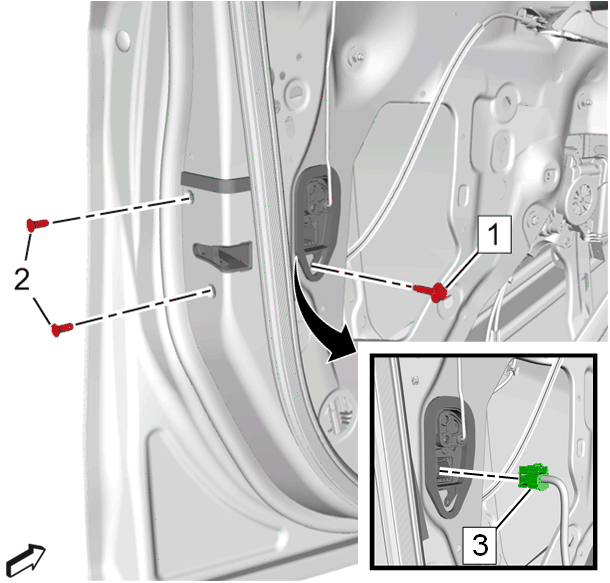

Install the 3 front side door latch bolts (1, 2) and tighten to 9 N.m (80 lb in)
Connect the electrical connector. (3)
Courtesy of GENERAL MOTORS COMPANY

Install the front side door outside handle bracket bolt and tighten to 4.7 N.m (42 lb in).
Front Side Door Window Regulator Replacement - Install
Front Side Door Outside Handle Replacement (without Keyless Entry) Front Side Door Outside Handle Replacement (with Keyless Entry) - Install
