Removal Procedure

  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection

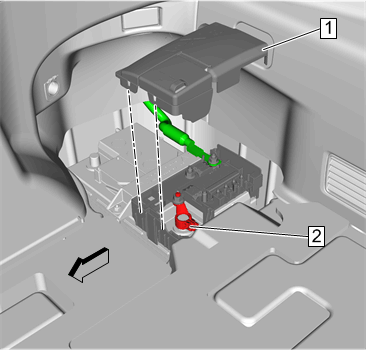

  2. GM4871107Courtesy of GENERAL MOTORS COMPANY

    Power Distributor Fuse Block Cover (1) - Remove

  3. Battery Positive Post Clamp Nut (2) - Loosen

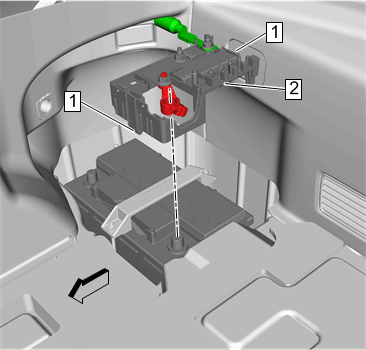

  4. GM4871131Courtesy of GENERAL MOTORS COMPANY

    Retaining Tab (1) - Disengage [2x]

  5. Rear Body Fuse Block (2) - Reposition away

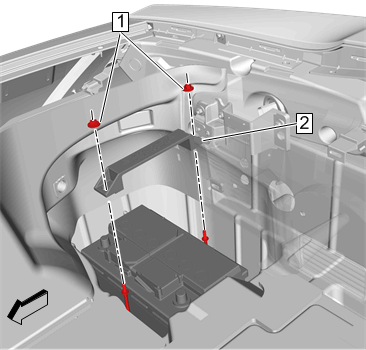

  6. GM4871142Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Retainer Nut (1) - Remove [2x]

  7. Battery Hold Down Retainer (2) - Remove

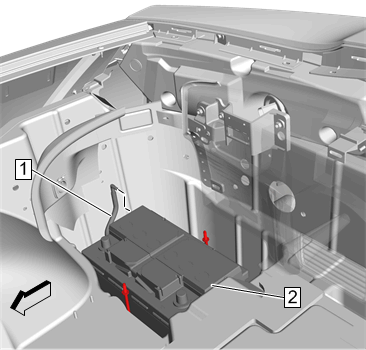

  8. GM4871147Courtesy of GENERAL MOTORS COMPANY

    Battery Vent Hose (1) - Remove

  9. Battery (2) - Remove
